3.5.3 Tilt protection
Mount onto a wall the device with the tilt protection pre-assembled on the back:
1. Remove the screw right at the bottom from the tilt protection (Fig. 15).
2. Turn the tilt protection upwards by 90° twice (Fig. 14).
3. Drill a hole, insert a dowel and screw the tilt protection to a suitable wall (Fig. 16).

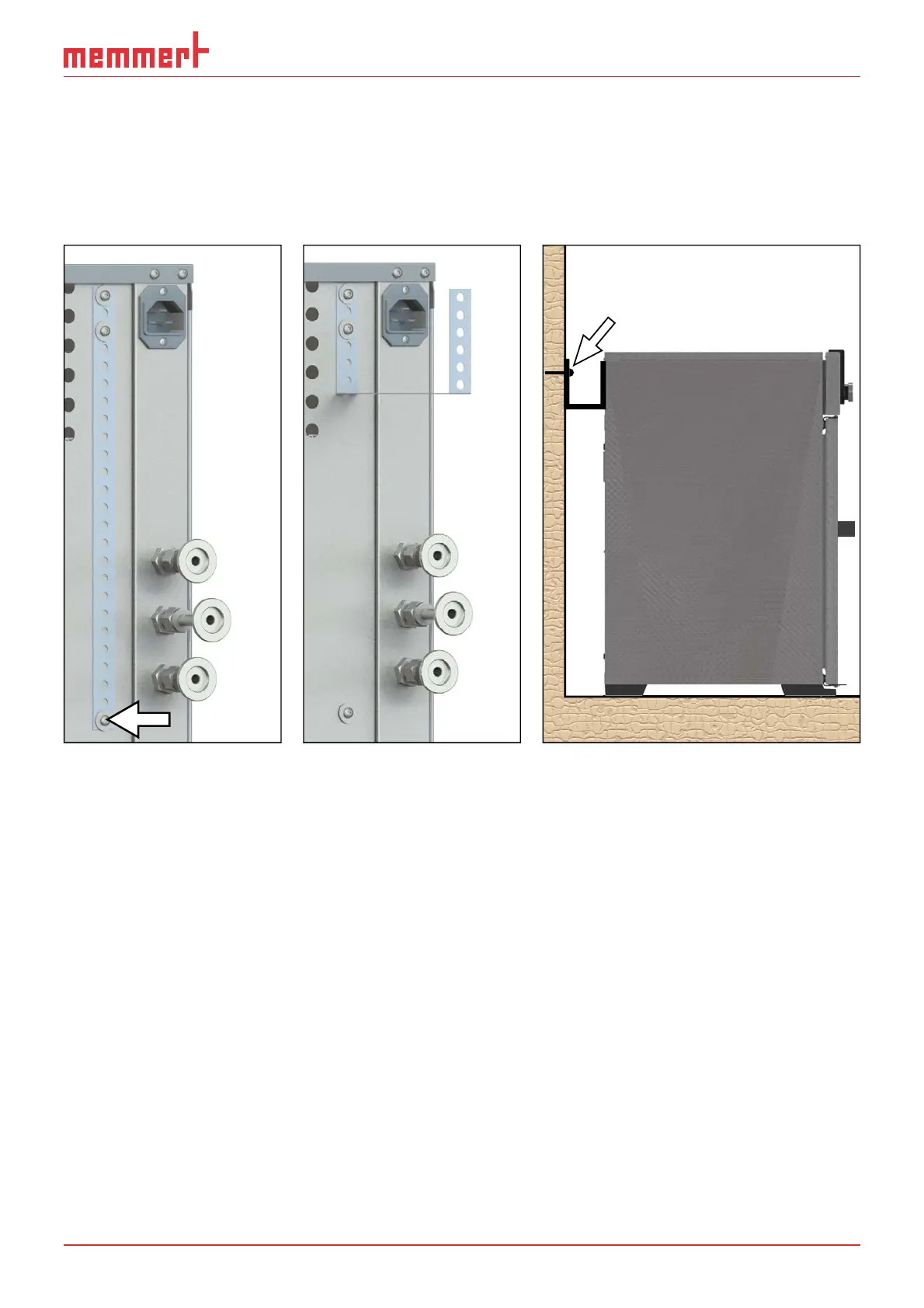

Fig. 14 Remove the
screw right at the bottom
from the tilt protection
Fig. 15 Turn the tilt
protection upwards
Fig. 16 Screw the tilt protection
onto the wall
