11
ENGLISH
UHF/VHF
OUT(TV)
IN(ANT)
VIDEO
OUT IN
3
CH
4
AUDIO
L
R
6
12
45
3

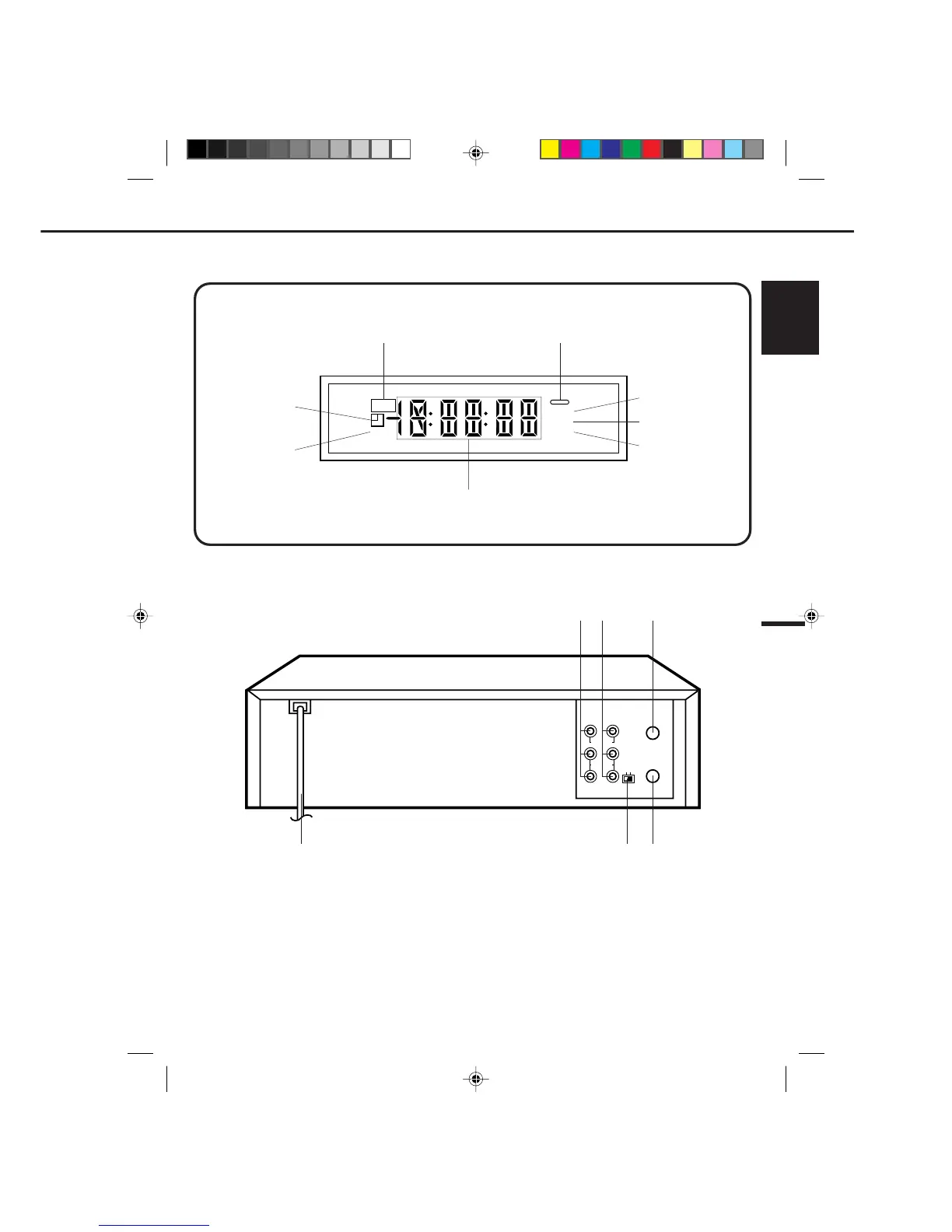

DESCRIPTION OF CONTROLS
AUDIO/VIDEO OUT Jacks - Used to output audio
and video signals to a TV, amplifier or VCR.
AUDIO/VIDEO IN Jacks - Audio and video signal
cables from an external source can be connected
hear
VHF/UHF IN (ANT) Jack - Connect a VHF/UHF
antenna or CATV cable to this jack.
1.
2.
3.
4.
5.
6.
VHF/UHF OUT (TV) Jack - Used to output VHF/
UHF or CATV signals to a TV.
3/4 Channel Selector Switch - Selects the channel
through which the VCR outputs its signal to a TV.
AC Power Cord - Connect to a 120V 60Hz outlet.
REAR
LOCATION OF CONNECTORS
FLUORESCENT DISPLAY
OTR
SLP
VCR
ATR
APM
One Touch Timer
Recording
POWER indicator
Timer Record
Tape Speed
ATR (Auto Tracking)
VCR
AM/PM
Multi-Function Display
