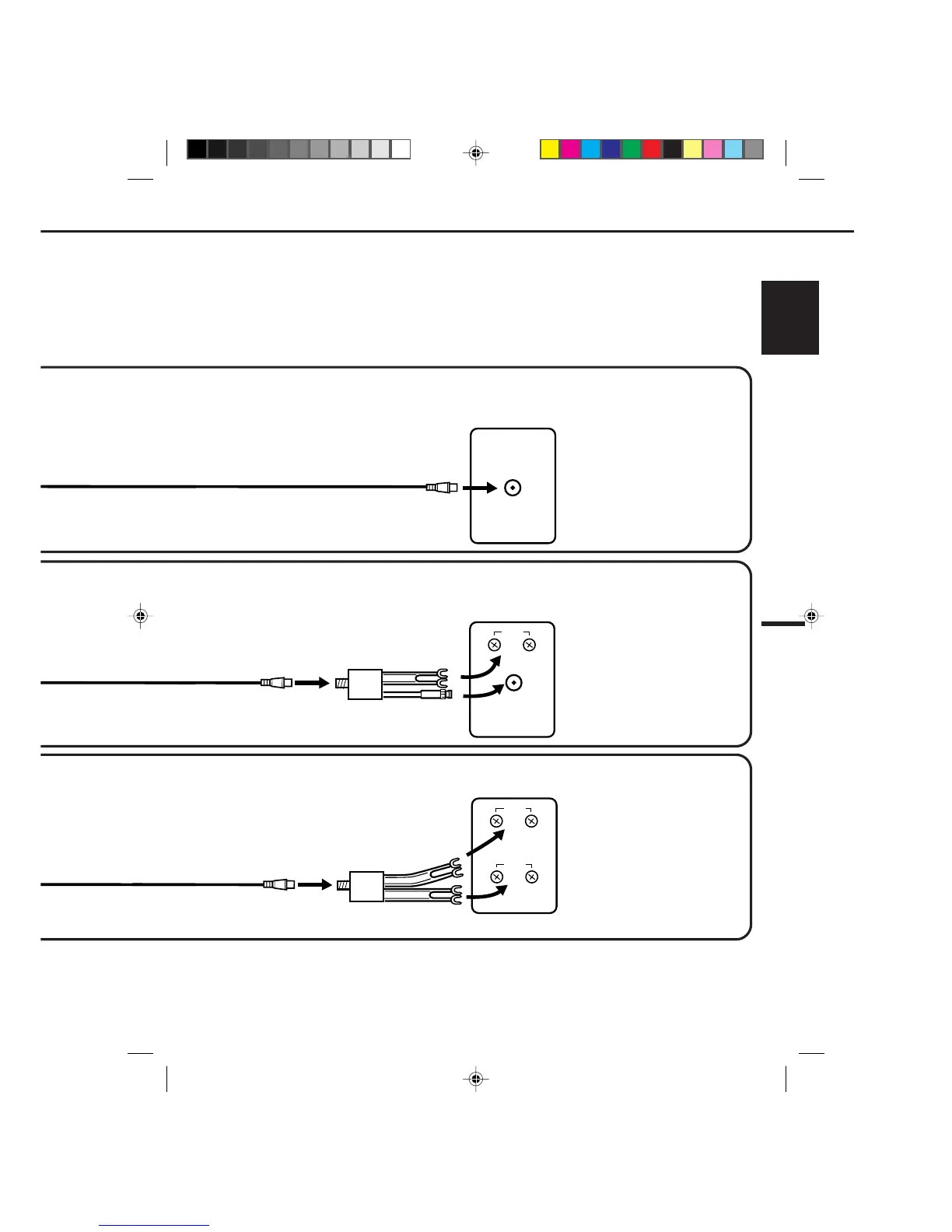

This VCR has a single 75 ohm output for connection to a TV. If your TV has separate VHF and UHF antenna
inputs (numbers 2 and 3 below), use a splitter to connect the VCR to the TV for VHF and UHF reception.
NOTE: IF A VHF OR UHF
ANTENNA IS USED, SET
THE TV/CATV MENU
OPTION TO THE "TV"
MODE.
TV with single 75 ohm
VHF/UHF antenna input
TV with 300 ohm UHF
and 75 ohm VHF
antenna inputs
TV with 300 ohm UHF
and 300 ohm VHF
antenna inputs
SPLITTER
75 OHM INPUT
75/300 OHM OUTPUTS
(NOT SUPPLIED)
SPLITTER
75 OHM INPUT
300 OHM OUTPUTS
(NOT SUPPLIED)
TV
TV
TV
