85-03-00955 Page| 32

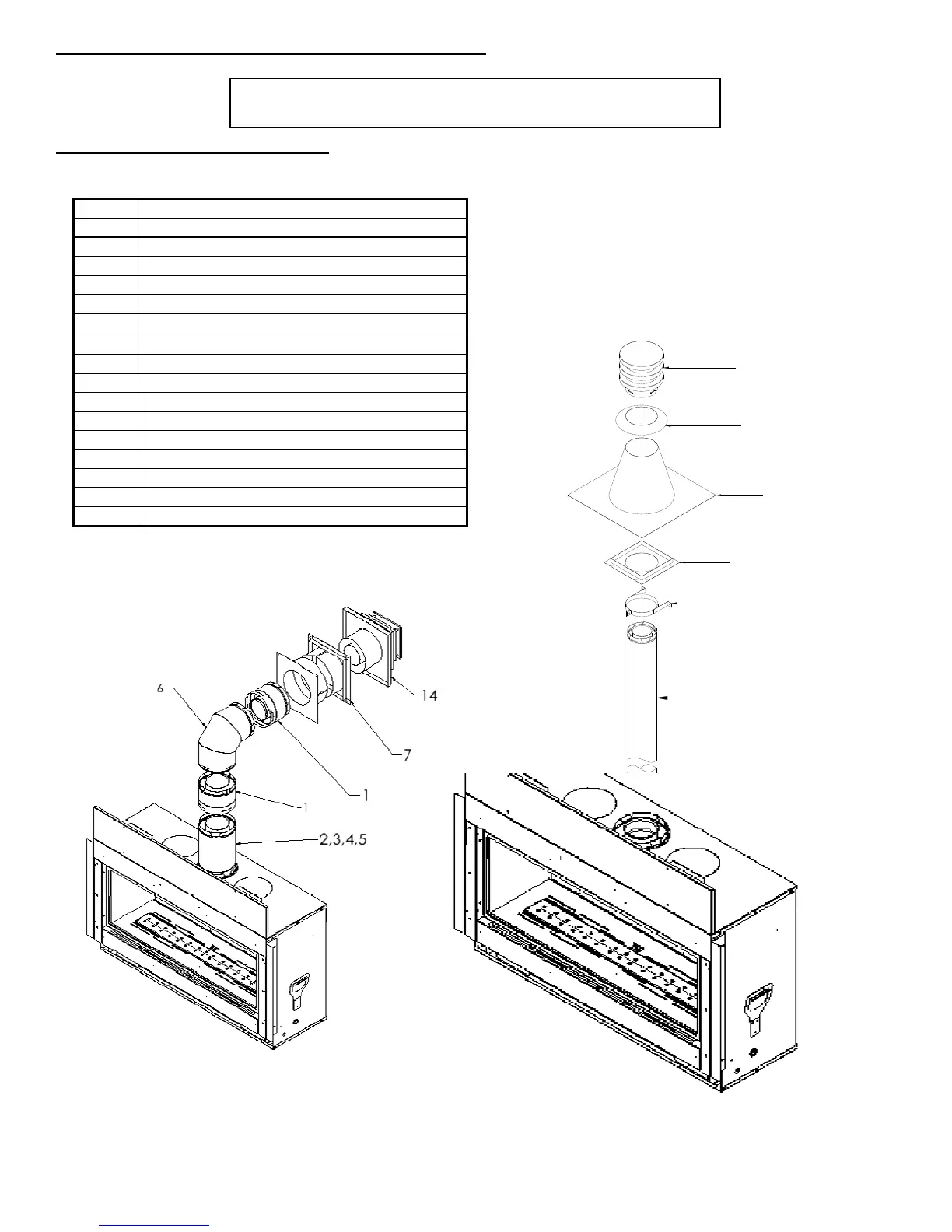

FLUE VENTING COMPONENTS IDENTIFICATION
High Altitude Installation Information
: Prior to installing at altitudes higher than 7500, please contact the Mendota tech-
nical service department for specific venting requirements and venting restrictions.
ITEM DESCRIPTION
1 6" or 7” PIPE (DuraVent 6”/Amerivent 7”)
2 12" VENT STACK
3 24" VENT STACK
4 36" VENT STACK
5 48" VENT STACK
6
90ºGALVANIZED ELBOW
45º GALVANIZED ELBOW
7 ADJUSTABLE WALL THIMBLE (not shown)
8 ATTIC INSULATION SHIELD 12"
9 ROOF FLASHING (0/12 TO 6/12)
10 ROOF FLASHING (7/12 TO 12/12)
11 STORM COLLAR
12 VERTICAL VENT CAP
13 SUPPORT BAND
14 HORIZONTAL VENT CAP
15 FIRE STOP SPACER
1,2,3,4,5
13
15
9,10
11
12
DO NOT SEPARATE TELESCOPING SECTIONS.
USE TELESCOPING SECTIONS AS COMPLETE ASSEMBLIES.
