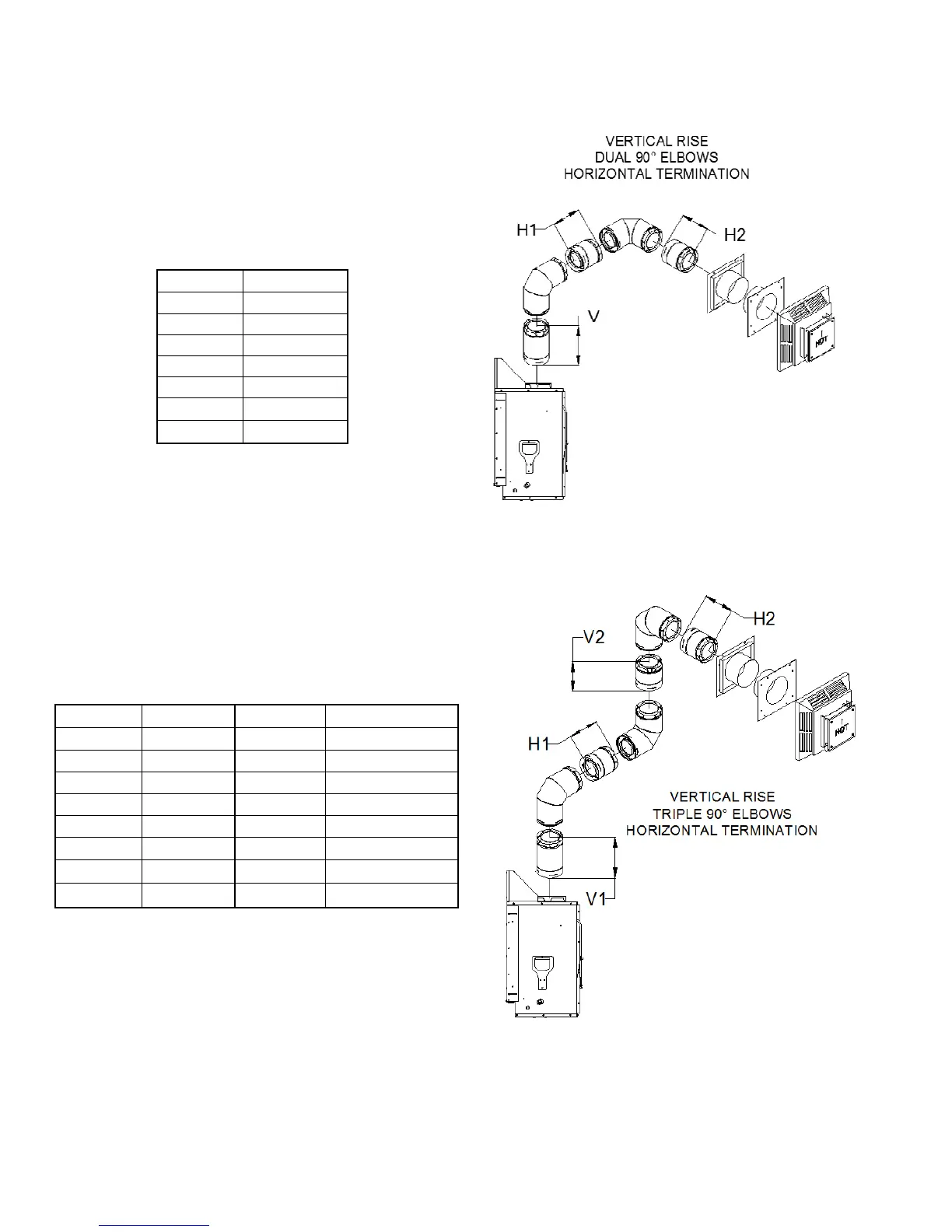

V min H1 +H2 max
24 in. 2 ft.
30 in. 9 ft.
36 in. 15 ft.
42 in. 21-1/2 ft.
48 in. 28 ft.
4 ft. - 10 ft. 28 ft.
10 ft. - 40 ft. Varies
V1 min H1 max
V2 max H2 max
18 in. 6 in.
36-1/2 ft. 42 ft – H1-V2
24 in. 6 ft.
32 ft. 42 ft – H1-V2
30 in. 13 ft.
27-1/2 ft. 42 ft – H1-V2
36 in. 19 ft.
20 ft. 42 ft – H1-V2
42 in. 25-1/2 ft.
6-1/2 ft. 42 ft – H1-V2
48 in. 32 ft.
10 ft. 42 ft – H1-V2
4 ft. - 10 ft. 32 ft.
Varies
10 ft. - 40 ft. Varies
Varies
