Installation Instruction
:
2. Install the burner floor plate (Burner Airbox) and one Panoramic Curved Liner inside the firebox per instructions
included with the Panoramic Curved Liner Kit.
3. Place “Middle Twig Assembly” directly in the middle of the burner and its left rear end touching the rear wall of the
Panoramic Curved Liner.

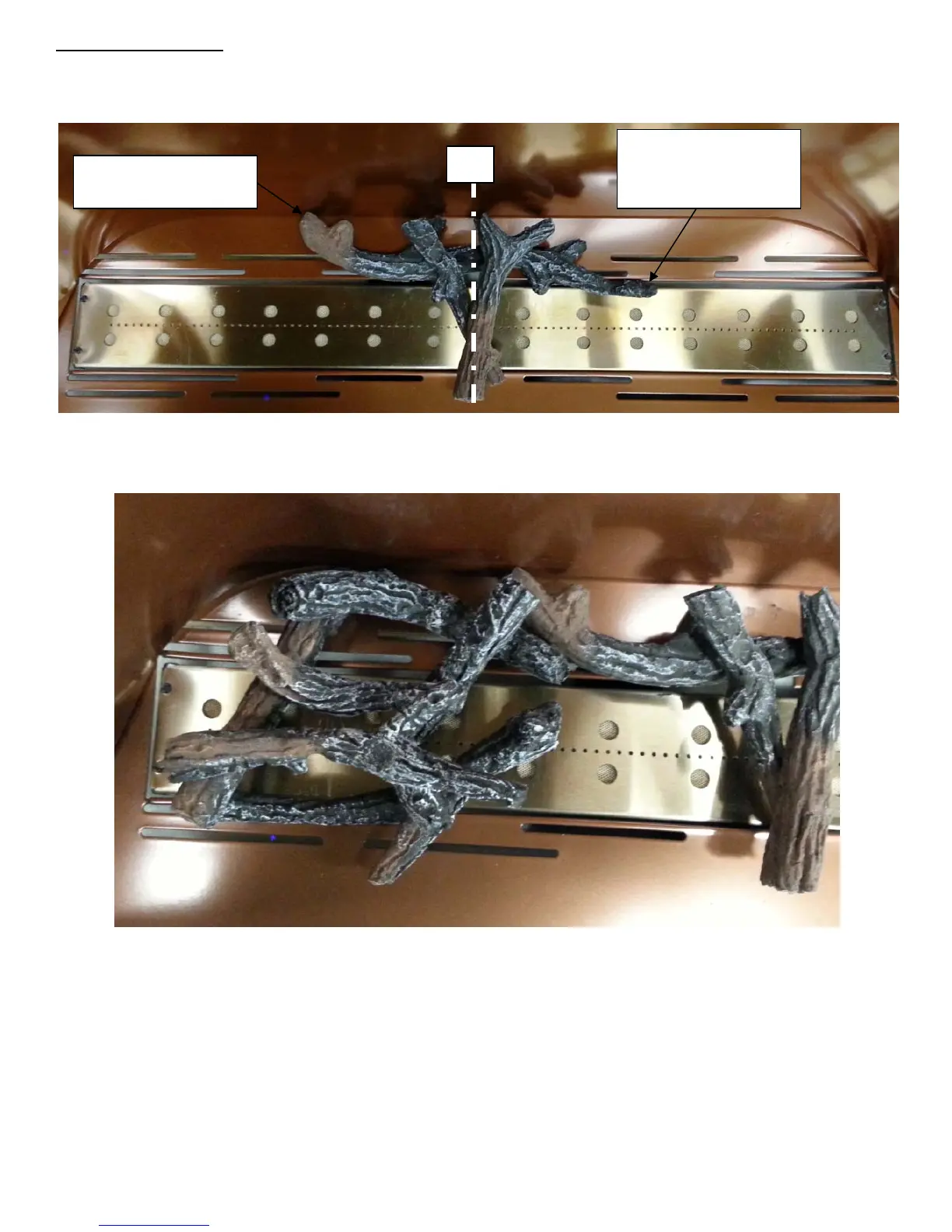

4. Place “Left Side Assembly” on the left side of burner as shown, below. This assembly has legs that sit directly on
top of the burner and floor plate.
This tip touches rear
wall.
This tip sits on burner
top, overlapping ½”.
