Basic Maintenance
To access internal components for general ser-
vice or maintenance requirements, remove any
decorative front, remove the glass door, remove
all burner media, inner Panoramic Lining and
floor plate, remove main burner. Locate two ac-
cess plates on the left and right side of firebox

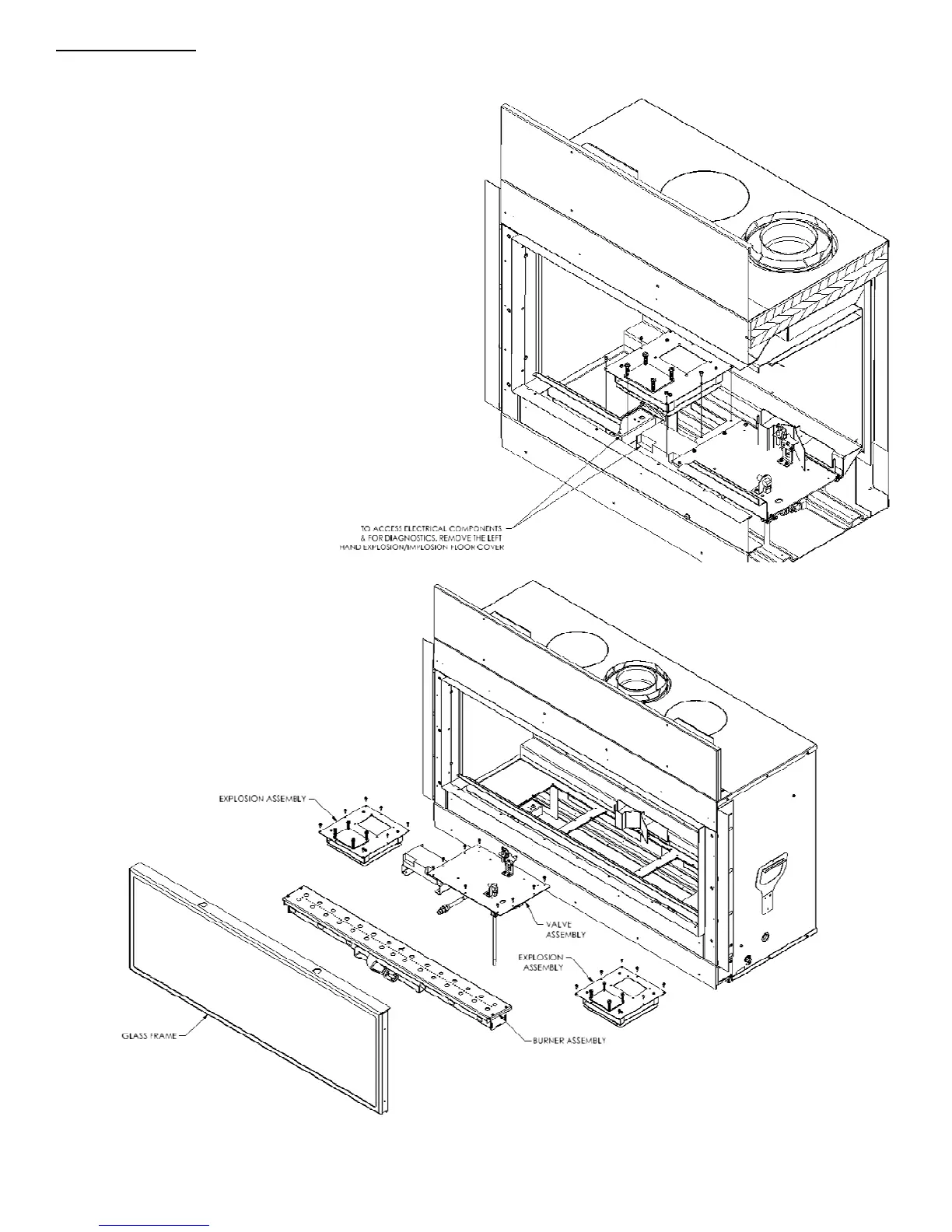

floor. See diagrams, below. Unscrew seven out-
er screws and lift entire left or right cover plate
assembly which provides access to inner elec-
tronic components and gas train systems.
The left cover plate assembly provides direct
access to the main electrical junction box and
the main ignition module and wiring connec-
tions.
