85-03-01147 ML60 Page 22
Rough Framing Dimensions
The rough framing dimensions given are the
minimum allowed framing dimensions. When
planning the framing of the unit be sure there is
adequate space to hook up the gas and electrical
on the right side of the unit.
SPECIAL FRAMING NOTE:
If the fireplace is to be recessed in a cavity deeper
than 19 1/2”, all framing and finishing materials protruding past the front face of this fireplace must be of the NON-
COMBUSTIBLE variety.
Minimum Required Dimensions
DESCRIPTION
DIMENSION
(INCHES)
A
ENCLOSURE FRAMING WIDTH
68
B
ENCLOSURE FRAMING DEPTH
19 1/2
C
ENCLOSURE FRAMING HEIGHT
44
D
ENCLOSURE CELING HEIGHT
64 1/4
E
FINISH MATERIAL THICKNESS
1
F
UNIT BASE TO ROOM CEILING
72
G
UNIT TO SIDE WALL
18
H
UNIT BASE TO 8” MANTEL
49

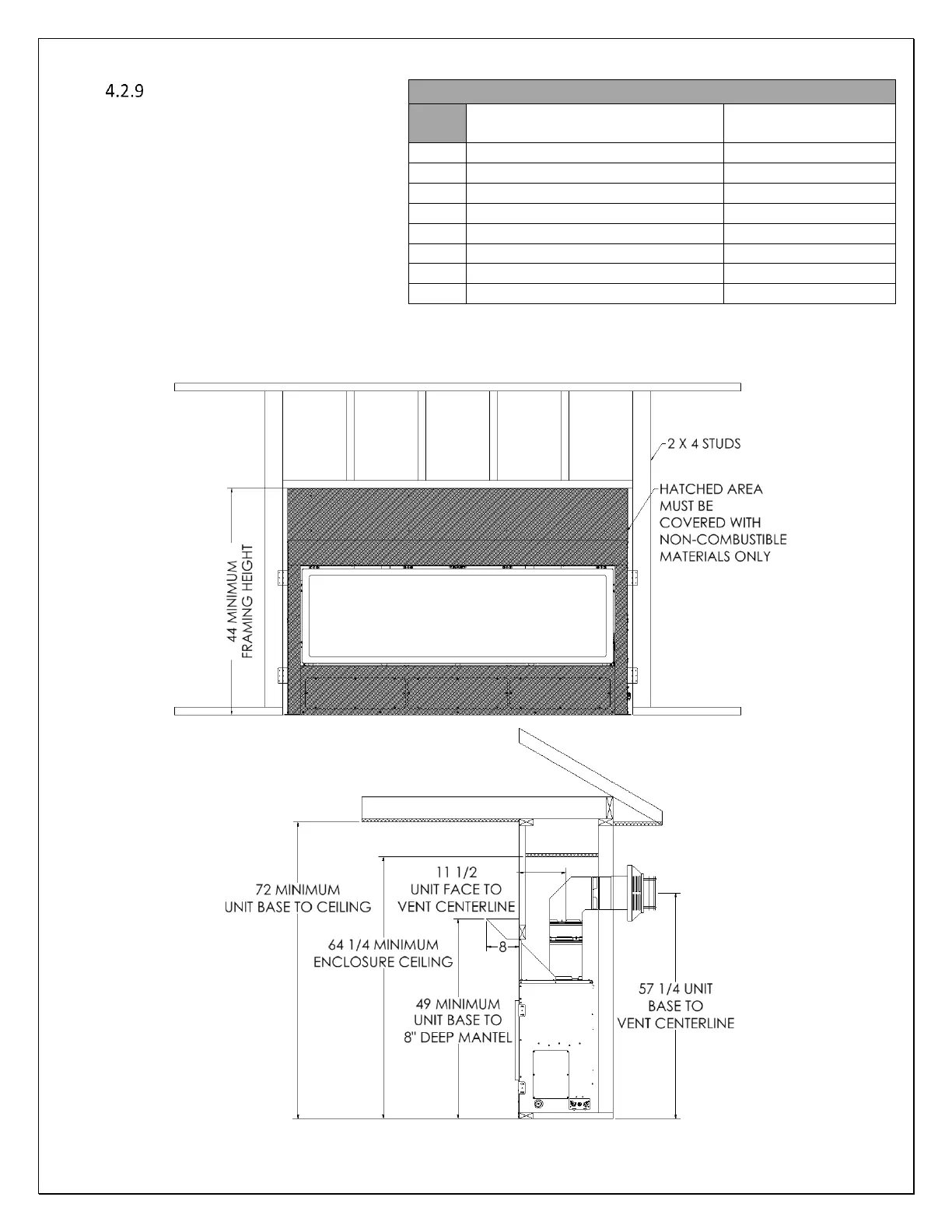

Figure 4-16 FRAMING DIMENSIONS
