Mendota ML60 - Unpacking the Fireplace

85-03-01147 ML60 Page 51
5.2 UNPACKING THE FIREPLACE
The Fireplace arrives from the factory on a wooden pallet with a cardboard box encasing the pallet and Fireplace. To remove
the outer box, identify and remove four Philips head drywall screws that secure a cardboard L pincher at the bottom of each
corner of the box.
Lift the outer box vertically straight upward until lower edge of the box clears the top of the unit body. Set the box aside.
Mendota recommends recycling the outer box.

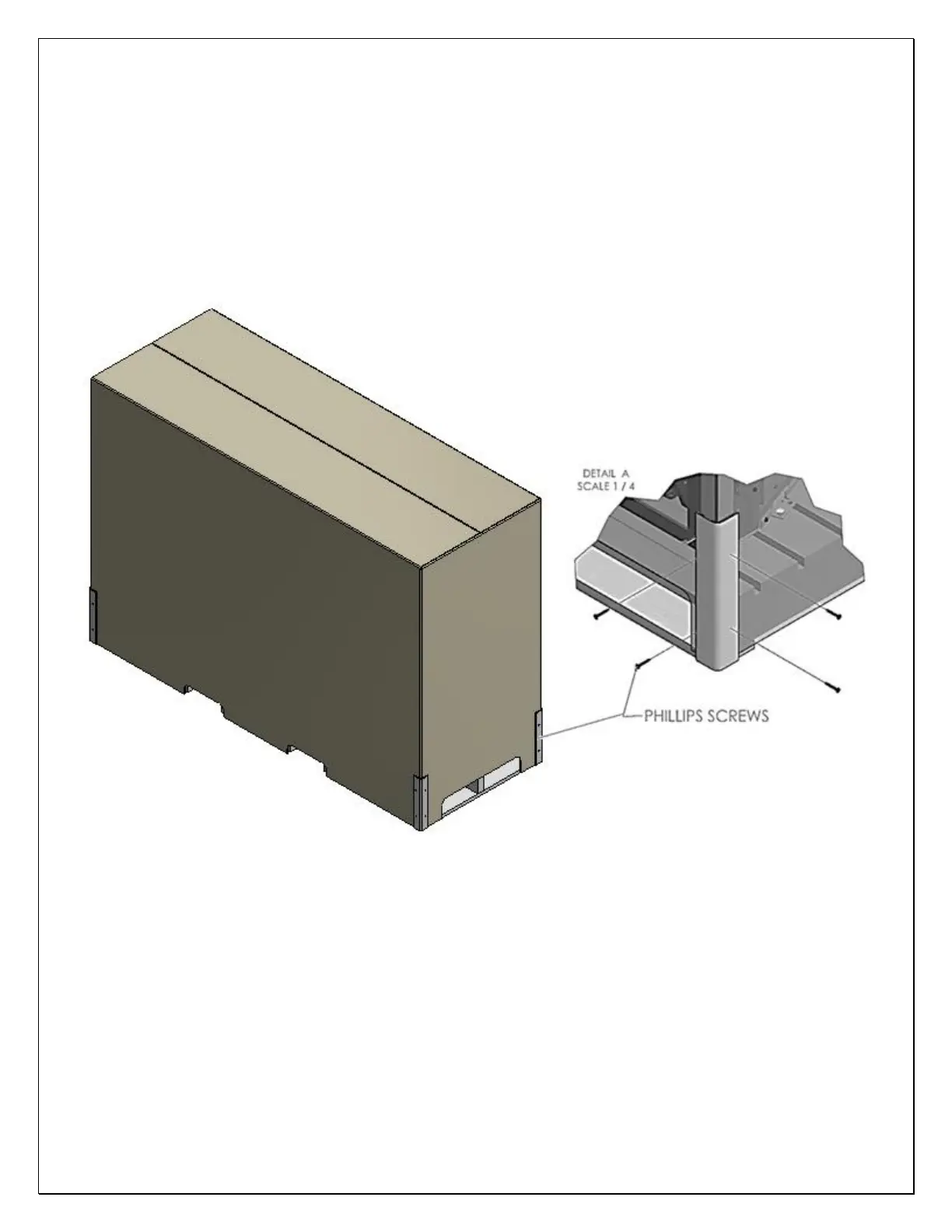

Figure 5-1 Outer Box Removal
