MerCruiser 350 Magnum MPI - Water Flow Diagram

76 pages

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

58

CC163

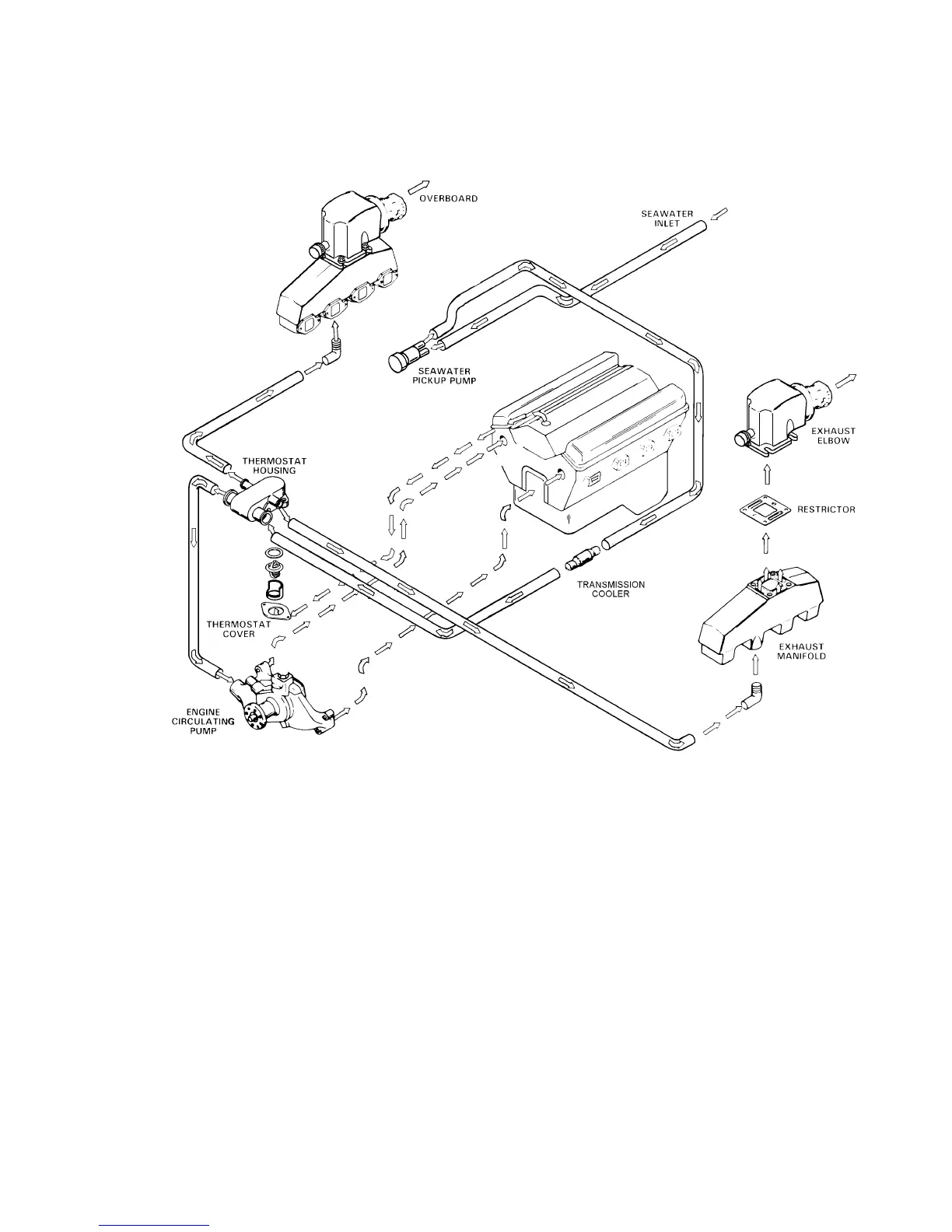

Water Flow Diagram

73854

Table of Contents

Serial Numbers2
Table of Contents3
Welcome5
- Read this Manual Thoroughly5
Lanyard Stop Switch6
Safe Boating Suggestions7
Protecting People in the Water8
- While You Are Cruising8
- While Boat Is Stationary8
High-Speed and High-Performance Boat Operation8
Conditions Affecting Operation9
- Weight Distribution9
- Bottom of Boat9
- How Elevation and Climate Affect Performance10
Important Information11
- Operation and Maintenance11
- Launching and Boat Operation Care11
- Freezing Temperature Operation12
- Attention Required after Submersion12
- Stolen Power Package12
- Replacement Service Parts12
- Do-It-Yourself Maintenance Suggestions13
- Diagnosing EFI Problems13
- 20-Hour Break-In Period14
- After Break-In Period14
- 20-Hour Checkup14
Operation16
- Instrumentation17
- Audio Warning19
- Electrical System Overload Protection21
- Remote Controls (Panel Mounted)23
- Starting, Shifting and Stopping24
- Operation Chart25
Specifications26
- Fuel Recommendations26
- Seacock Size Recommendation28
- Sea Strainer Recommendation28
- Crankcase Oil28
- Engine Specifications29
- Tune-Up Specifications30
- Capacities31
Maintenance32
- EFI System Maintenance Precautions33
- Maintenance Products33
- Maintenance Schedules34
- Maintenance Chart35
- Checking Fluid Levels37
- Changing Fluids39
- Lubrication41
- Flushing Cooling System43
- Seawater Pump Impeller43
- Drive Belts45
- Sight Tube Inspection47
- Water Separating Fuel Filter47
- In-Line Fuel Filter47
- Engine Alignment49
Miscellaneous Maintenance51
- Battery51
- Bottom of Boat51
- Antifouling Paints51
- Inspection and Maintenance51
Cold Weather or Extended Storage53
- Power Package Layup53
- Draining Instructions55
- Battery Winter Storage56
- Power Package Recommissioning56
Troubleshooting57
Water Flow Diagram60
Wiring Diagrams61
- Quicksilver Instrumentation61
- Starting and Charging System Harness62
- E.F.I. System Harness63
Warranty Information64
- Owner Warranty Registration64
- International Owner Registration64
Warranty Policies65
- Mercruiser Limited Warranty - Gasoline Engines65
- Mercruiser International Warranty66
- Gasoline Engines66
- Year Limited Warranty against Corrosion Failure67
Warranty Coverage68
- Warranty Does Not Apply to the Following68
Transferable Warranty69
- Direct Sale by Owner69
Q-Guard Product Protection Plan70
- United States and Canada Only70
Owner Service Assistance70
- Local Repair Service70
- Service Away from Home70
- Parts and Accessories Inquiries70
- Resolving a Problem71
Service Centers72
Customer Service Literature73
General Maintenance Parts74
- Engine Parts74
Literature Order Form75
