59
CC117

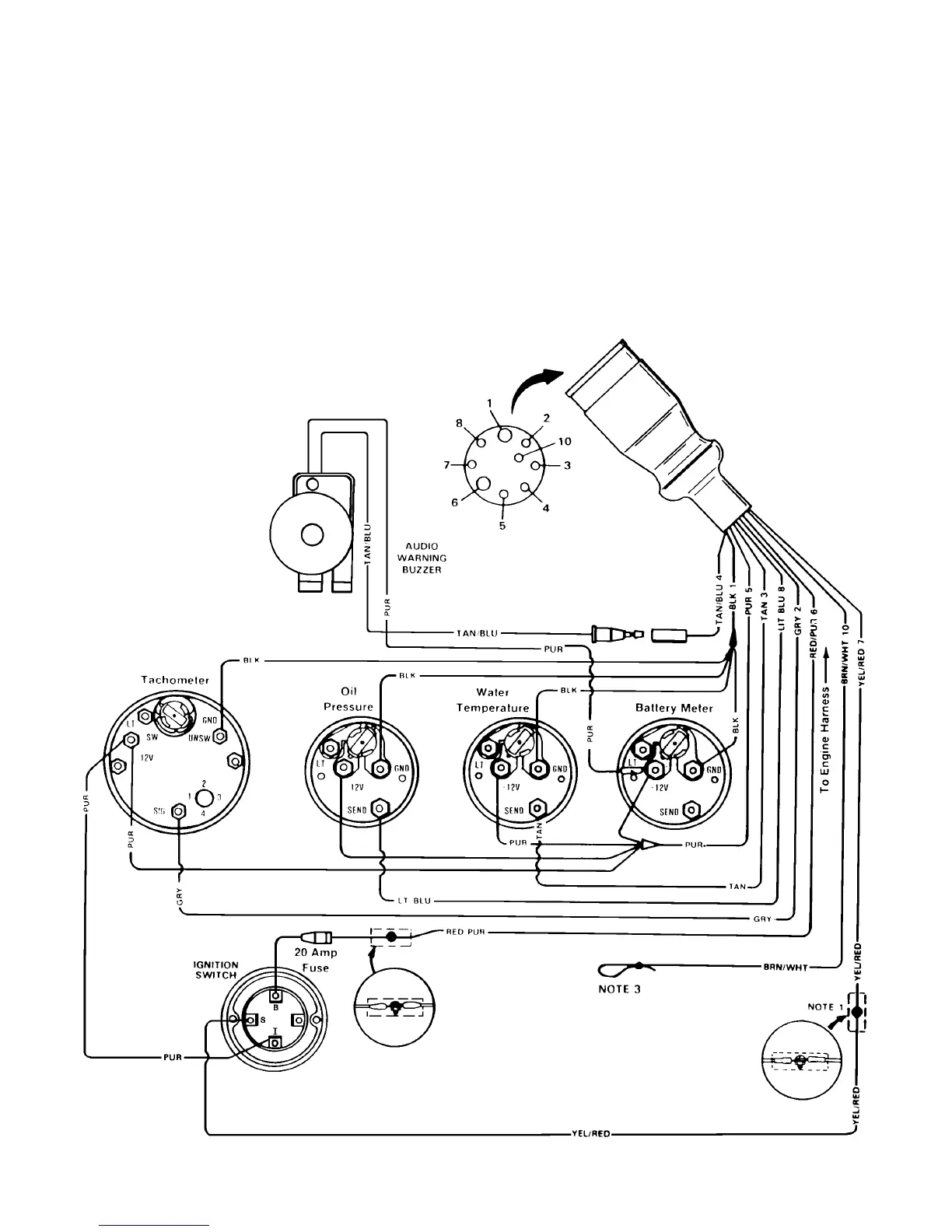

Wiring Diagrams
Quicksilver Instrumentation
Refer to gauge manufacturer’s instructions for specific connections.
NOTE:
1 Connect Wires Together with Screw and Hex Nut; Apply Liquid Neoprene to Connection and Slide
Rubber Sleeve over Connection.
NOTE:
2 Power for a Fused Accessory Panel May Be Taken from This Connection. Load Must Not Exceed
40 Amps. Panel Ground Wire Must Be Connected to Instrument Terminal That Has an 8-Gauge BLACK
(Ground) Harness Wire Connected to it.
NOTE:
3 Taped back BROWN/WHITE wire may be used for an accessory. LOAD MUST NOT EXCEED
5 AMPS.
73371
NOTE 1 & 2
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRN = GREEN
GRY = GRAY
ORN = ORANGE
PNK= PINK
PUR= PURPLE
RED= RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LIT = LIGHT
DRK= DARK
To Next Page
