Mercury 135 Optimax User Manual

MAINTENANCE
46

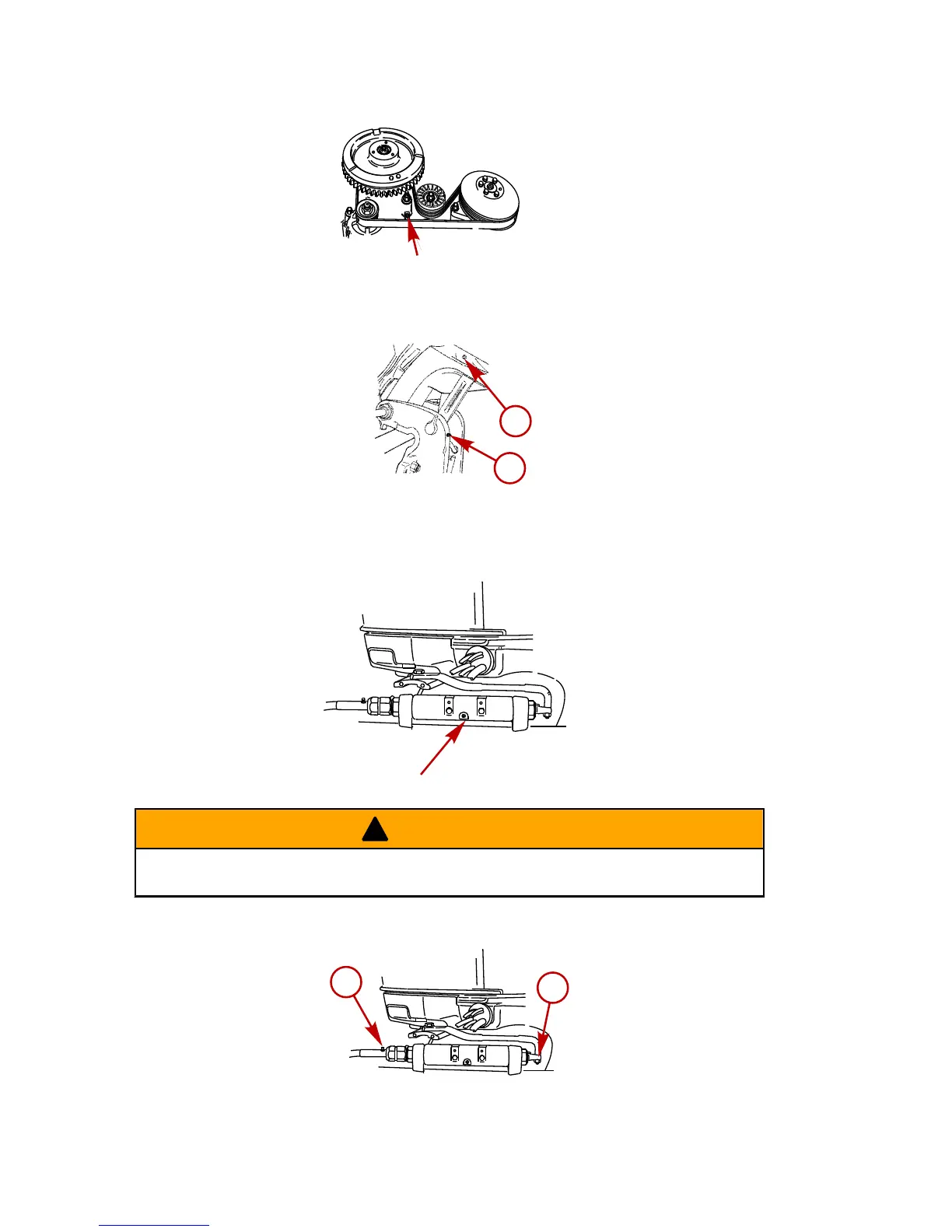

• Alternator Belt Tensioner Pivot Shaft - Lubricate through fitting.
29399
• Swivel Bracket - Lubricate through fitting.
• Tilt Support Lever - Lubricate through fitting.
a
b
27873
a - Swivel bracket b - Tilt support lever
• Tilt Tube - Lubricate through fitting.
27874
!
WARNING
Incorrect cable lubrication can cause hydraulic lock, leading to serious injury or death from loss of
boat control. Completely retract the end of the steering cable before applying lubricant.
• Steering Cable - Rotate steering wheel to fully retract the steering cable end into the outboard
tilt tube. Lubricate through fitting.
a
b
27875
a - Fitting b - Cable end
