225 (4-STROKE) INSTALLATION MANUAL
Page 11 of 16
Fuel Hose Connection
PORTABLE FUEL TANK
Select a suitable location in boat within engine fuel line length limitations and secure tank
in place.
PERMANENT FUEL TANK
These should be installed in accordance with industry and federal safety standards which
include recommendations applicable to grounding, anti-siphon protection, ventilation, etc.
FUEL HOSE SIZE
Minimum fuel line inside diameter (I.D.) is 5/16 in. (8mm), with separate fuel line/fuel tank
pickup for each engine.
FUEL HOSE CONNECTION

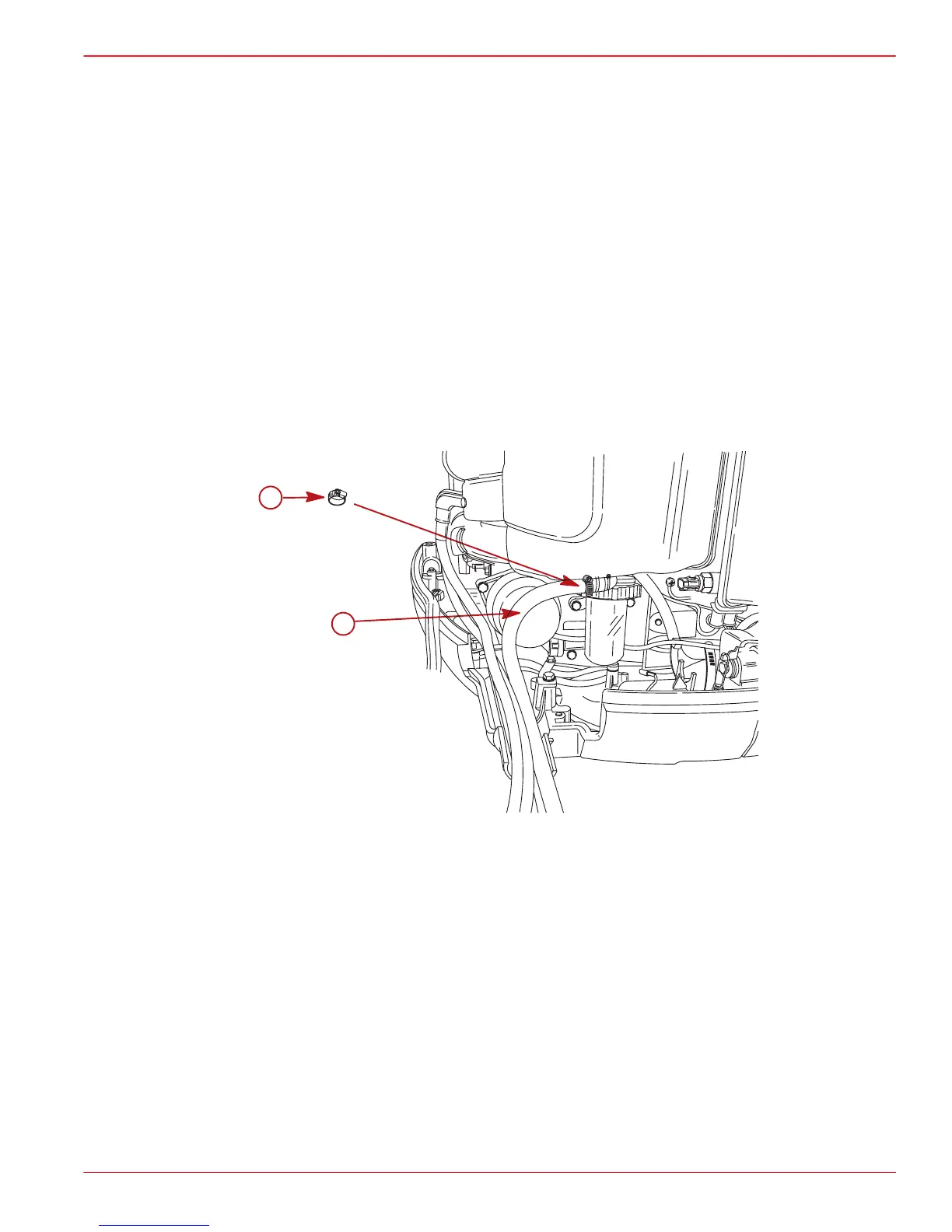

Route fuel hose through the front cable clamp. Fasten fuel hose to fitting with hose clamp.
a
b
a-Fuel Hose
b-Hose Clamp
