225 (4-STROKE) INSTALLATION MANUAL
Page 5 of 16

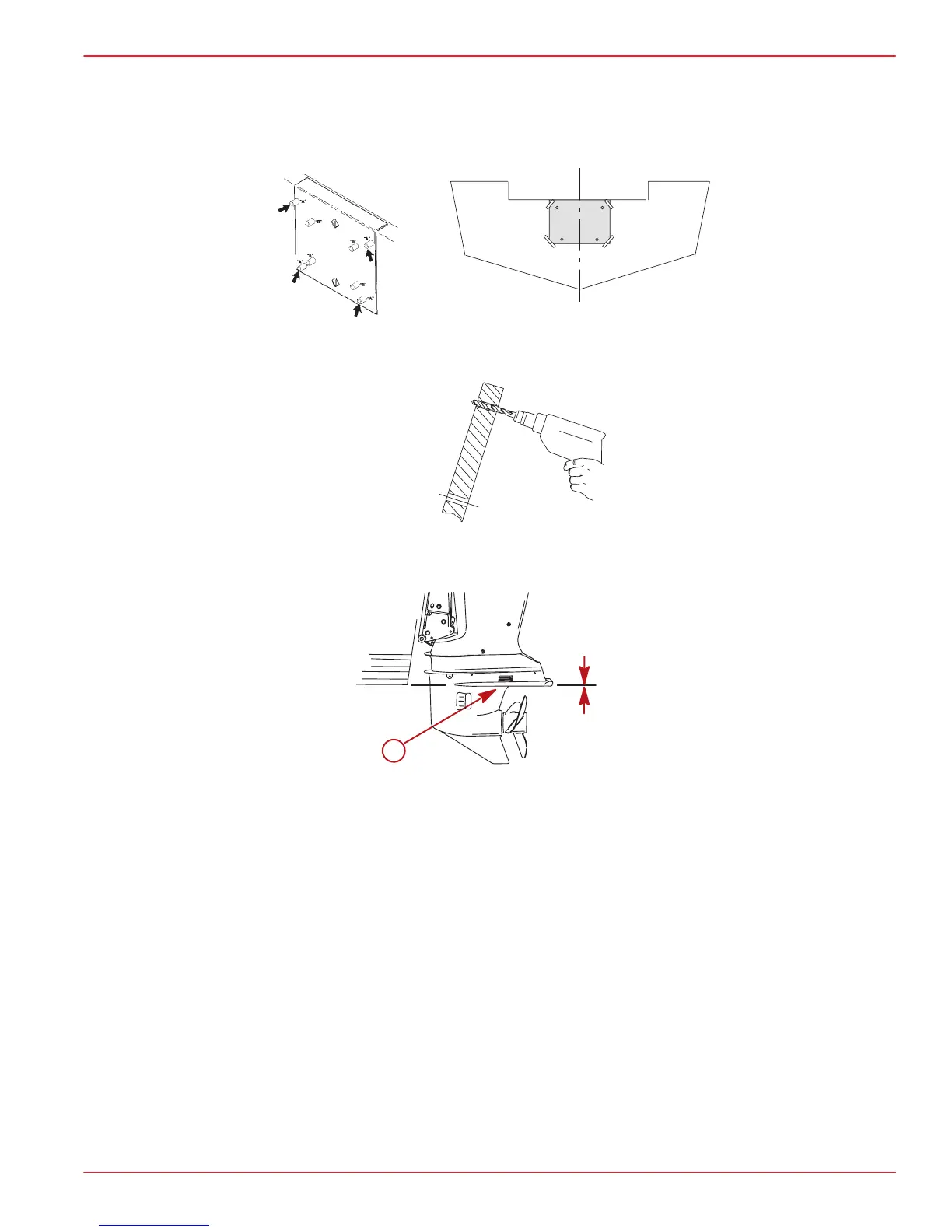

Installing Outboard
1. Use transom drilling fixture (91-98234A2) or attach (tape) engine mounting template
(located in this manual) to boat transom.
2. Mark and drill four 17/32 in. (13.5mm) mounting holes.
3. Install the outboard so that the anti-ventilation plate is in-line with the bottom of the boat.
a
a-Anti-Ventilation Plate

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Mercury 225 HP and is the answer not in the manual?

Mercury 225 HP Specifications

General IconGeneral
Engine TypeV6
Displacement3.4L
Full Throttle RPM5000-5800
Fuel Induction SystemElectronic Fuel Injection (EFI)
StartingElectric
Gear Ratio1.85:1
Horsepower225 HP
Cylinders6
ExhaustThrough Prop
SteeringHydraulic
Shaft Length20 in / 25 in / 30 in
Weight505 lbs (229 kg)
