INSTALLATION
44 eng
p - clip

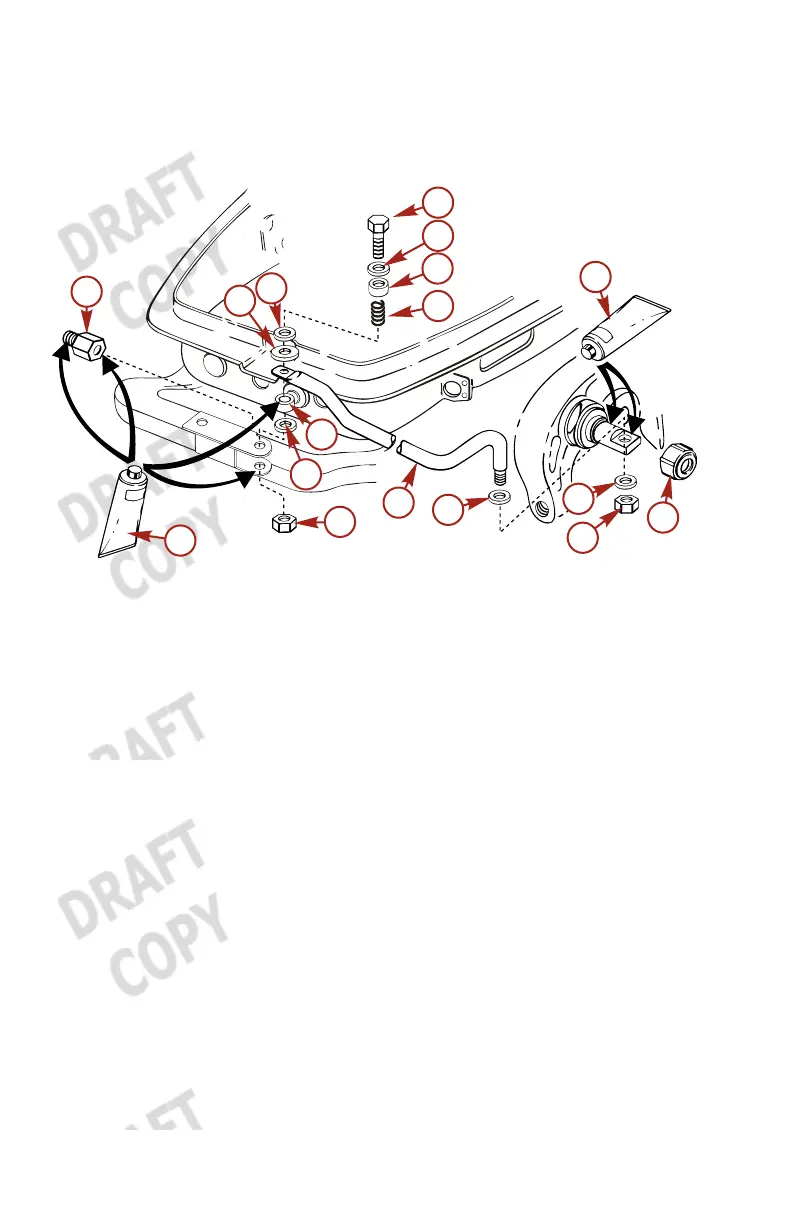

11.Attach a holder cap and a sleeve guide B.
12.Throttle side: Slide a grommet onto an end of the cable, put
a holder cap on it, and lock it with a nut, as shown.
a - Throttle cable
b - Nut
c - Holder cap
13.Shift side: Attach the sleeve guide B to the shift remote
control cable, and lock it with a nut.
a - Neck of remote control cable
b - Shift cable
c - Nut
d - Sleeve guide B
14.Connect the remote control cable to the engine.
15.Throttle side: Insert the throttle cable into a hole of the
advancer arm at the lower cowl, attach the ball joint to the
holder cap at the tip of the remote control cable, and fasten
the remote control cable with a clip. Attach a grommet to the
lower cowl.
NOTE: Place the control lever in Neutral (N), and the idling lever
in the fully closed position.
