Mercury 350 MAG MPI Installation Manual

INSTALLATION MANUAL
Page 52 of 77 90-864198020
11. Reattach locknut and washer to cable end guide stud. Tighten until they contact, then
loosen 1/2 turn.
12. Reattach locknut and washer to cable barrel stud. Tighten until they contact. Tighten
securely, but DO NOT overtighten.
NOTE: To change cable approach direction on single or dual station installations, only the
spacers/bushings have to be switched to the opposite stud (the studs are identical).
73589
71210
a
b
c
d
f
e
b
g
h
e

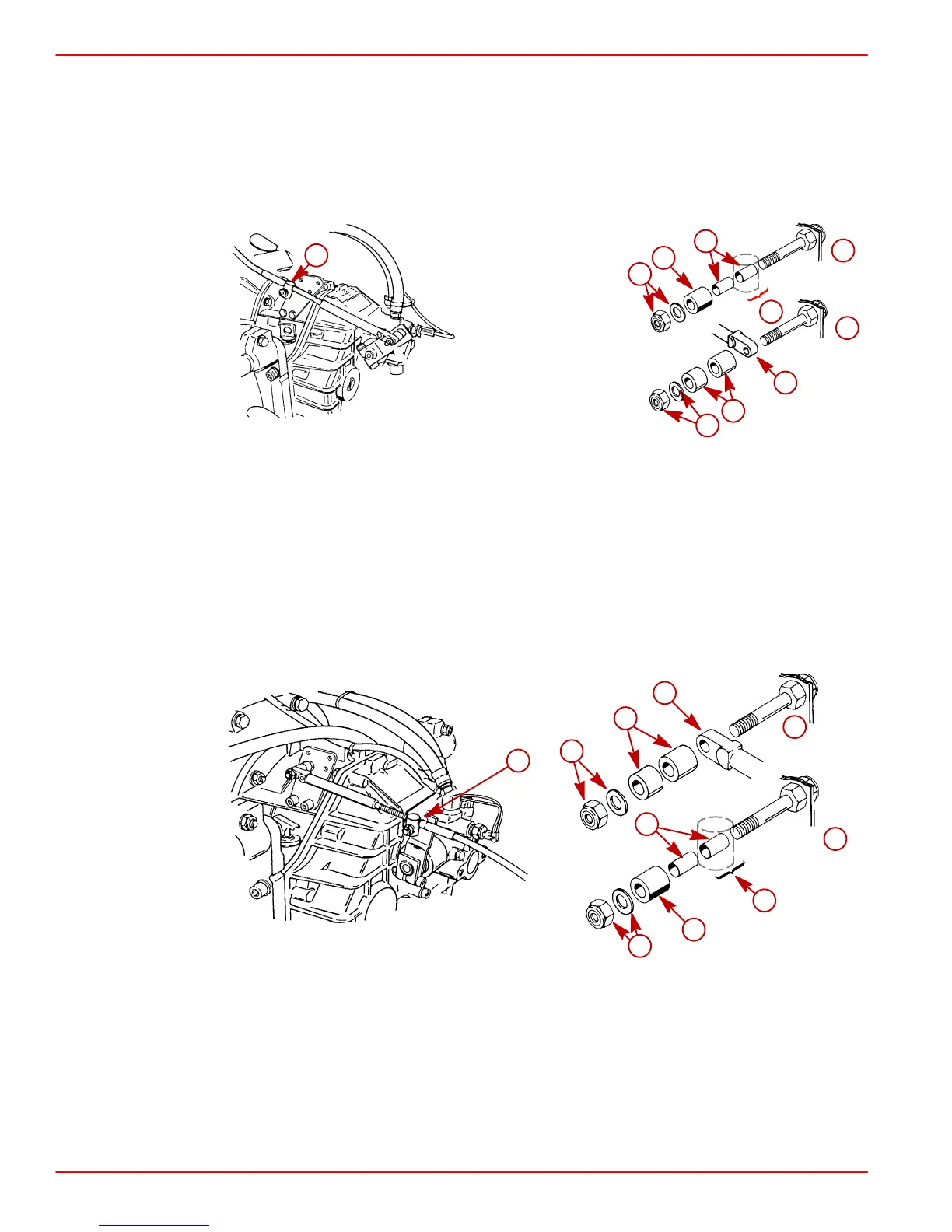

Typical Single Cable - Forward Entry
a-Cable End Guide
b-Locknut and Washer
c-Spacer (Fits over Bushings)
d-Bushings
e-Cable Barrel Location
f-Spacer (Fit over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud
73587
50229
e
e
f
a
b
b
c
d
g
h
Typical Single Cable - Rear Entry
a-Cable End Guide
b-Locknut and Washer
c-Spacer (Fits over Bushings)
d-Bushings
e-Cable Barrel Location
f-Spacer (Fit over Stud)
g-Cable Barrel Stud
h-Cable End Guide Stud

Mercury 350 MAG MPI Specifications

General

Engine Type	V8
Horsepower	300 HP
Ignition	Electronic
Alternator	65 amp
Cylinders	8
Displacement	5.7 L
Fuel System	Multi-Port Fuel Injection (MPI)
Emissions	EPA Certified
