INSTALLATION MANUAL
90-864198020 Page 51 of 77
7. Temporarily install shift cable. Do not secure at this time.
73587
a
Typical

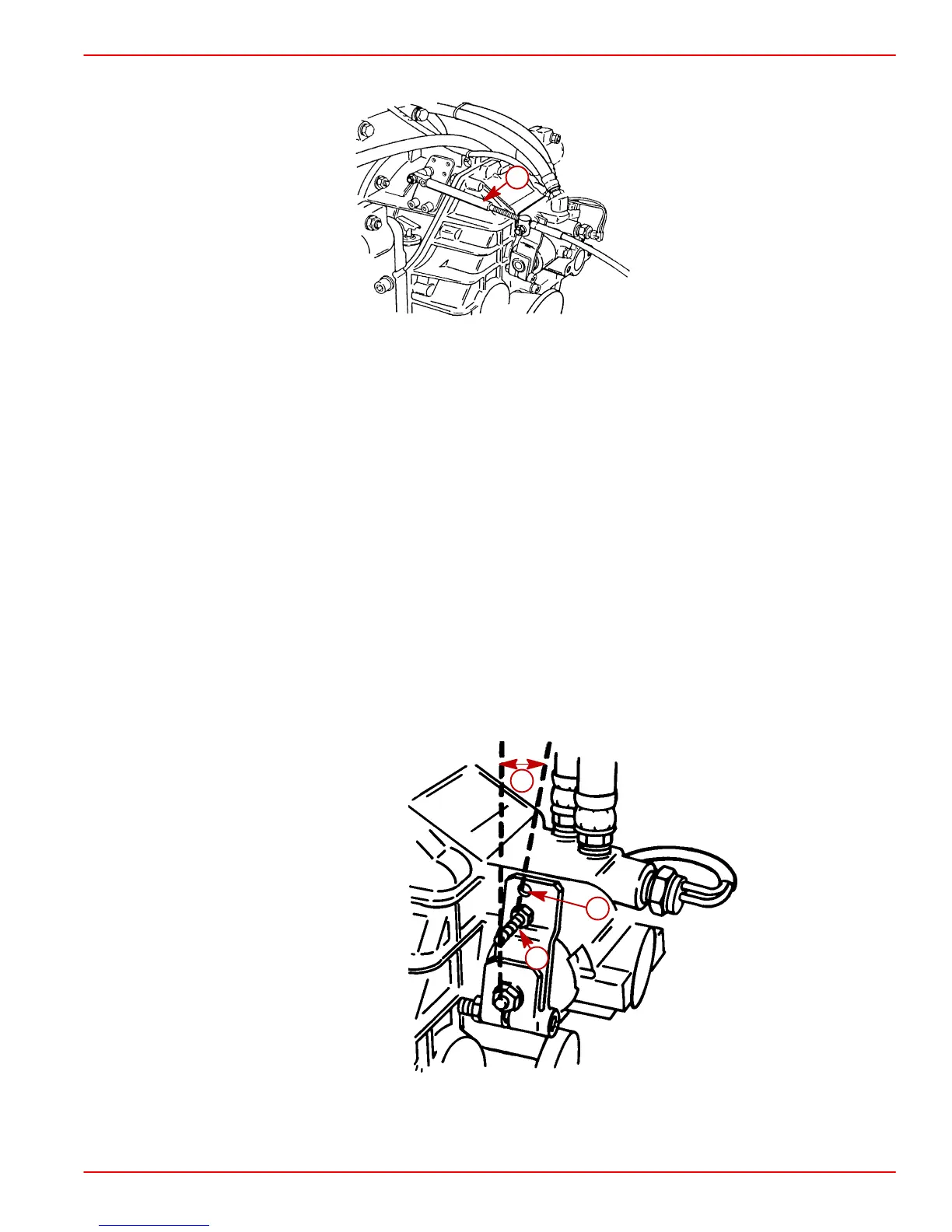

a-Shift Cable End Guide
IMPORTANT: Transmission is fully in gear when shift lever comes to a stop in either
direction.
8. Place remote control shift lever in FORWARD gear position. Ensure that transmission
is fully in gear, as follows:
a. Hold shift lever in position.
b. Carefully slide shift cable off of anchor points.
c. Attempt to move shift lever further.
9. Place remote control shift lever in the REVERSE gear position. Ensure that transmission
is fully in gear, following same procedure.
10. If transmission shift lever will position properly in one gear, but not in the other, recheck
shift cable adjustment. If transmission shift lever will not position properly in both gears,
move transmission shift lever stud “a,” from top hole in shift lever, to bottom hole, and
recheck for proper positioning. If proper positioning is still not obtained, remote control
does not provide sufficient shift cable travel and must be replaced.
50228
a
b
c
a-Shift Lever Stud (In Bottom Hole, If Required)
b-Lever in NEUTRAL Detent 10 Degrees Aft of Vertical
c-Shift Lever Top Hole
To Next Page
