3. Nonpower tilt models ‑ To prevent a loss of the outboard, secure the
outboard to the transom with the two transom bracket clamp screws and
two mounting bolts. Drill two 7.9 mm (5/16 in.) holes through‑the‑transom
bracket mounting holes. Fasten with two bolts, flat washers, and locknuts.
Use a marine waterproofing sealer in the holes and around the bolts to
make the installation watertight. Tighten the bolts to the specified torque.

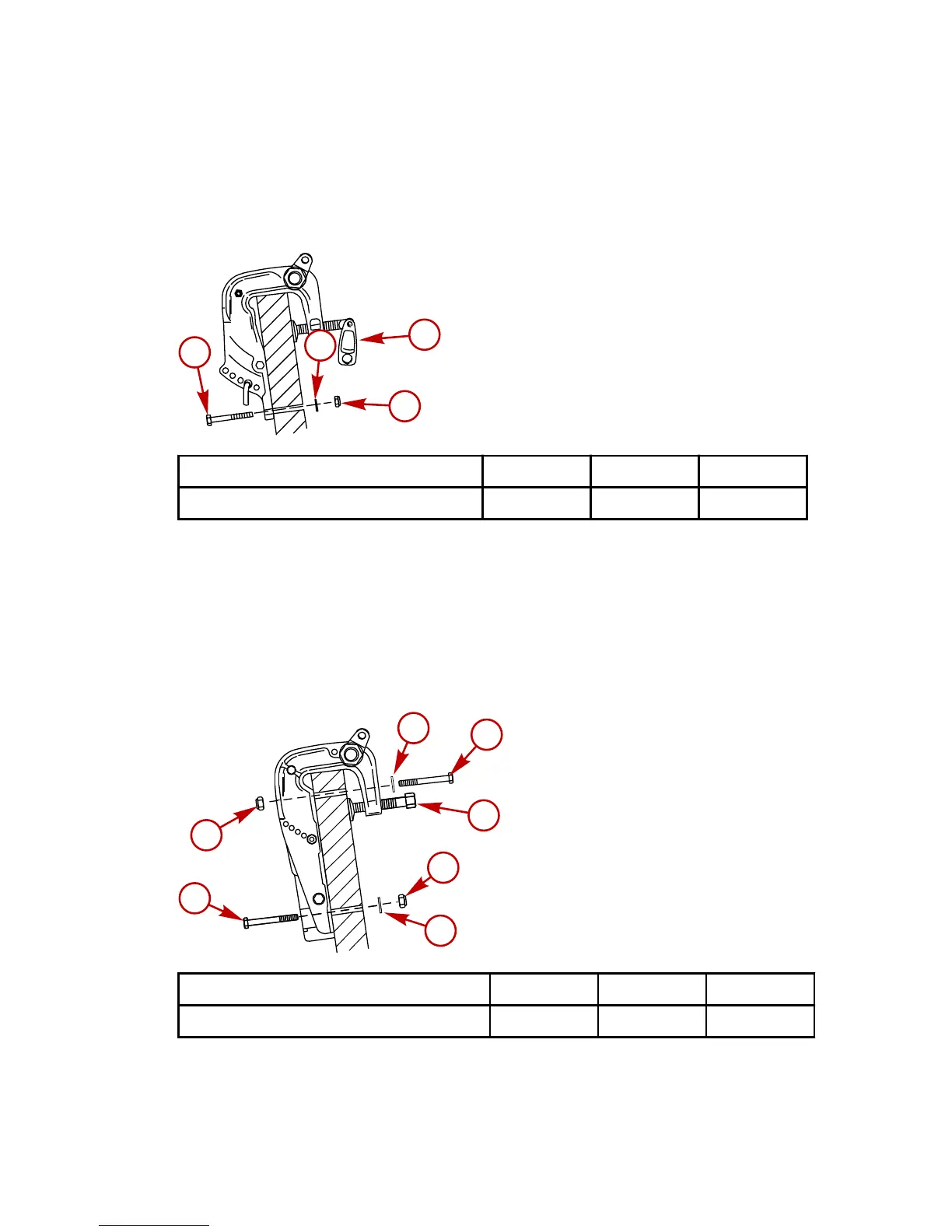

a - Bolts (2)
b - Washer (2)
c - Locknut (2)
d - Transom bracket clamp screws
(2)
Description Nm lb‑in. lb‑ft
Transom bracket mounting bolts 13.5 – 10
4. Power tilt models ‑ To prevent a loss of the outboard, secure the outboard
to the transom with the two transom bracket clamp screws and four
mounting bolts. Drill two 7.9 mm (5/16 in.) holes through the upper set of
transom bracket mounting holes and drill two holes through the lower set
of mounting holes or mounting slots. Fasten with four bolts, flat washers,
and locknuts. Use a marine waterproofing sealer in the holes and around
the bolts to make the installation watertight. Tighten the bolts to the
specified torque.
a - Locknut (4)
b - Washer (4)
c - Bolts (4)
d - Transom bracket clamp
screws (2)
Description Nm lb‑in. lb‑ft
Transom bracket mounting bolts 13.5 – 10
