Mercury 4-STROKE

To Next Page

To Previous Page

Remote Wire Harness Connection

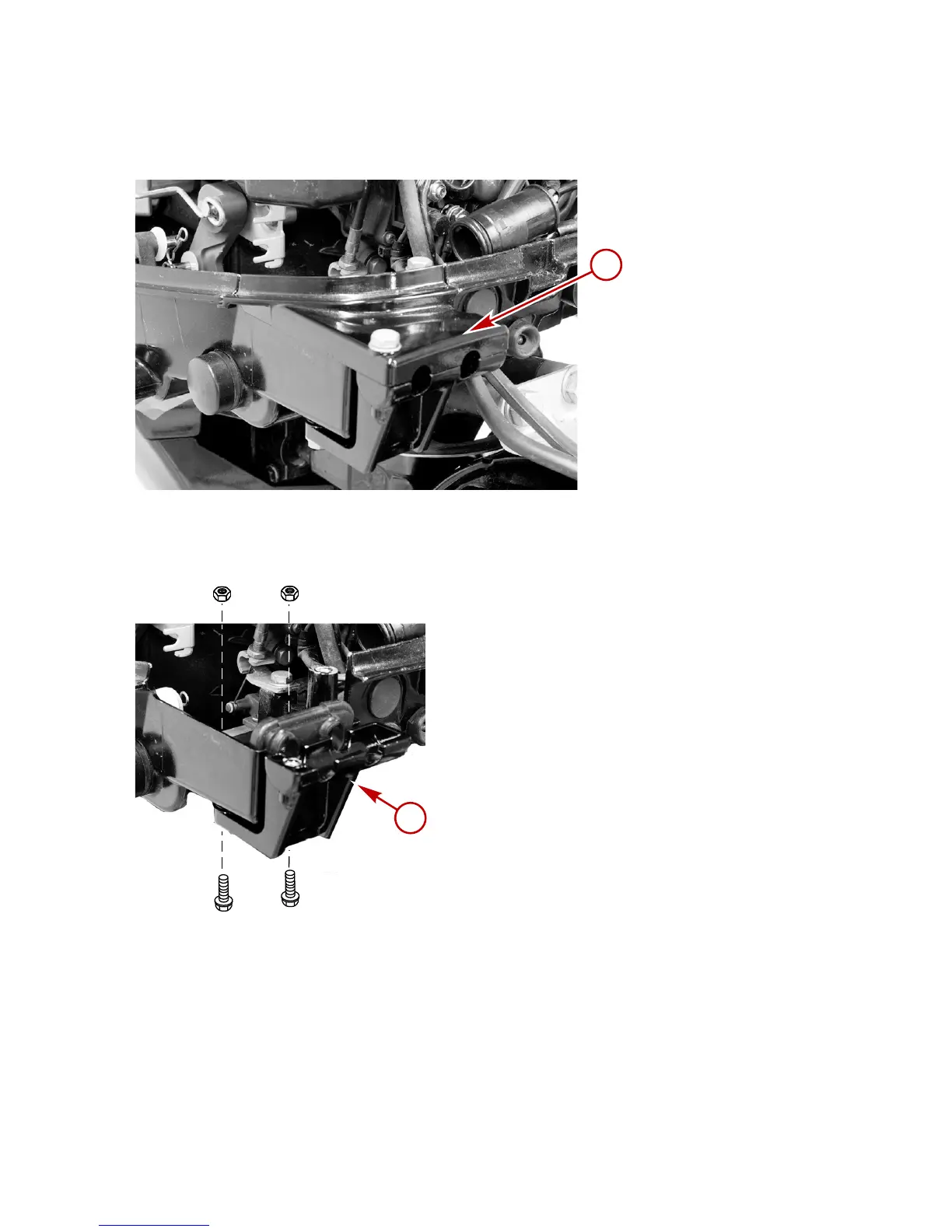

1. Remove the cover and cable receptacle bracket from the bottom cowl.

a - Cover

a - Cable receptacle bracket

2. Route the remote wiring harness through the rubber grommet.

28003

28107

INSTALLATION

112 eng
