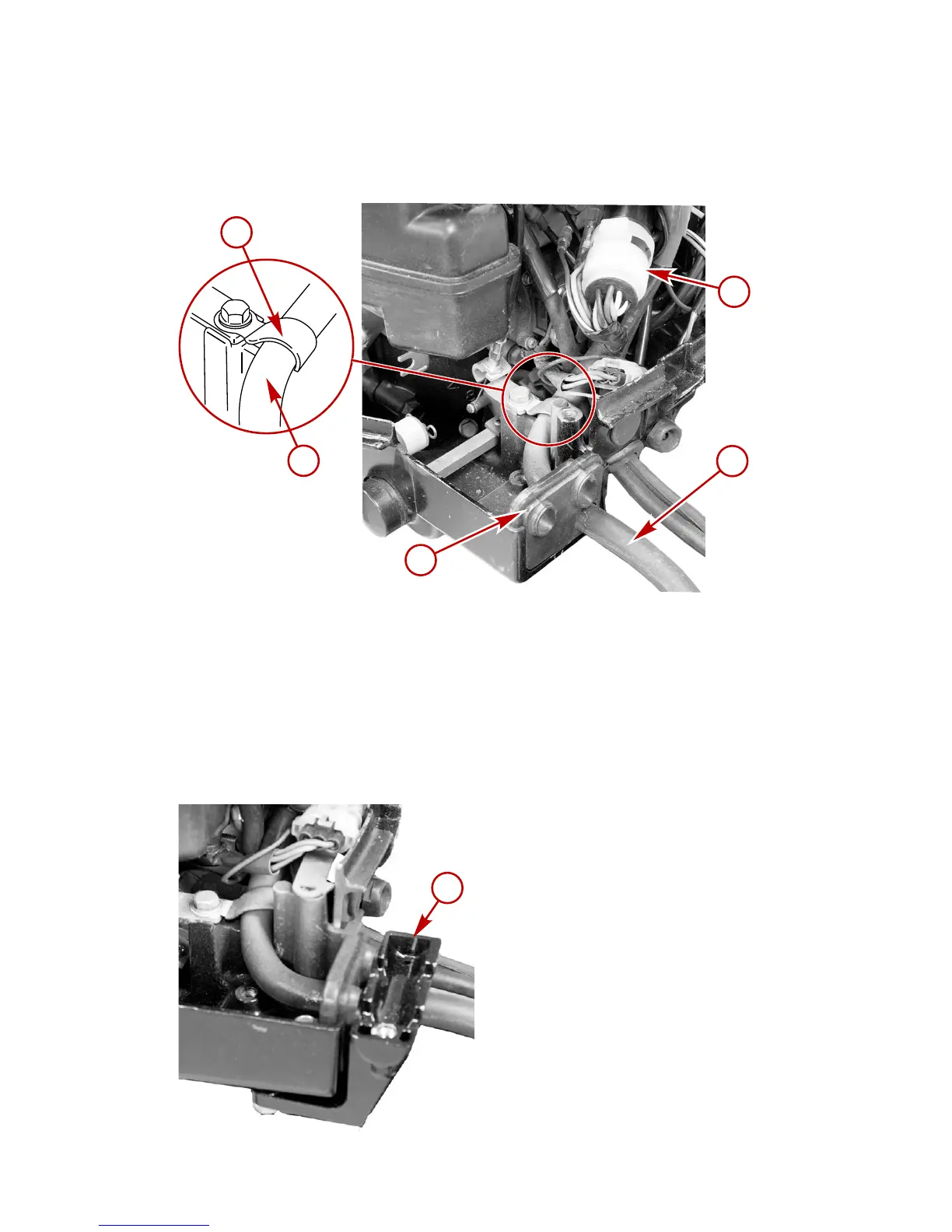

3. Open up the clamp in the bottom cowl and position the remote wiring
harness below the clamp. Connect the 8 pin connector to the engine
harness. Push the clamp down and secure the remote wiring harness into
the bottom cowl.
a - Clamp
b - Remote wiring harness
c - 8 pin connector
d - Rubber grommet
4. Install the cable receptacle bracket with two bolts and hex nuts. Tighten
the bolts to the specified torque.
a - Cable receptacle bracket
a
b
c
b
d
28798
29044
a
INSTALLATION
eng 113
