CYLINDER BLOCK AND CRANKCASE
90-857138R1 MAY 2000 Page 4B–19

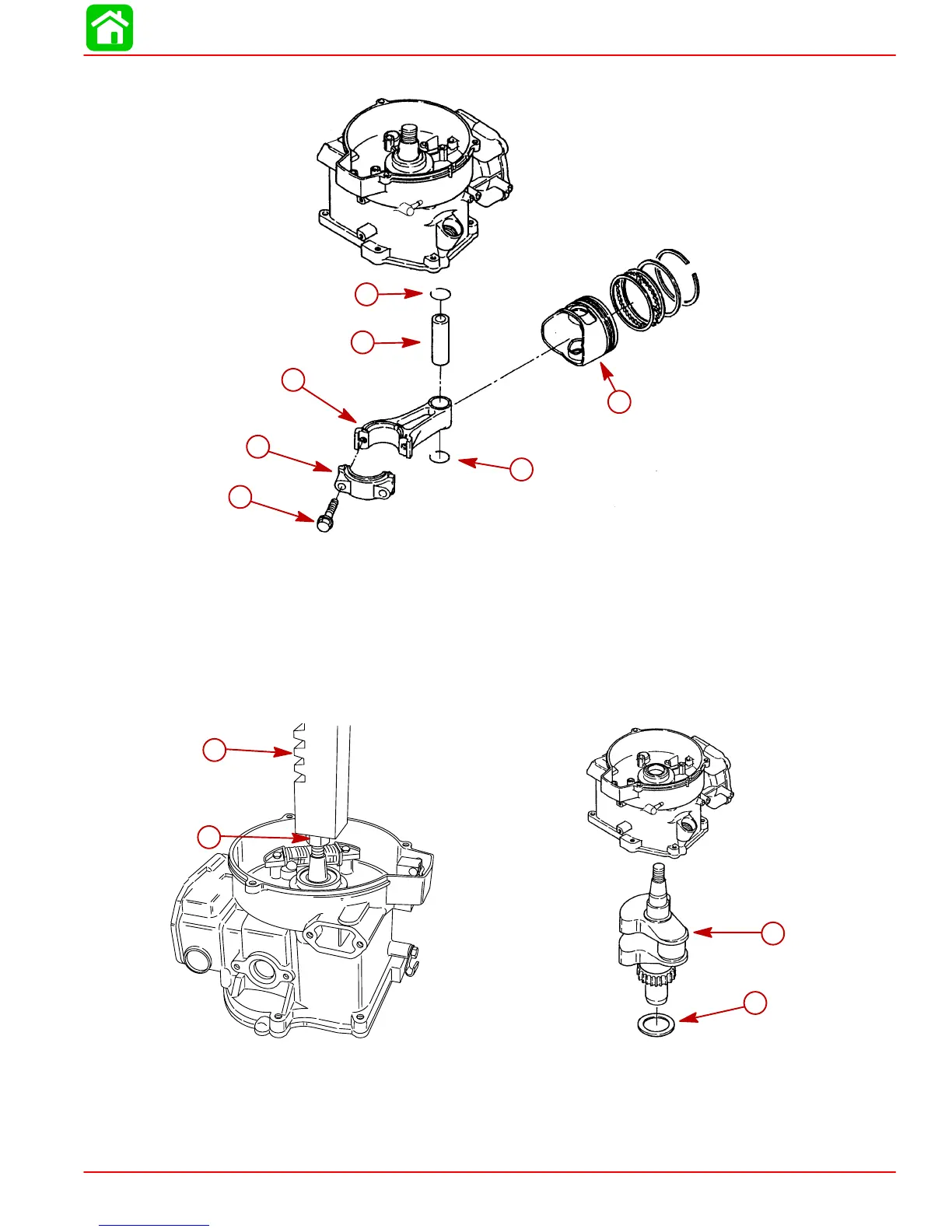

12. Remove piston assembly from the crankshaft.
a
b
c
d
e
f
e
a-Connecting Rod
b-Cap
c-Bolt (2)
d-Piston Pin
e-Clip (2)
f-Piston
13. Press the crankshaft out of the cylinder block.
a
c
d
b
a-Press
b-Flywheel Nut - Thread Onto End of Crankshaft
c-Crankshaft
d-Washer

Mercury 6 SERIES Specifications

General

Starting	Manual
Cylinders	1
Steering	Tiller
Horsepower	6 HP
Full Throttle RPM Range	5000 - 6000 RPM
Fuel Type	Gasoline
