Mercury 8.2 MAG User Manual

Section 2 - Getting to Know Your Power Package
Page 24 90-8M0074352 eng OCTOBER 2012
Analog Gauges
The following is a brief explanation of the instrumentation typically found on some boats. The owner and operator should be
familiar with all instruments and their functions. Because of the large variety of instrumentation and manufacturers, you should
have your boat dealer explain the particular gauges and normal readings for your boat.
L
H
OIL
C H
TEMP
0
1
2
3
4
5
6
7
8
R P M
X 1000
MPH
KPH
10
20
30
40
50
60
70
80
30
40
50
60
70
80
90
100
120
110
10 16
BATT
0
4
4
4
FUEL
CRUISELOG
0 0 0 0
0
TRIM
a
b
c
d
e
f
g
h
i
j
14671

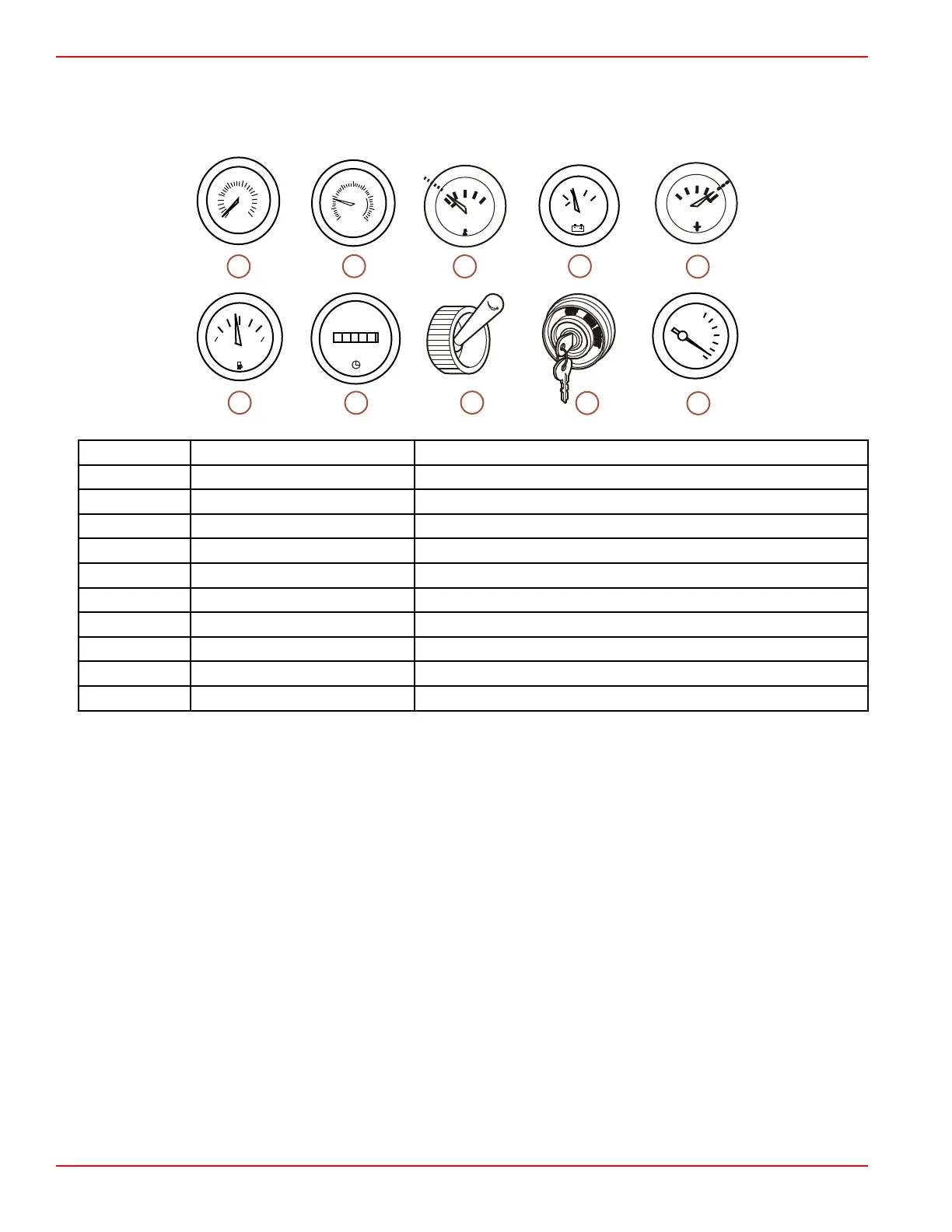

Reference Gauge Function
a Speedometer Indicates boat speed.
b Tachometer Indicates engine RPM.
c Oil pressure gauge Indicates engine oil pressure.
d Voltmeter Indicates battery voltage.
e Coolant temperature gauge Indicates engine operating temperature.
f Fuel gauge Indicates quantity of fuel in tank.
g Hour meter Records engine operating time.
h Bilge blower switch Operates the bilge blower.
i Ignition switch Allows the operator to start and stop engine.
j Power trim gauge Indicates sterndrive angle (trim up [out] and down [in]).
Remote Controls (Non‑DTS Models)
Remote Controls
Your boat may be equipped with Mercury Precision Parts or Quicksilver remote controls. All controls may not have all features
shown. Consult your dealer for a description and/or demonstration of your remote control.
