Section 5 - Maintenance
Page 66 90-8M0074352 eng OCTOBER 2012

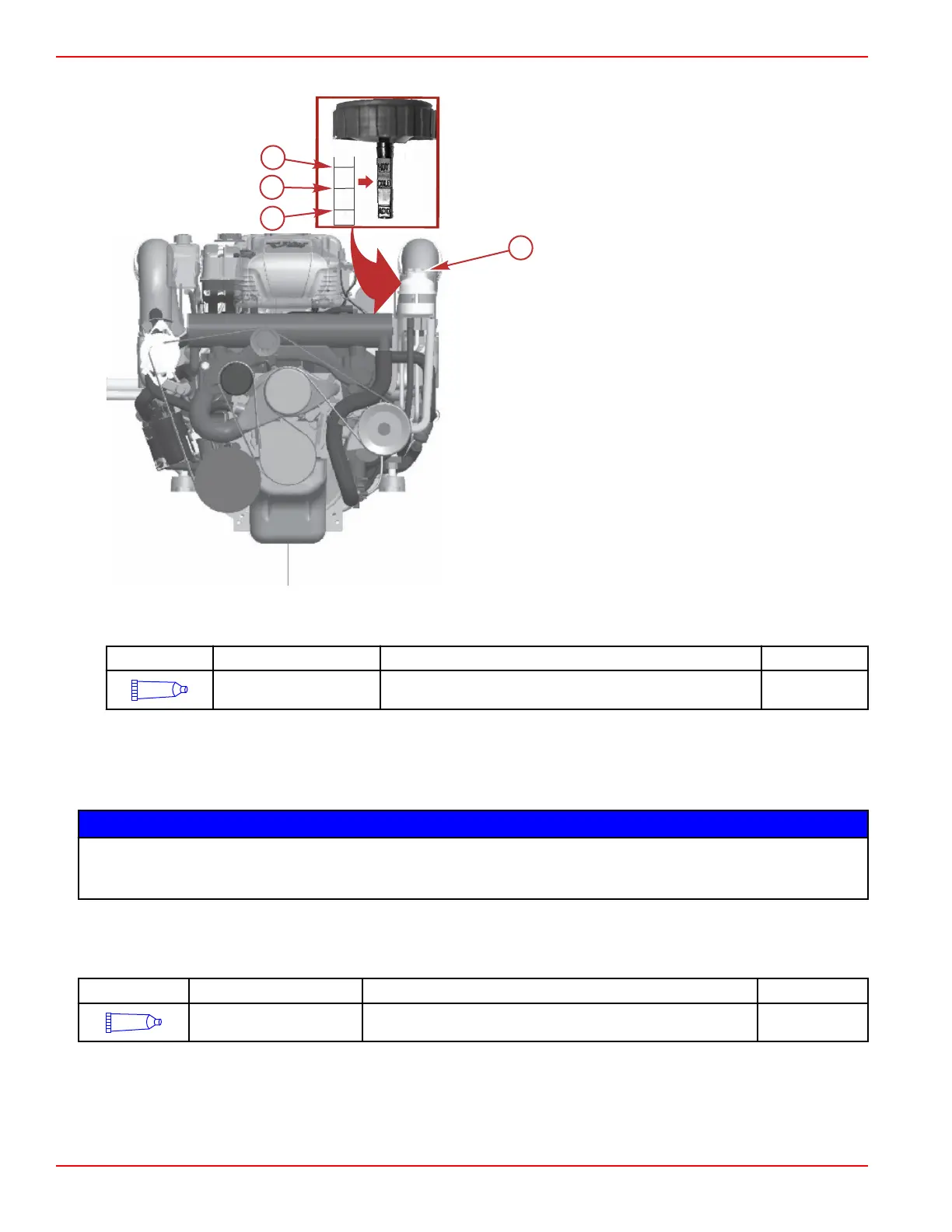

3. The fluid level should be in the operating range on the dipstick.
a - Reservoir
b - Hot level
c - Cold level
d - Add mark
4. If the fluid level is in the add range, add the required amount of fluid through the fill cap opening to bring the level up to the
operating range on the dipstick. Do not overfill.
Tube Ref No.
Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power trim pump 92-858074K01
5. If fluid is not in the reservoir, a leak exists in the power‑assisted steering system. Find the cause and correct.
Closed Cooling System
Coolant Requirement
NOTICE
Using propylene glycol antifreeze in the closed cooling system can damage the cooling system or the engine. Fill the closed
cooling system with an ethylene glycol antifreeze solution suitable to the lowest temperature to which the engine will be
exposed.
NOTE: All factory‑installed closed cooling systems come filled with Extended Life Coolant. This antifreeze requires draining and
replacing every five years or 1000 hours of operation, whichever comes first. The color of this antifreeze is orange. Any "top‑off"
fluid used must be Extended Life Coolant.
Tube Ref No.
Description Where Used Part No.
122
Extended Life Antifreeze/
Coolant
Closed cooling system 92-877770K1
