Sync button ‑ Pressing the "SYNC" button turns off or on the auto synchronization feature. Refer to Synchronizing
Engines.

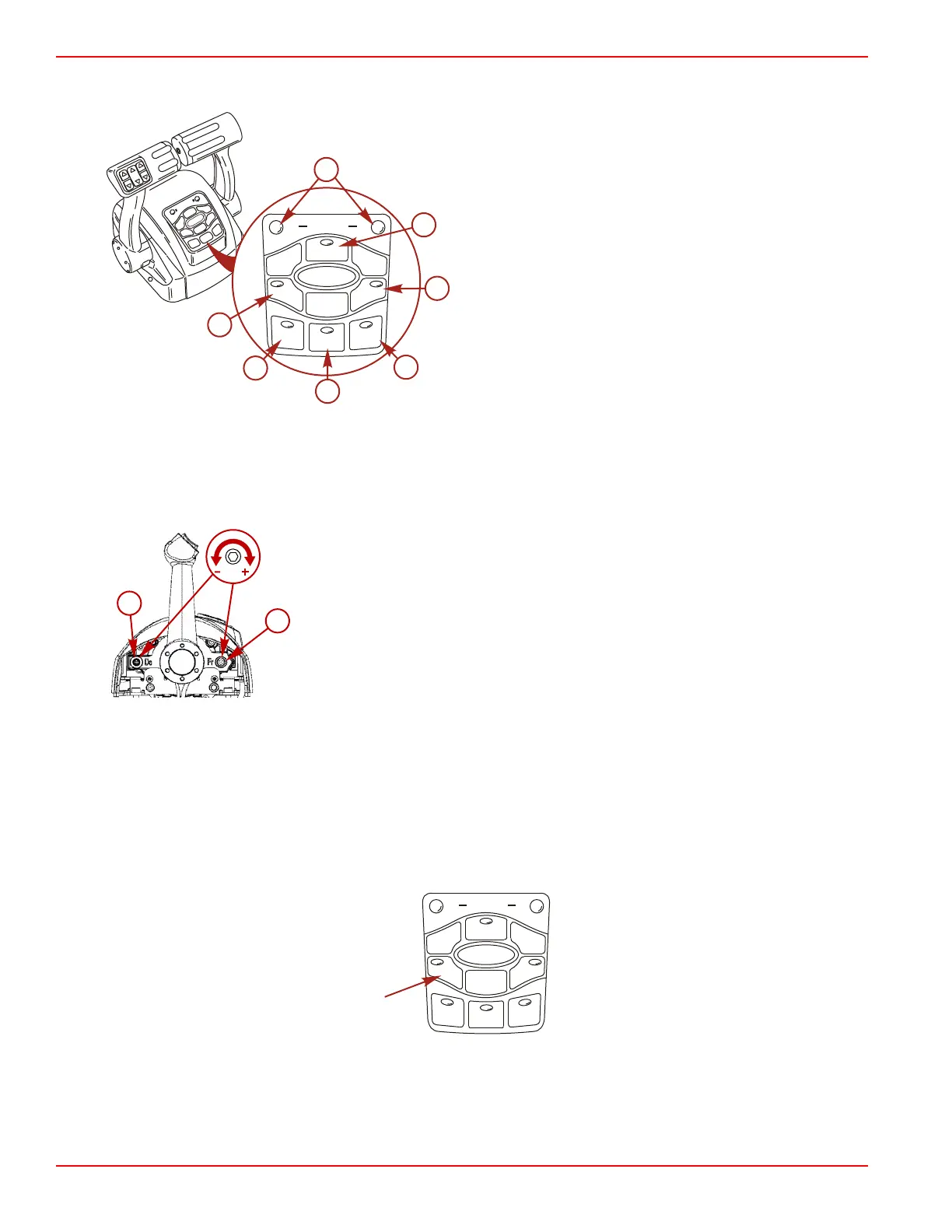

a - Neutral LED
b - Troll button
c - Transfer button
d - Dock button
e - Throttle only button
f - 1 Lever button
g - Sync button
10. Control handle tension adjustment screw ‑ This screw can be adjusted to increase or decrease the tension on the control
handle (cover must be removed). This will help prevent unwanted motion of the handle in rough water. Turn the screw
clockwise to increase tension and counterclockwise to decrease tension. Adjust to tension desired.
11. Detent tension adjustment screw ‑ This screw can be adjusted to increase or decrease the effort to move control handle
out of detent positions (cover must be removed). Turning the screw clockwise will increase tension. Adjust to tension
desired.
a - Detent tension adjustment screw
b - Control handle tension adjustment screw
Synchronizing Engines
The auto synchronizing feature, when engaged, will automatically adjust all engine speeds to match the speed of the starboard
engine.
Press the "SYNC" button on the CAN trackpad to turn auto synchronization on or off. When the sync LED is yellow, the "SYNC"
button has been pressed, but the conditions are not right for auto synchronization to engage. When the sync LED turns red,
engine synchronization has been engaged. The engines will remain synchronized as long as engine speed is over 900 RPM for
two seconds, remote control handles are positioned within 10% of each other, and the engines are below 95% throttle opening.
To disengage the auto synchronization feature, press the "SYNC" button.
SYNC
1 LEVER
NEUTRAL
TROLL
THROTTLE
ONLY
DOCK
TRANSFER
+
-
22590
N
E
U
T
R
A
L
22133
SYNC
1 LEVER
NEUTRAL
TROLL
THROTTLE
ONLY
DOCK
TRANSFER
+
-
a
b
c
e
g
f
d
