Section 5 - Maintenance
Page 82 90-8M0074352 eng OCTOBER 2012

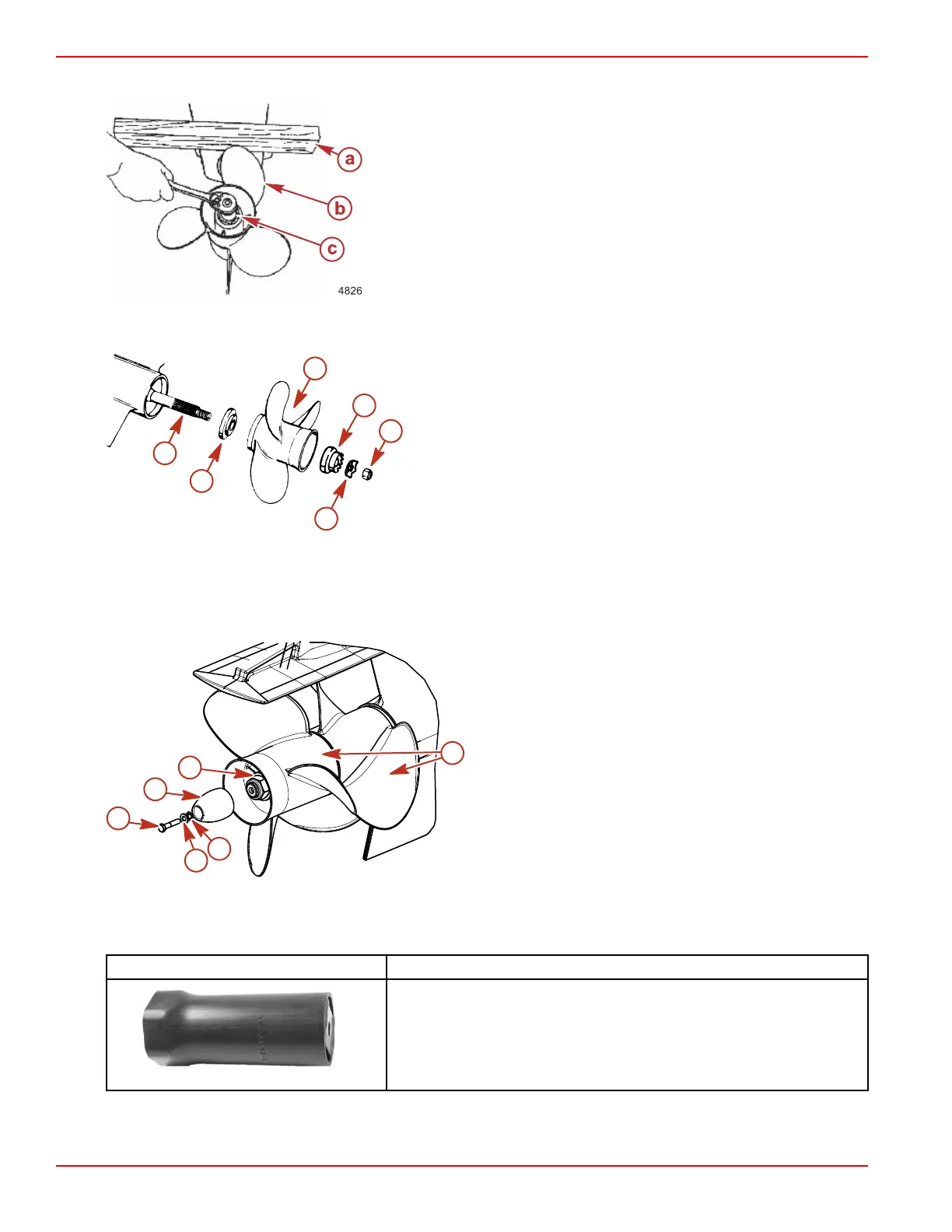

2. Place a block of wood between the propeller blade and the sterndrive's anti‑ventilation plate.
a - Wood block
b - Propeller
c - Propeller nut under socket
3. Turn propeller shaft nut counterclockwise to remove nut.
4. Slide the propeller and attaching hardware from the propeller shaft.
Bravo Two
a - Propeller shaft splines
b - Forward thrust hub
c - Propeller
d - Spline washer
e - Tab washer
f - Propeller nut
Bravo Three Models
1. Place a block of wood between the propeller blade and the sterndrive's anti‑ventilation plate.
2. Remove the bolt and washers securing the propeller shaft anode.
3. Remove the propeller shaft anode.
a - Propeller
b - Propeller shaft nut
c - Propeller shaft anode
d - Propeller shaft anode screw
e - Flat washer
f - Star washer
4. Turn aft propeller shaft nut counterclockwise to remove nut.
5. Slide propeller and thrust hub off propeller shaft.
6. Use the propeller nut tool, turn the front propeller shaft nut counterclockwise and remove the nut.
Propeller Nut Tool
91‑805457T 1
Aids in the removal and installation of the front propeller nut.
8566
a
b
c
f
d
e
b
d
c
f
e
19058
a
