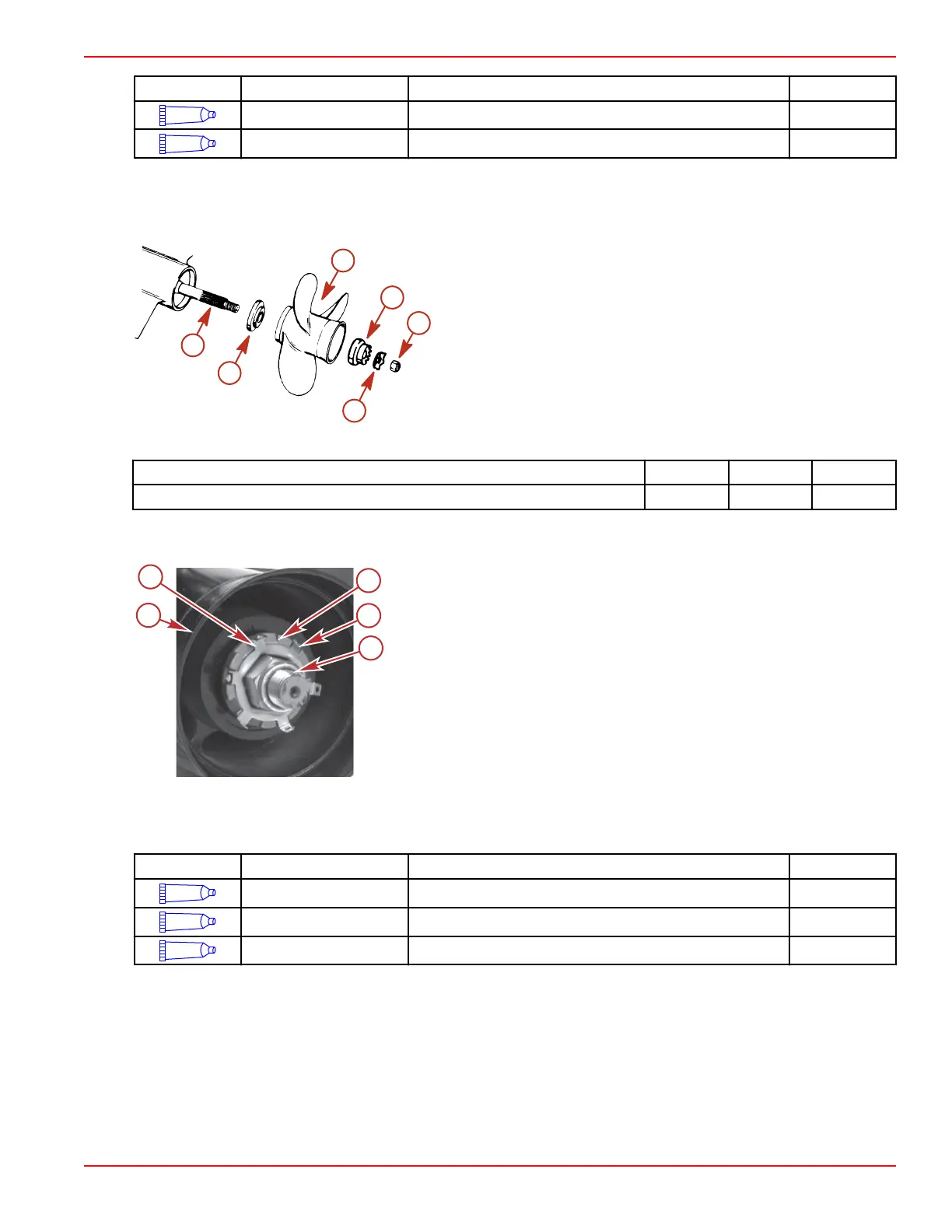

Section 5 - Maintenance
90-8M0074352 eng OCTOBER 2012 Page 85
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Propeller shaft splines 92-802859A 1
94
Anti-Corrosion Grease Propeller shaft splines Obtain Locally
NOTE: Anti‑Corrosion Grease is for saltwater applications only.
2. Install the propeller with the attaching hardware as shown.
3. Tighten the propeller nut to the specified torque.
Bravo Two
a - Propeller shaft splines
b - Forward thrust hub
c - Propeller
d - Spline washer
e - Tab washer
f - Propeller nut
NOTE: The propeller torque stated is a minimum torque value.
Description
Nm lb‑in. lb‑ft
Bravo Two propeller nut 81 – 60
4. Continue to tighten the propeller nut until the three tabs on the tab washer align with the grooves on the spline washer.
5. Bend the three tabs down into the grooves.
a - Propeller
b - Tab washer
c - Drive sleeve adapter
d - Tab bent down
e - Propeller nut
Bravo Three
1. Coat the propeller shaft spline with one of the following Quicksilver lubricants.
Tube Ref No.
Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft splines 802859A1
95
2-4-C with PTFE Propeller shaft splines 92-802859A 1
94
Anti-Corrosion Grease Propeller shaft splines Obtain Locally
NOTE: Anti‑Corrosion Grease is for saltwater applications only.
2. Slide the forward thrust hub onto the propeller shaft, with the tapered side toward the propeller hub.
3. Align the splines and place the front propeller on the propeller shaft.
4. Install the front propeller locknut and tighten using the propeller nut tool.
8566
a
b
c
f
d
e
a
b
c
d
e
4750
