Section 5 - Maintenance
Page 86 90-8M0074352 eng OCTOBER 2012
Propeller Nut Tool 91‑805457T 1
Aids in the removal and installation of the front propeller nut.
Description Nm lb‑in. lb‑ft
Bravo Three front propeller nut 136 – 100
5. Slide the aft thrust hub onto the propeller shaft with the tapered side toward the propeller hub.
6. Align the splines and install the aft propeller.
7. Install the propeller nut and tighten to the specified torque.
Description
Nm lb‑in. lb‑ft
Bravo Three rear propeller nut 81 – 60
8. Install the propeller shaft anode and the screw and tighten to the specified torque.

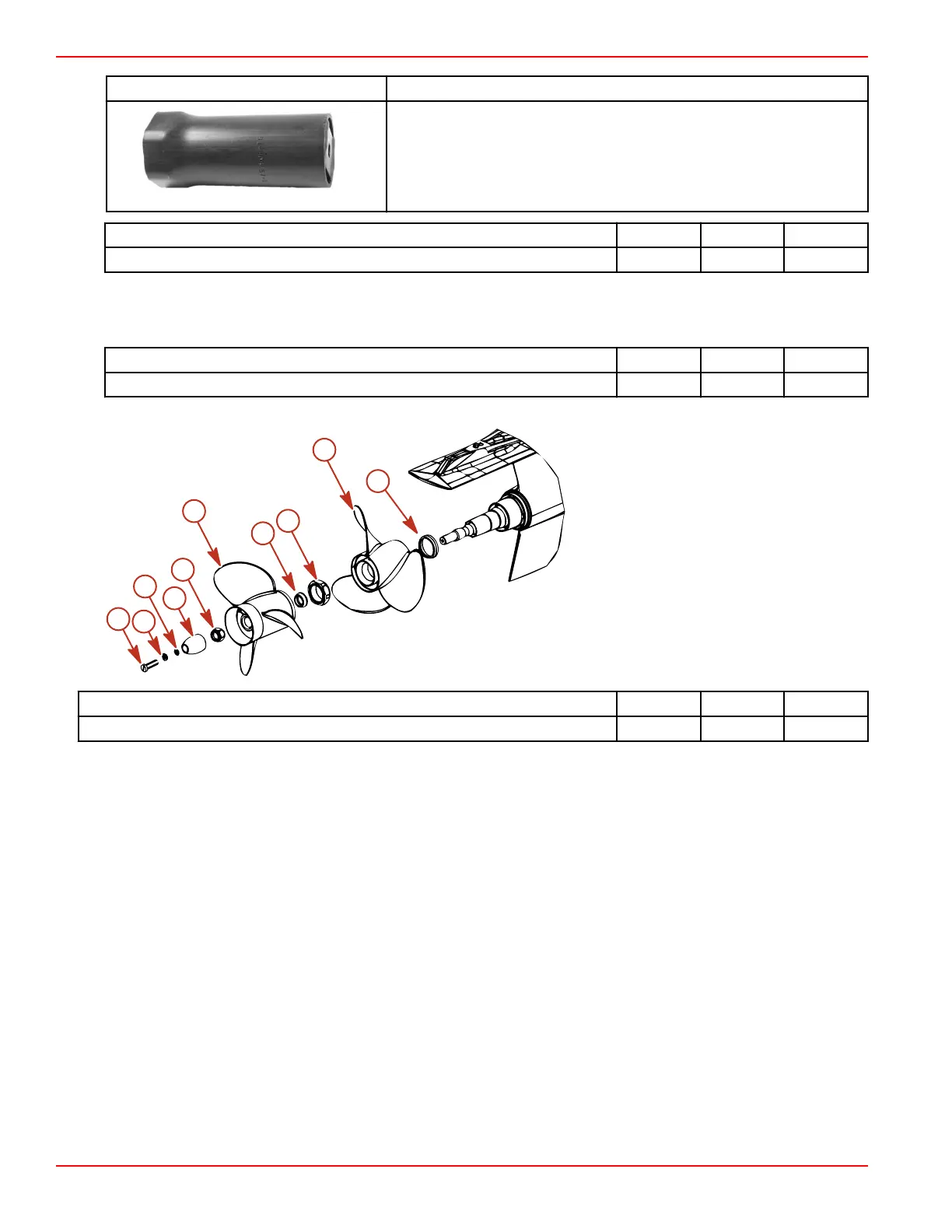

Bravo Three
a - Rear propeller nut
b - Rear propeller
c - Rear propeller thrust hub
d - Front propeller nut
e - Front propeller
f - Front propeller thrust hub
g - Propeller shaft anode screw
h - Flat washer
i - Star washer
j - Propeller shaft anode
Description Nm lb‑in. lb‑ft
Propeller shaft anode screw 19 168 –
e
f
a
b
c
d
5304
g
h
i
j
