Mercury 8.2 MAG User Manual

Section 5 - Maintenance
Page 84 90-8M0074352 eng OCTOBER 2012
3. Tighten the propeller nut to the specified torque.

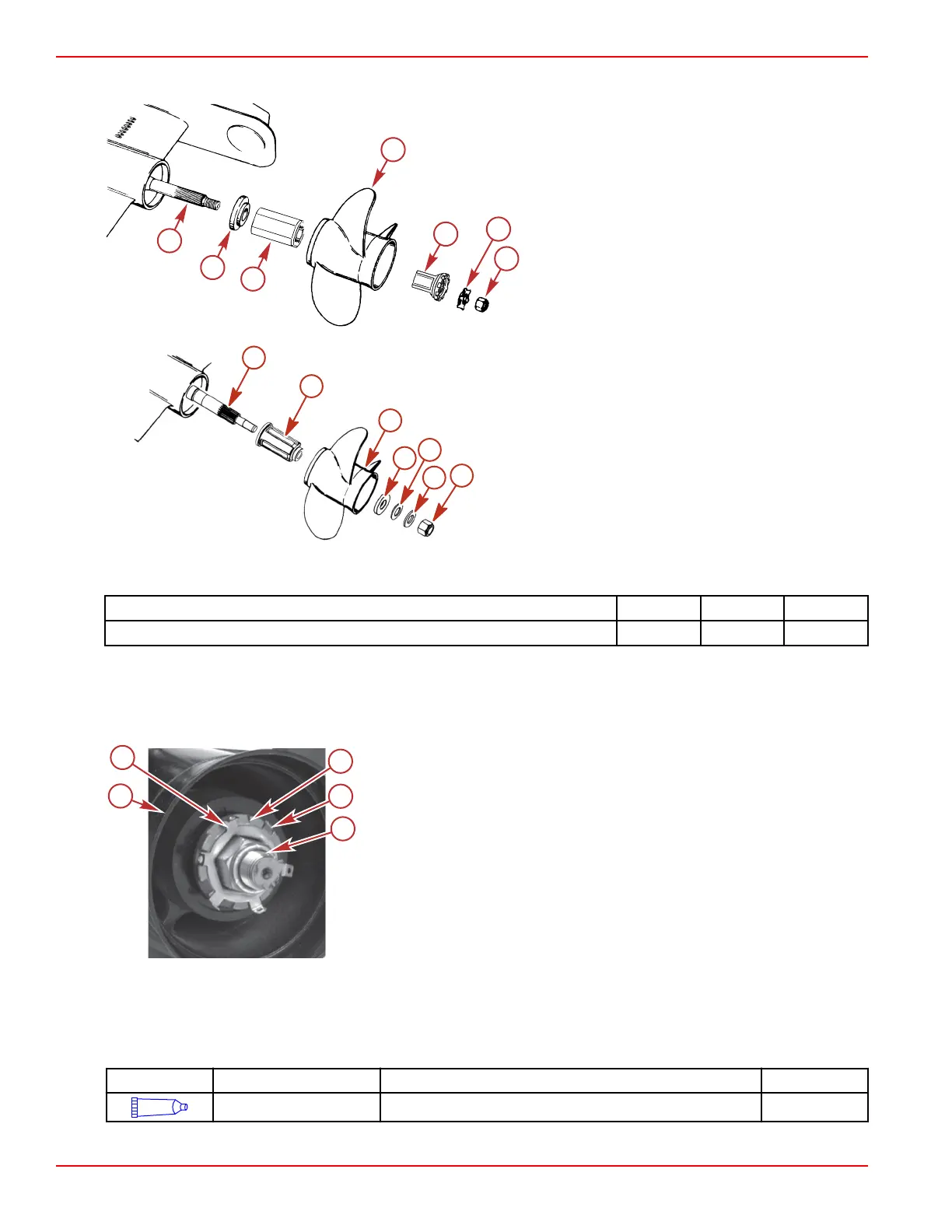

Typical Bravo One models
a - Propeller shaft splines
b - Forward thrust hub
c - Flo‑Torque II drive hub
d - Propeller
e - Drive sleeve adapter
f - Tab washer
g - Propeller nut
Bravo One XR models
a - Propeller shaft
b - Propeller hub insert with snubbers
c - Propeller
d - Thick washer
e - Washer
f - Washer
g - Propeller nut
NOTE: The propeller torque stated is a minimum torque value.
Description
Nm lb‑in. lb‑ft
Bravo One propeller nut 75 – 55
NOTE: Bravo One XR models do not use the tab washer.
4. Models equipped with the tab washer: Continue to tighten the propeller nut until the three tabs on the tab washer align with
the grooves on the spline washer.
5. Bend the three tabs down into the grooves.
a - Propeller
b - Tab washer
c - Drive sleeve adapter
d - Tab bent down
e - Propeller nut
Bravo Two Models
IMPORTANT: Use the correct rotation propeller. The propeller rotation must match the direction of rotation of the propeller
shaft.
1. Coat the propeller shaft spline with one of the following Quicksilver lubricants.
Tube Ref No.
Description Where Used Part No.
34
Special Lubricant 101 Propeller shaft splines 802859A1
a
b
c
d
e
g
f
5301
a
b
c
d
e
f
g
19816
a
b
c
d
e
4750
