Section 2 - Getting to Know Your Power Package
Page 36 90-8M0074352 eng OCTOBER 2012

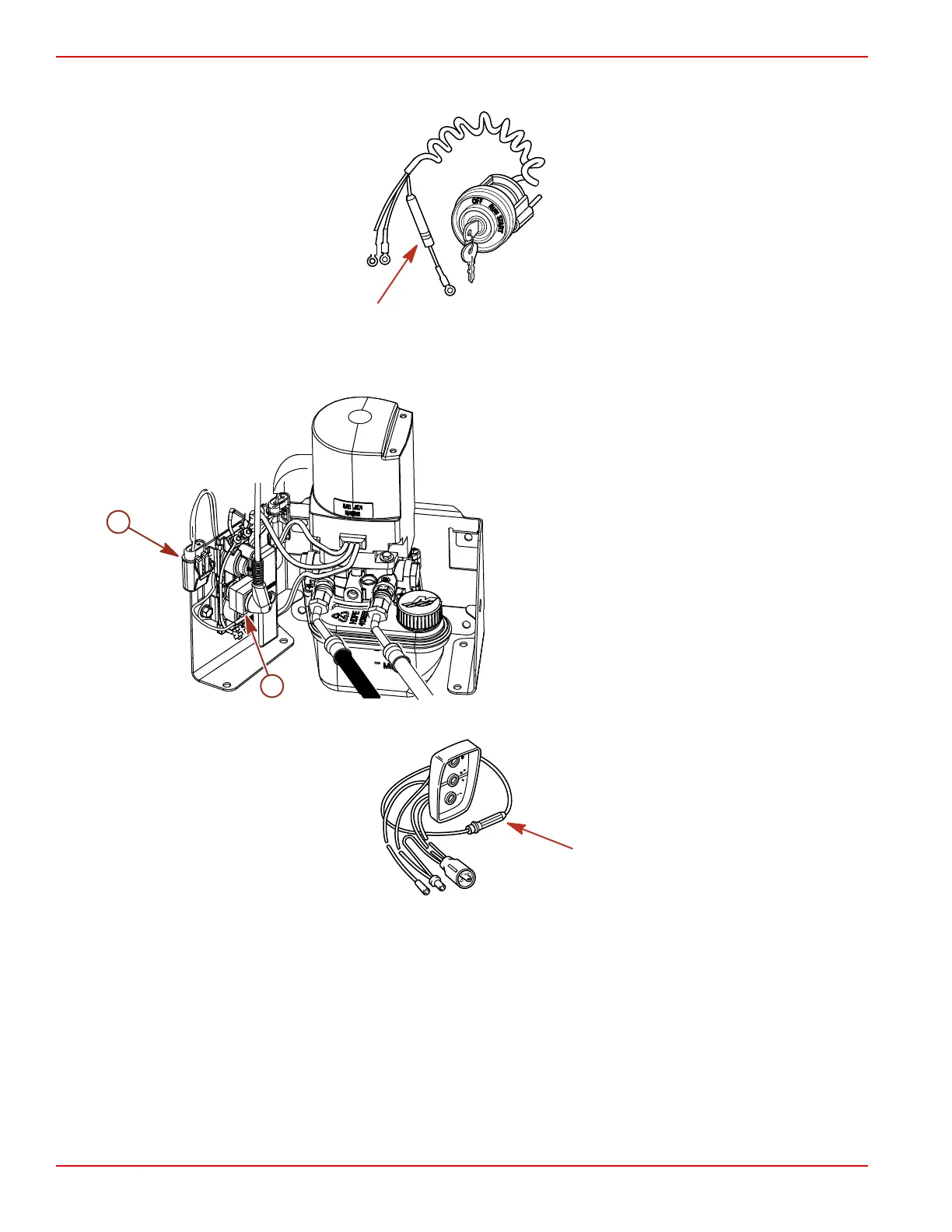

A 20‑amp fuse may be located in the ignition switch "I" terminal lead to protect the electrical system. Check for an open fuse or
an open circuit breaker if the ignition key is turned to the "START" position and nothing happens.
mc70525-1
The power trim system is protected from overload by both a 110‑amp fuse and a 20‑amp spade fuse on the power trim pump.
The trim pump may also have an in‑line circuit protection device in the power trim positive lead near the battery switch or
battery connection.
a - 20‑amp spade fuse
b - 110‑amp fuse
The three‑button power trim control panel is protected by a 20‑amp in‑line fuse.
mc70527-1
a
b
9208
