Mercury 80 Owner's Manual

OUTBOARD INSTALLATION
74

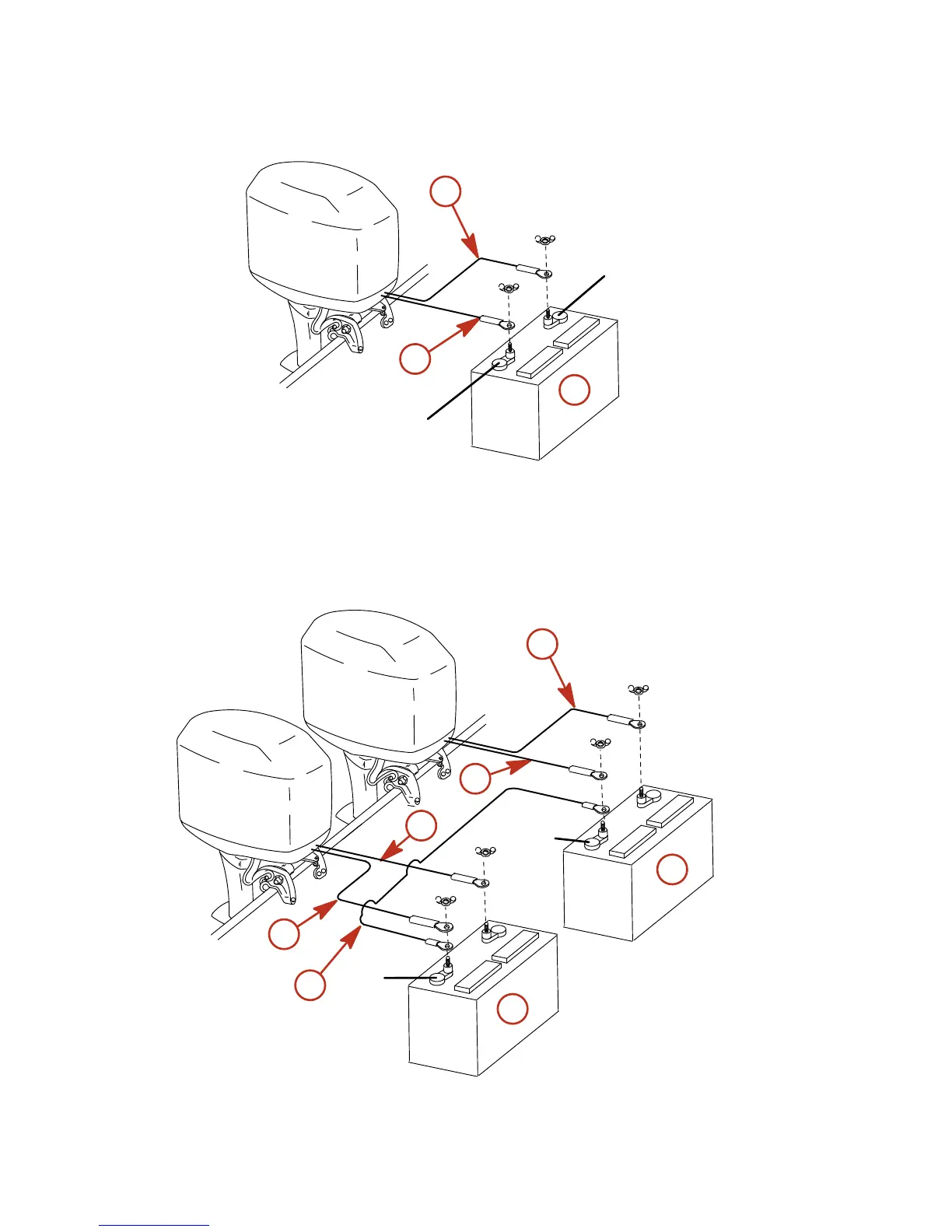

BATTERY CABLE CONNECTIONS
Single Outboard
(+)
(-)
a
b
c
or86
a - Red sleeve - positive (+)
b - Black sleeve - negative (–)
c - Cranking battery
Dual Outboards
Connect a common ground cable (wire size same as engine battery cables) between negative (–) terminals on
starting batteries.
(-)
(-)
a
a
b
b
c
d
d
or87
a - Red sleeve - positive (+)
b - Black sleeve - negative (–)
c - Ground cable
d - Cranking battery

Mercury 80 Specifications

General

Steering	Remote
Shaft Length	20 in (508 mm)
Gear Ratio	2.07:1
Horsepower	80 hp
Full Throttle RPM Range	5000-6000 RPM
Bore x Stroke	3.15 x 3.15 in (80 x 80 mm)
