ENGINE INSTALLATION
128 eng

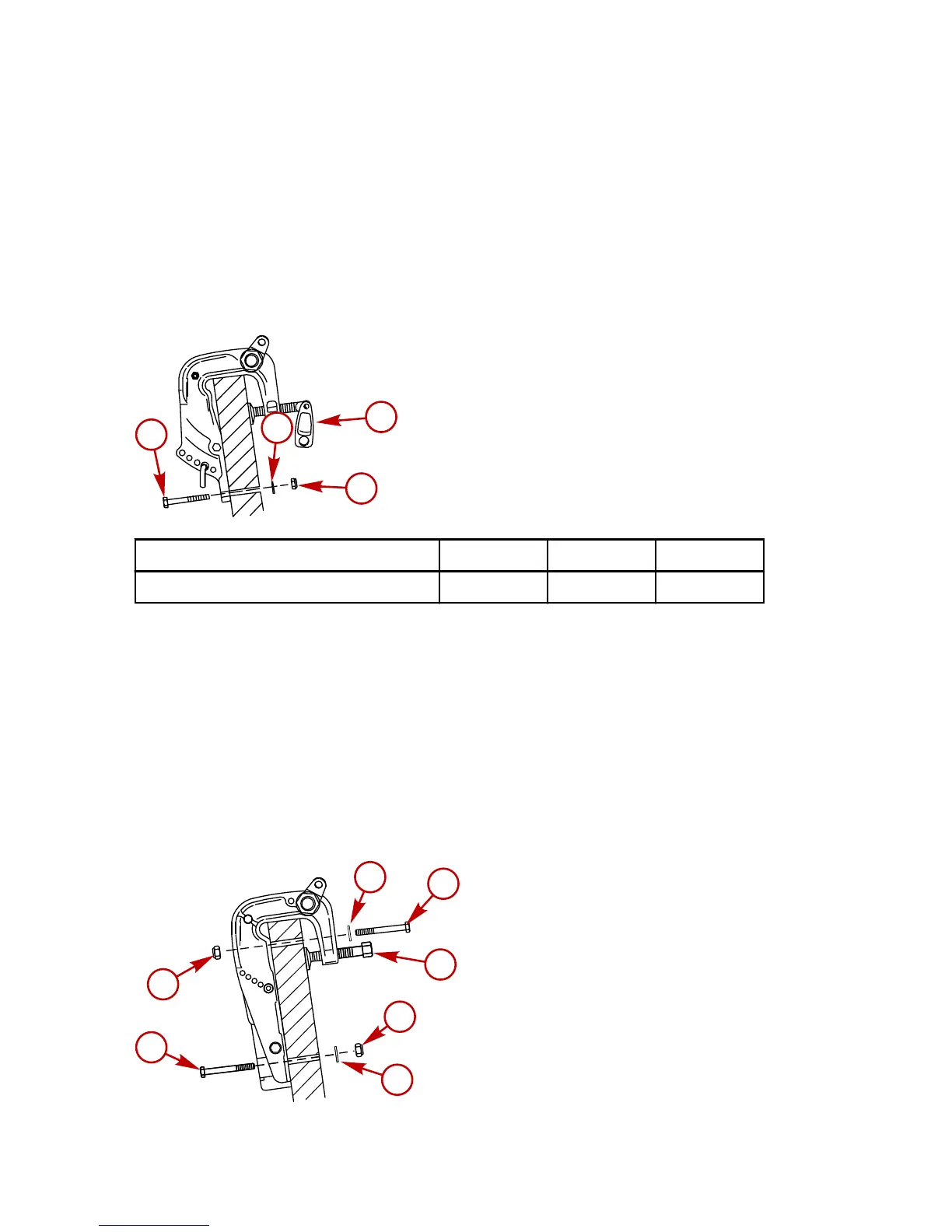

3. Non‑power tilt models ‑ To prevent a loss of the outboard,
secure the outboard to the transom with the two transom
bracket clamp screws and two mounting bolts. Drill two
7.9 mm (5/16 in.) holes through the transom bracket
mounting holes. Fasten with two bolts, flat washers, and
locknuts. Use a marine waterproofing sealer in the holes
and around the bolts to make the installation watertight.
Tighten the bolts to the specified torque.
a - Bolts (2)
b - Washer (2)
c - Locknut (2)
d - Transom bracket clamp
screws (2)
Description Nm lb. in. lb. ft.
Transom bracket mounting bolts 13.5 10
4. Power tilt models ‑ To prevent a loss of the outboard, secure
the outboard to the transom with the two transom bracket
clamp screws and four mounting bolts. Drill two 7.9 mm
(5/16 in.) holes through the upper set of transom bracket
mounting holes and drill two holes through the lower set of
mounting holes or mounting slots. Fasten with four bolts, flat
washers, and locknuts. Use a marine waterproofing sealer in
the holes and around the bolts to make the installation
watertight. Tighten the bolts to the specified torque.
a - Locknut (4)
b - Washer (4)
c - Bolts (4)
d - Transom bracket clamp
screws (2)
d
a
b
c
28971
a
b
c
a
b
c
d
38558
