Section 1 - Getting to Know the Axius System
Page 4 CMD-4082082 / 90-8M0052072 eng FEBRUARY 2011
• Engine operating hours
• And more

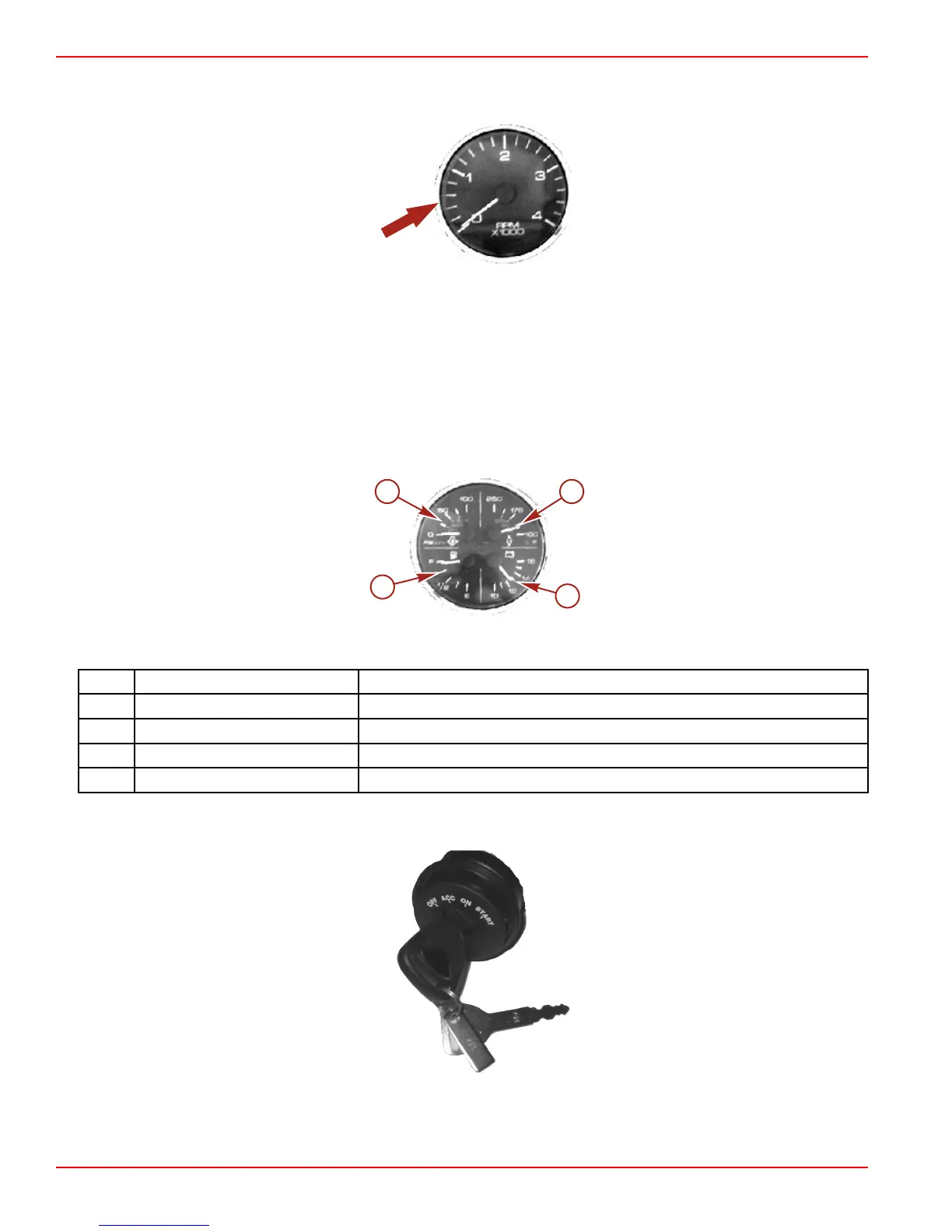

Typical SmartCraft SC100 System Link Gauge tachometer (speedometer similar)
For basic operation information on the SmartCraft instruments, refer to the manual provided with your gauge.
System Link Digital Gauges (If Equipped)
Some instrumentation packages include gauges that augment the information provided by VesselView and the SmartCraft
tachometer and speedometer. The owner and operator should be familiar with all the instruments and their functions on the boat.
Because of the large variety of instrumentation and manufacturers, have your boat dealer explain the gauges and normal readings
that appear on your boat.
The following type of digital gauge may be included with your power package.
Typical multi-function digital gauge
Item Gauge Indicates
a Oil pressure Engine oil pressure
b Water temperature Engine operating temperature
c Voltmeter Battery voltage
d Fuel level Quantity of fuel in tank
Switches
Four position key switch
•
"OFF" In the "OFF" position, all electrical circuits are off. The engine will not operate with the key switch in the "OFF" position.
