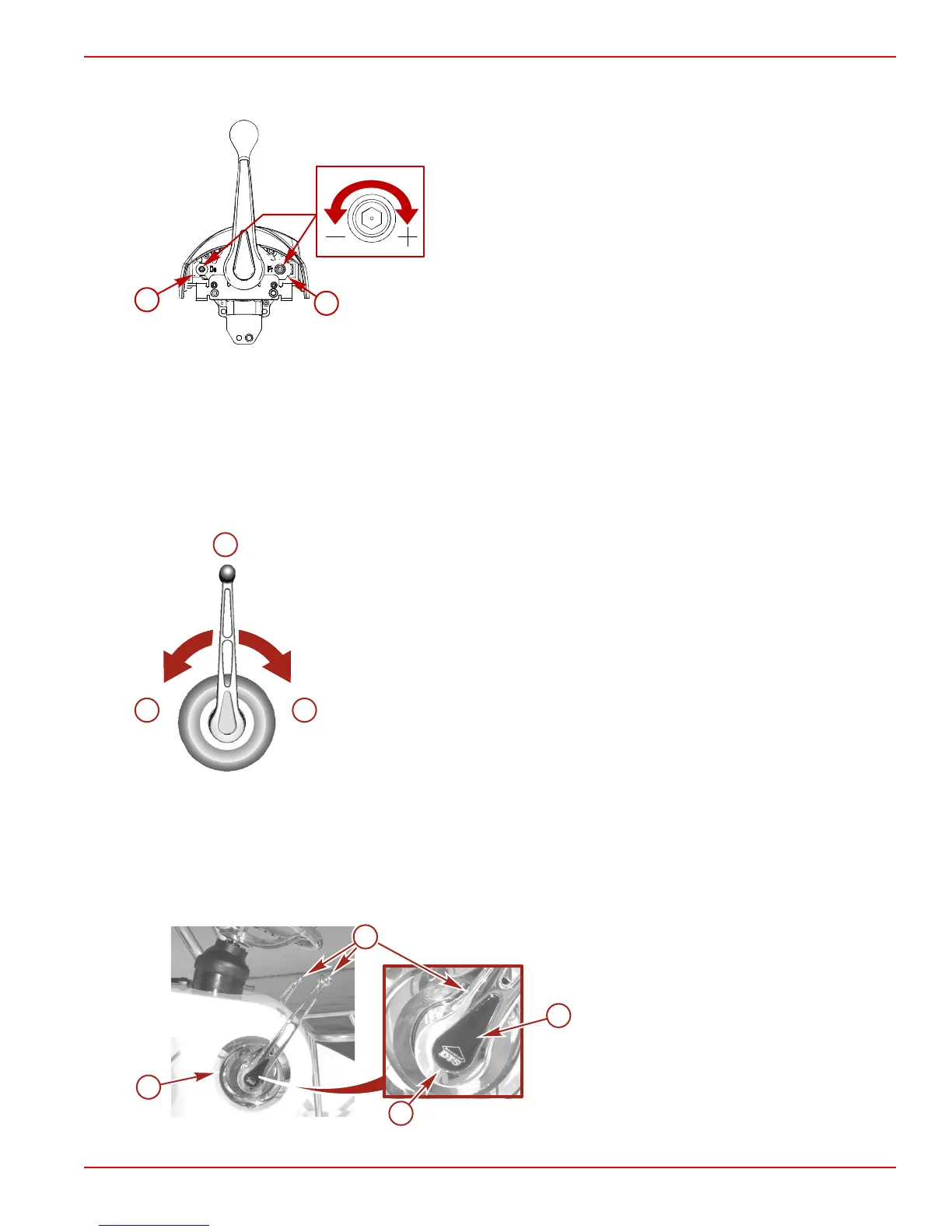

2. Detent tension adjustment screw ‑ This screw can be adjusted to increase or decrease the effort to move control handle out
of detent positions (cover must be removed). Turning the screw clockwise will increase tension. Adjust to tension desired.
a - Detent tension adjustment
b - Control handle tension adjustment
Optional SportFish Electronic Remote Control (ERC)—Operation and Adjustment
Operation
Operation of shift and throttle is controlled by the movement of the control handle. Push the control handle forward from neutral
to the first detent for forward gear. Continue pushing forward to increase speed. Pull the control handle back from neutral to the
first detent for reverse gear. Continue pulling back to increase speed.
NOTE: In certain modes, gear position is determined by the Electronic Shift Control (ESC), not the position of the ERC levers.
When using the joystick or while in Skyhook, the computer moves the drives in and out of gears even though the handles are in
neutral.
a - Neutral
b - Forward (port mounted handle). reverse (starboard mounted handle)
c - Forward (starboard mounted handle). reverse (port mounted handle)
The amount of force needed to move the ERC handle and to move the ERC handle through the detents is adjustable to help
prevent unwanted motion of the handle in rough water.
Adjustment
NOTE: The control handle tension and detent tension may require period maintenance using the adjustment screws.
To adjust the ERC handle tension or detent tension:
1. Insert a suitable tool in the slot at the bottom of the emblem cover and pry the cover off.
a -
Side cover (port mounted handle)
b - Handle
c - Emblem cover
d - Slot
