Mercury Axius System User Manual

Section 1 - Getting to Know the Axius System
Page 10 CMD-4082082 / 90-8M0052072 eng FEBRUARY 2011
2. Remove the M8 screw and washer securing the handle.
41350

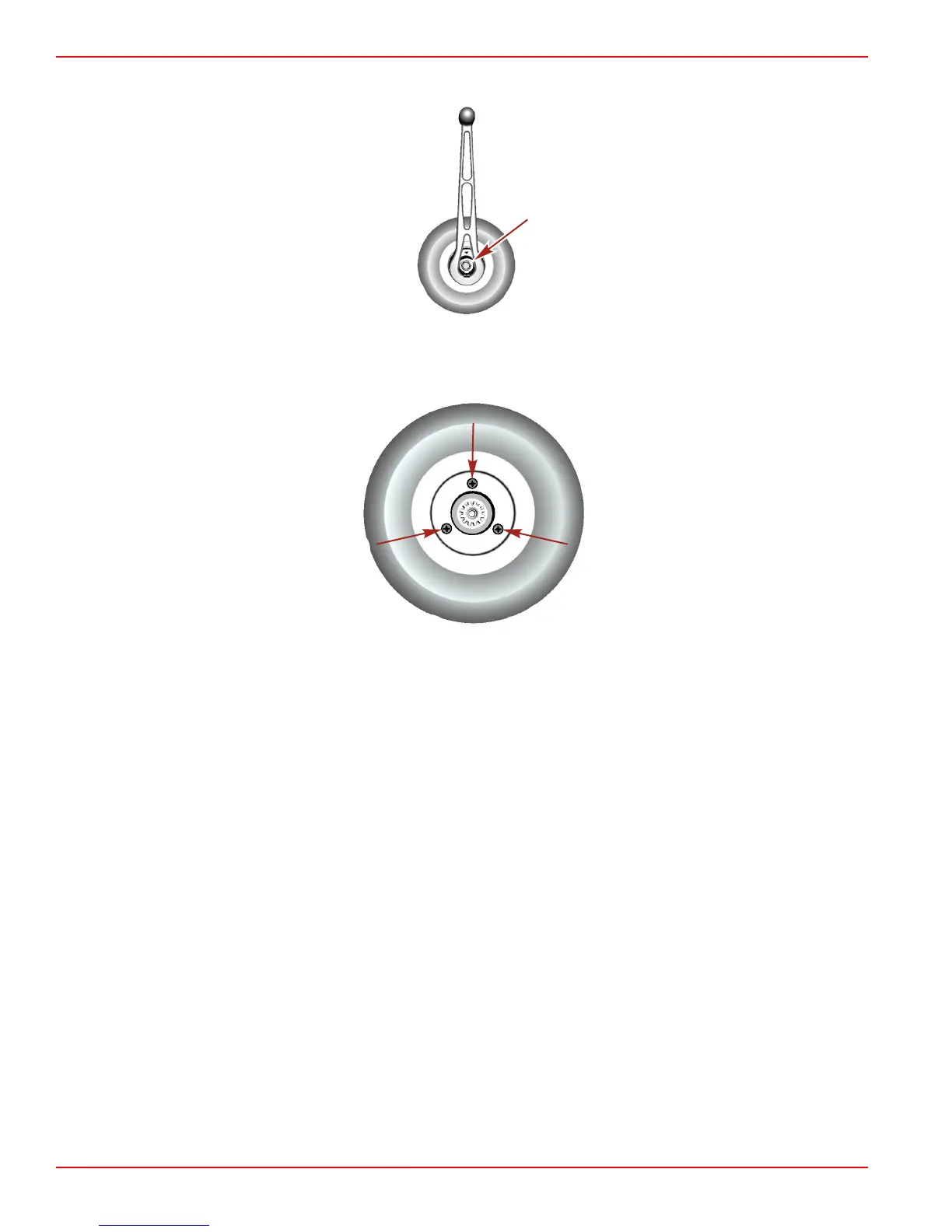

Location of handle screw and washer
3. Remove the handle.
4. Remove the three M5 screws securing the side cover.
41347
Location of side cover screws
5. Remove the side cover.
6. For adjustment, temporarily install the handle, washer and screw. Finger‑tighten the screw.
7. To adjust the ERC handle detent tension:
a. Turn the adjustment screw clockwise to increase tension on the control handle and counter‑clockwise to decrease
tension.
b. Adjust to the desired tension.
8. To adjust ERC handle tension:
a. Turn the adjustment screw clockwise to increase tension on the control handle and counter‑clockwise to decrease
tension.
