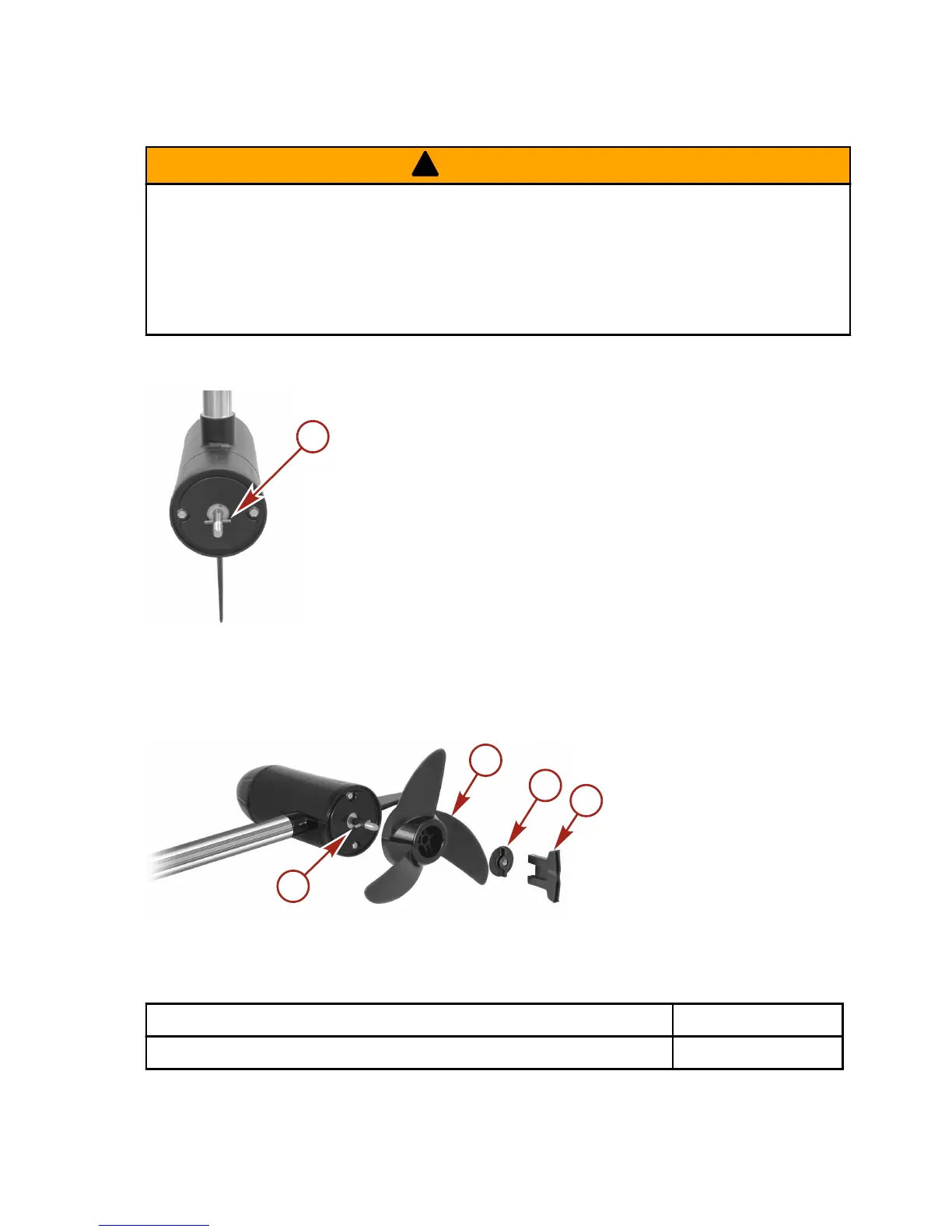

Installing the Propeller
!
WARNING
Performing service or maintenance without first disconnecting the
battery can cause product damage, personal injury, or death due to
fire, explosion, electrical shock, or unexpected motor starting.
Always disconnect the battery cables from the battery before
maintaining, servicing, installing, or removing motor components.
1. Rotate the motor shaft to insert the propeller pin horizontally.
a - Propeller pin
2. Install the propeller onto the motor shaft by engaging the
propeller onto the propeller pin.
3. Install the propeller nut. Tighten securely.
a - Propeller pin
b - Propeller
c - Propeller nut
d - Propeller
wrench
4. Use a MotorGuide propeller wrench or pliers to tighten the
propeller nut another ¼ turn.
Recommended MotorGuide Accessory Description
Part Number
MotorGuide prop wrench kit MGA050B6
