Mercury Freshwater - Trolling Motor Operation

TROLLING MOTOR OPERATION
26 eng

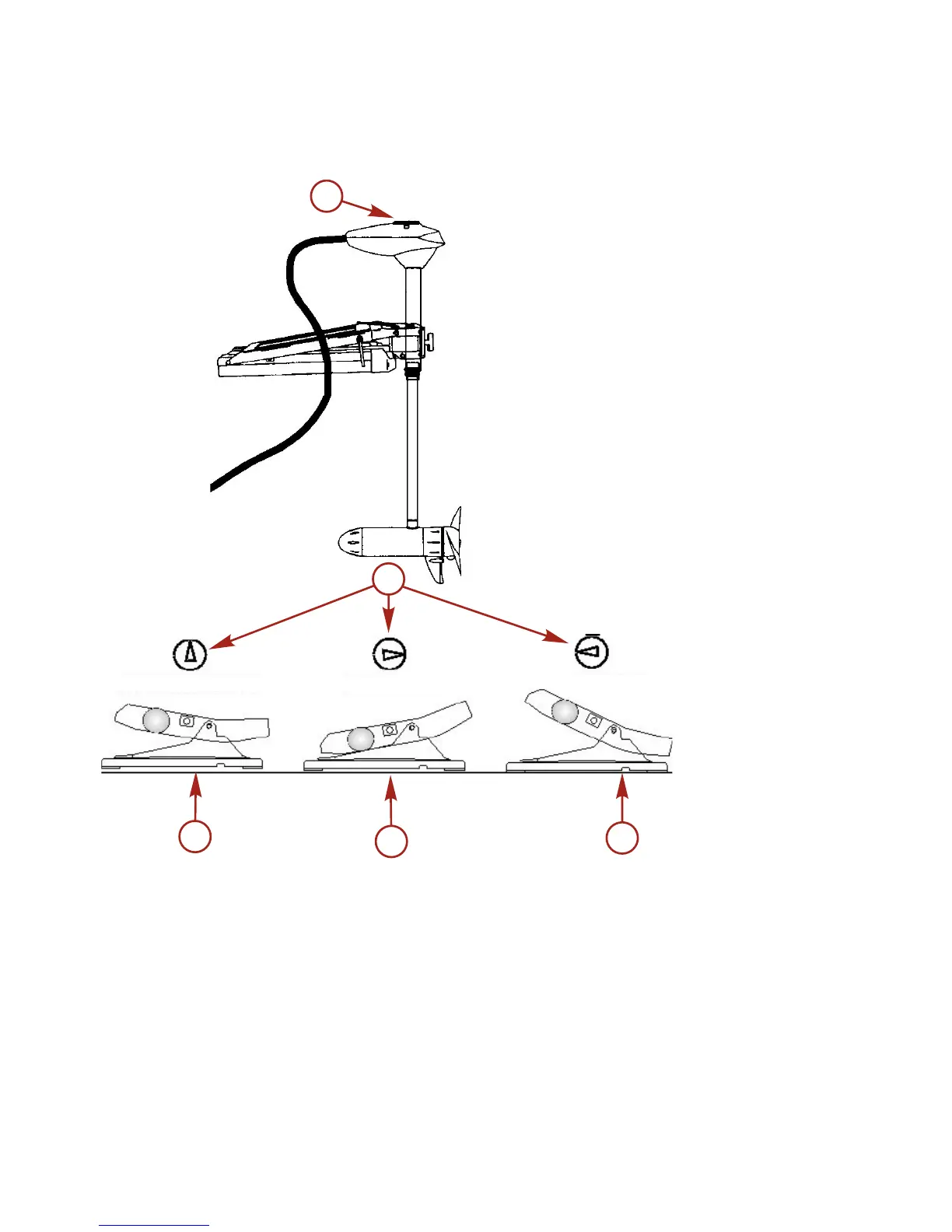

Directional Indicator
The indicator provides directional information at a glance.
a - Straight ahead ‑ foot pedal in middle
b - Right turn ‑ toe down; motor steers boat to right (continue to
push all the way down for reverse)
c - Left turn ‑ heel down; motor steers boat to left (continue to
press all the way down for reverse)
d - Directional indicator arrows
e - Directional indicator
46285
e
d
a
b
c
