BOW MOUNT OPERATION
eng 21
Installing the Motor into the Mount
1. Turn the bracket door knob counterclockwise and open the
bracket door.
2. Place the motor column into the bracket and close the door.
3. Turn the bracket door knob clockwise to tighten the motor column
in the bracket.

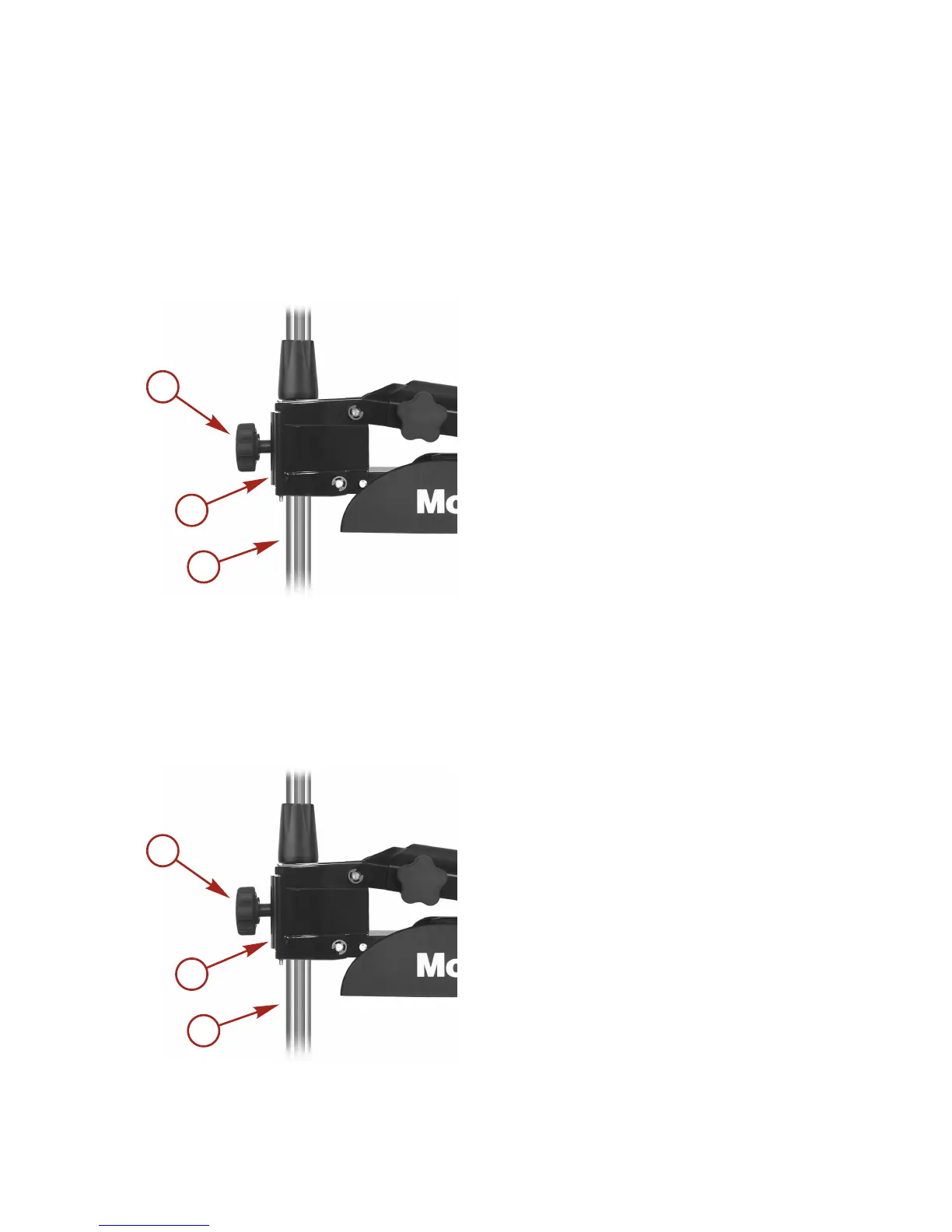

a - Motor column
b - Bracket door
c - Bracket door knob
Removing the Motor from the Mount
1. Turn the bracket door knob counterclockwise to loosen and open
the bracket door.
2. Remove the motor column from the bracket and close the door.
a - Motor column
b - Bracket door
c - Bracket door knob
