TROLLING MOTOR OPERATION
eng 27
Speed Control
FIVE-SPEED AND VARIABLE SPEED MOTORS
Foot operated motors are either five‑speed or variable speed models.
Control the speed of your motor by rolling the speed control knob with
your hand or foot until you reach the desired speed.
•
Five‑speed motor: The speed control knob on a five‑speed
motor is numbered 1–5 and allows you to select one of five
preset speeds.
•
Variable speed motor: The speed control knob on a variable
speed motor allows you the capability of variable speed
selections from off to high.

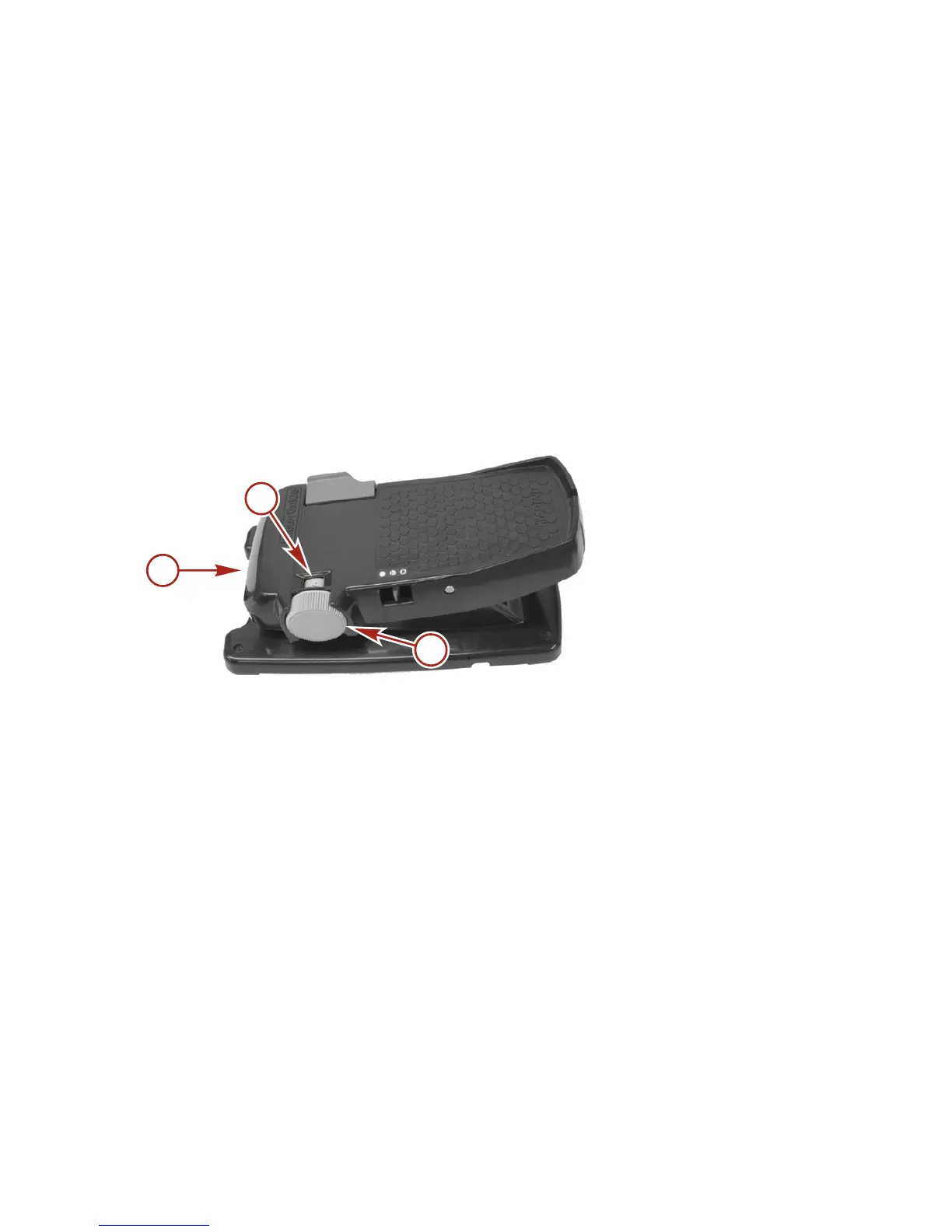

a - Foot pedal
b - Speed select
window (1–5)
c - Speed control
knob
Constant/Momentary/High‑Bypass
Momentary switch: The momentary switch is located on the top right
side of the foot pedal. The momentary switch works in conjunction
with the three‑position switch when it is in momentary or high‑bypass
position.
Three‑position switch: This three‑position switch provides three
options for operating the motor: constant on, momentary, and
high‑bypass.
•
Constant on: This allows the motor to run continuously at the
speed selected by the speed control knob without the use of the
momentary switch.
•
Momentary: This allows the motor to activate with the
momentary switch at the speed selected by the speed control
knob.
