Mercury Freshwater User Manual

WIRING AND BATTERY
eng 17
Connect the black battery lead from the power cable to the negative
(–) post on battery A. Connect the red battery lead from the power
cable to the positive (+) post of battery C. Connect a jumper wire
between the positive (+) post of battery A to the negative (–) post of
battery B. Connect another jumper wire between the positive (+) post
of battery B to the negative (–) post of battery C. Install a 50 amp
circuit breaker in line with the positive battery lead.

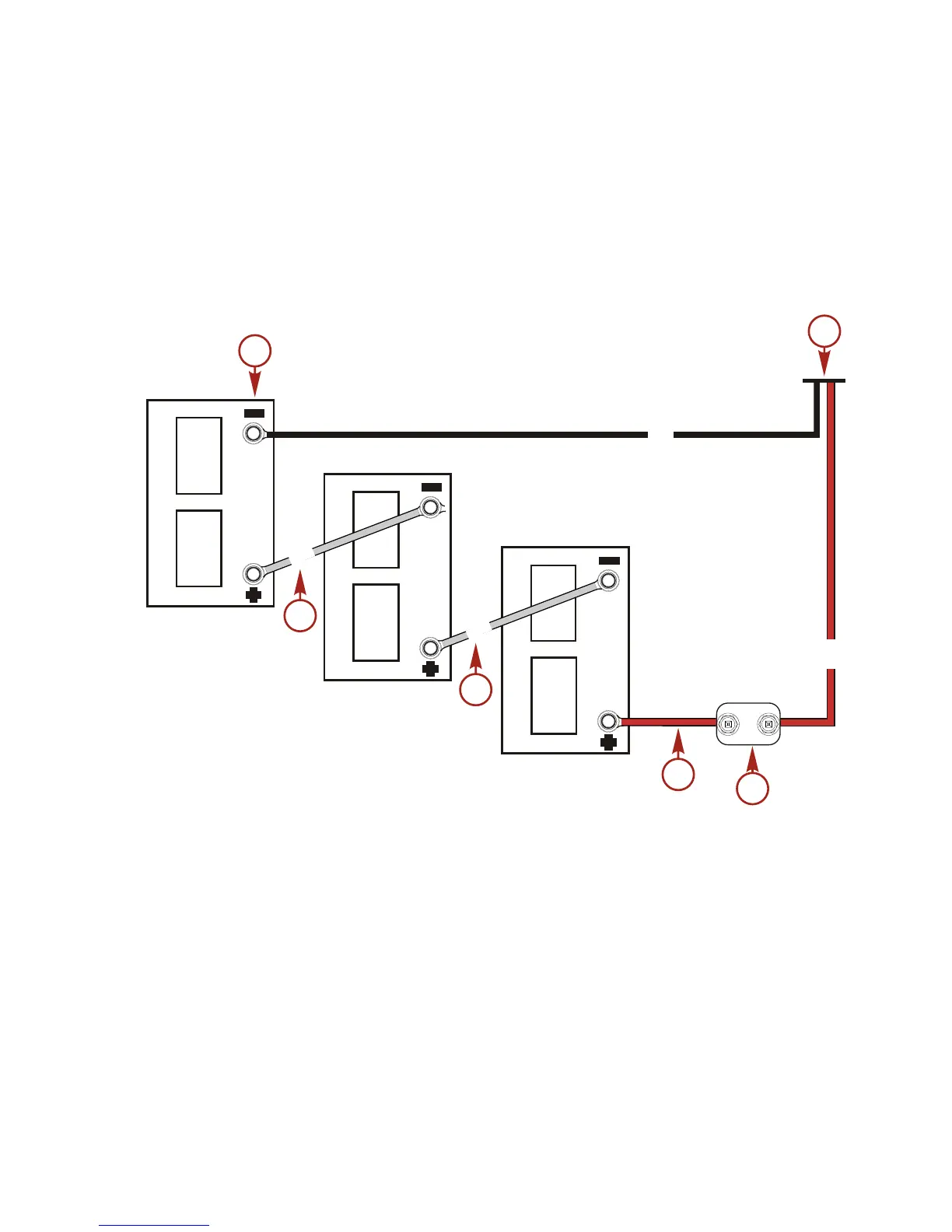

36 volt battery hookup
a - Power cable
b - 50 amp manual reset circuit breaker
c - Jumper wire
d - Common ground
RED
BLK
37825
GRY
c
Battery B
Battery C
Battery A
GRY
c
a
b
c
d
