Mercury INSTALLATION MANUAL D7.3L D-TRONIC - Finding Crankshaft Vertical Centerline; DUAL ENGINE

D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 24 of 90
Finding Crankshaft Vertical Centerline
SINGLE ENGINE

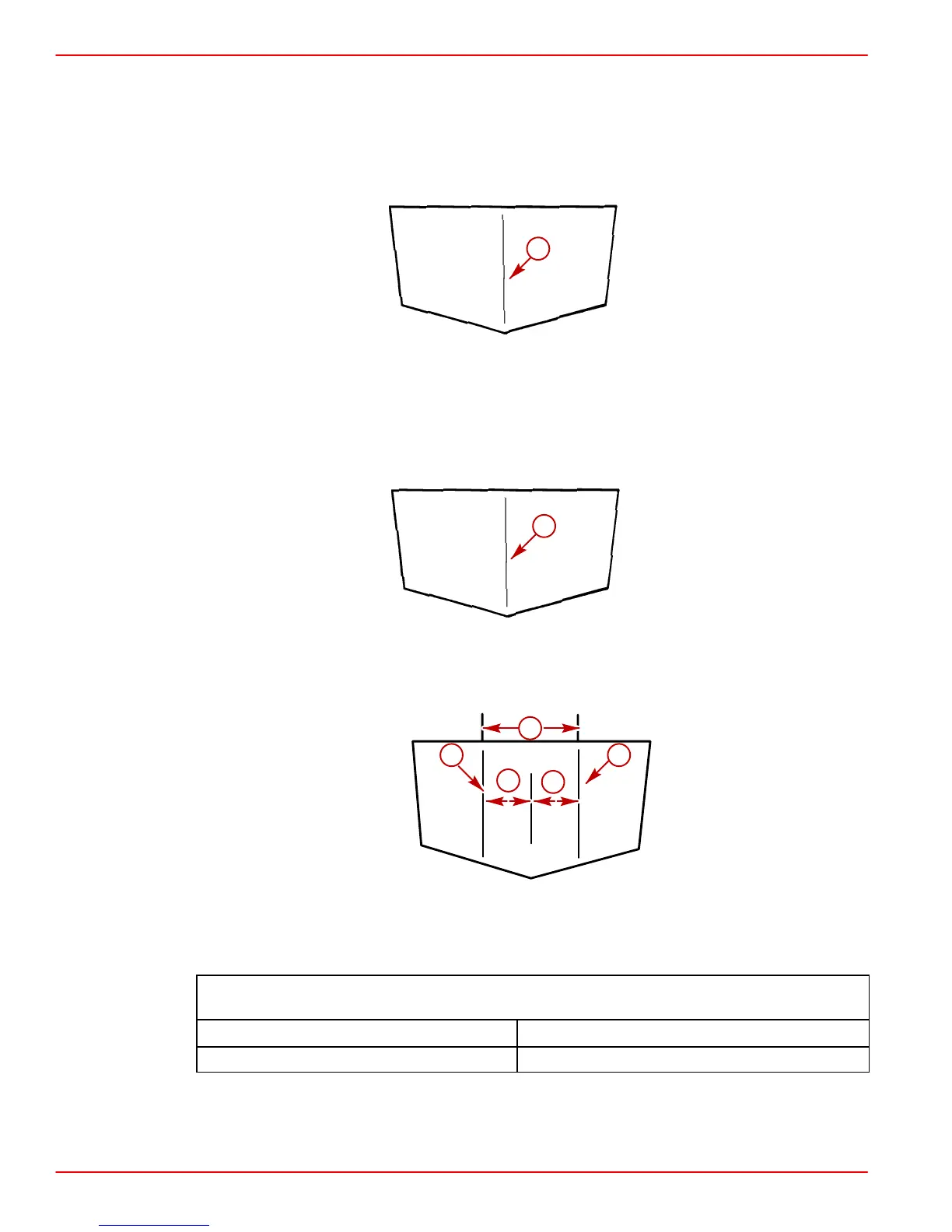

Locate and mark vertical centerline on transom.
71620
a
a-Vertical Centerline
DUAL ENGINE
1. Locate and mark boat vertical centerline (a) on transom.
71620
a
a-Vertical Centerline
2. Locate and mark crankshaft vertical centerlines (a) on transom.
22033
b
a a
c
c
a-Draw Crankshaft Vertical Centerline through Desired Mounting Locations
b-Minimum Distance between Crankshaft Vertical Centerlines
c-Crankshaft Vertical Centerlines Must Be an Equal Distance from Boat Vertical
Centerline
Minimum Distance Between Crankshaft
Vertical Centerlines (Dual Side-By-Side) Chart
Model Measurement [ in. (mm) ]
D7.3L D-Tronic and D7.3L D-Tronic LD 36-1/2 (927)
