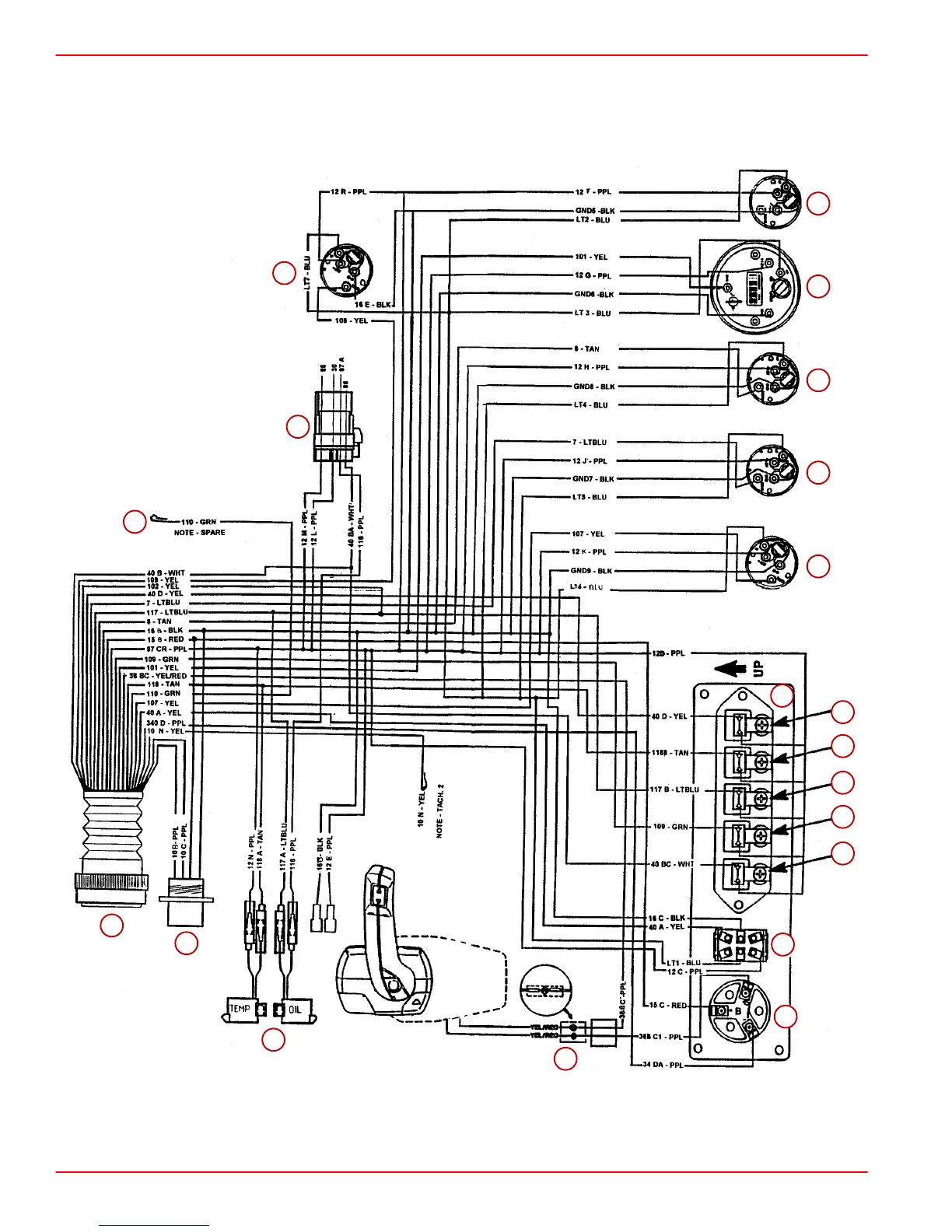

Mercury INSTALLATION MANUAL D7.3L D-TRONIC - Quicksilver Instrumentation Wiring

BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN=Tan
WHT = White
YEL = Yellow
LIT = Light
DRK = Dark
15
1
5
4
3
2
a
b
c
d
e
7
8
9
10
11
12
13
14
6
D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 86 of 90
Quicksilver Instrumentation Wiring
