D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 49 of 90

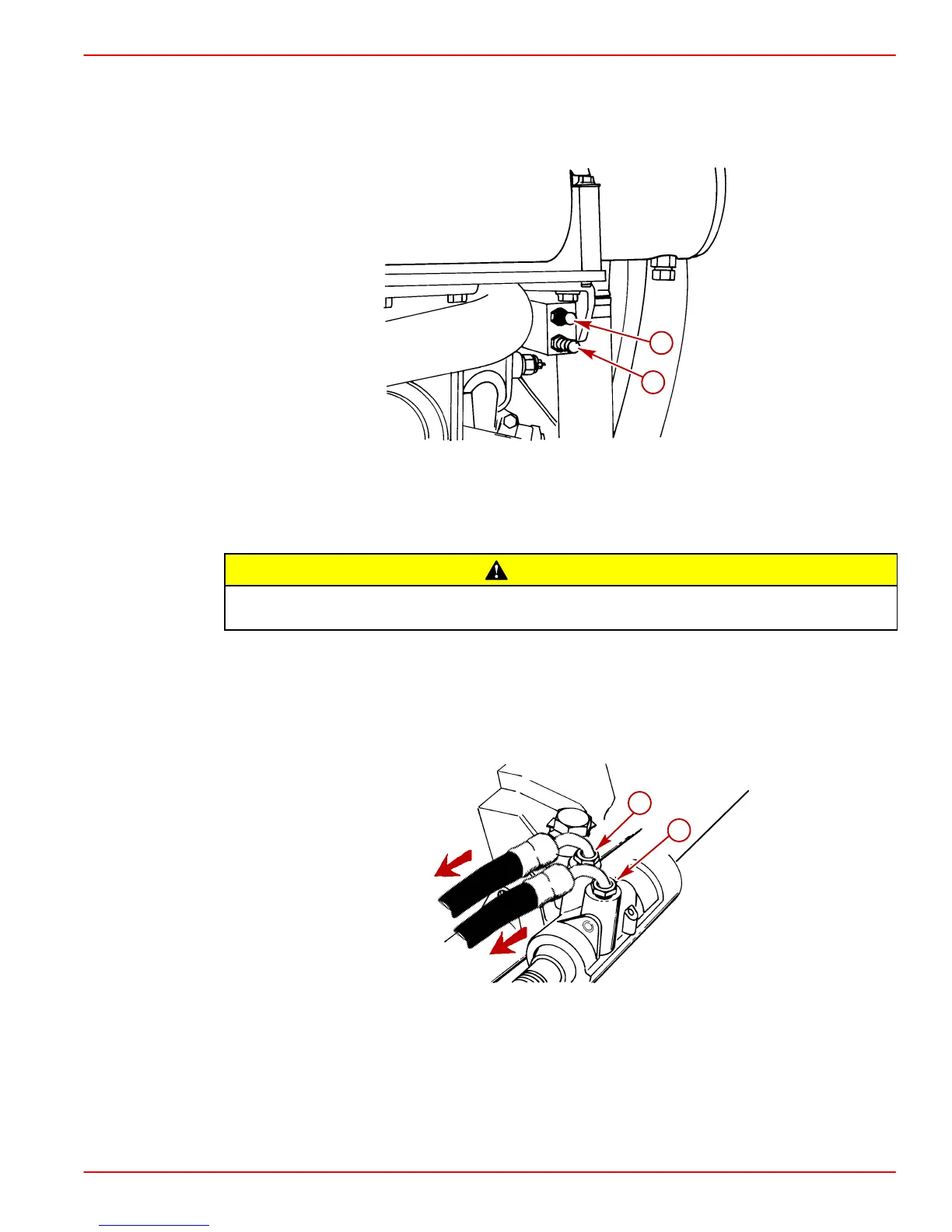

Fuel Lines
1. Connect flexible fuel line to fuel supply fitting. Secure with hose clamp.
2. Connect flexible fuel line to fuel return fitting. Secure with hose clamp.
76027
a
b
a-Fuel Supply Fitting
b-Fuel Return Fitting
Power Steering Hydraulic Hoses
CAUTION
Route hoses exactly as shown below. This will help avoid stress on the hose fittings
and will help avoid kinks in the hose.
1. Connect power steering hoses to control valve. Position hoses as shown.
IMPORTANT: Make hydraulic connections as quickly as possible to prevent oil
leakage.
IMPORTANT: Be careful not to cross-thread or overtighten hose fittings.
71902
a
b
a-Rear Fitting (Pressure Hose)
b-Front Fitting (Return Hose)
2. Torque fittings to 20 - 25 lb-ft (27 - 34 Nm).
3. Secure hoses to avoid contact with moving components.
