D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 32 of 90
Steering System
NOTE: For Dual Installations, Power steering unit can be mounted on port or starboard
transom assembly. Measure exact distance between power package centerlines. Select a
tie bar from Quicksilver Accessory Guide. Refer to tie bar installation instructions before pro-
ceeding.

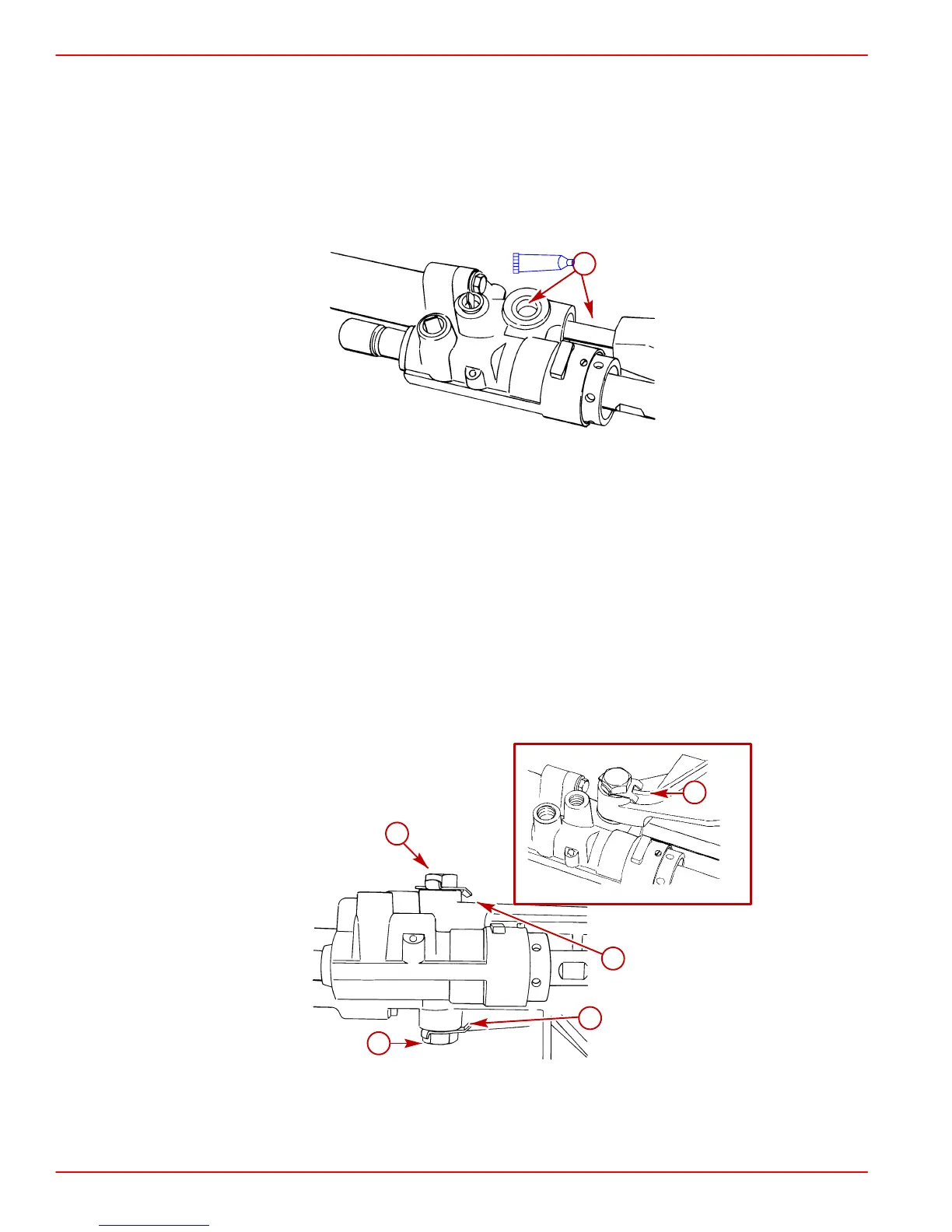

1. Inspect bushings for debris. Lubricate bushings with Special Lubricant 101.
73898
a
B
a-Bushings
b-Special Lubricant 101
2. Remove upper and lower pivot bolts and ensure threads are well lubricated with Special
Lubricant 101.
3. Install steering assembly as follows:
a. Position steering assembly so that pivot bolts will enter bushings in pivot block or
power steering control valve.
b. Install upper and lower pivot bolts along with tab washers. Ensure that tab washer
tangs straddle the ridge on inner transom plate.
c. Turn pivot bolts all the way in by hand to ensure proper alignment.
d. Ensure steering assembly pivots freely.
73900
73899
b
c
a
a
c
a-Tab Washers
b-Ridge
c-Pivot Bolts
