D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 61 of 90
76025
a
b
c
d

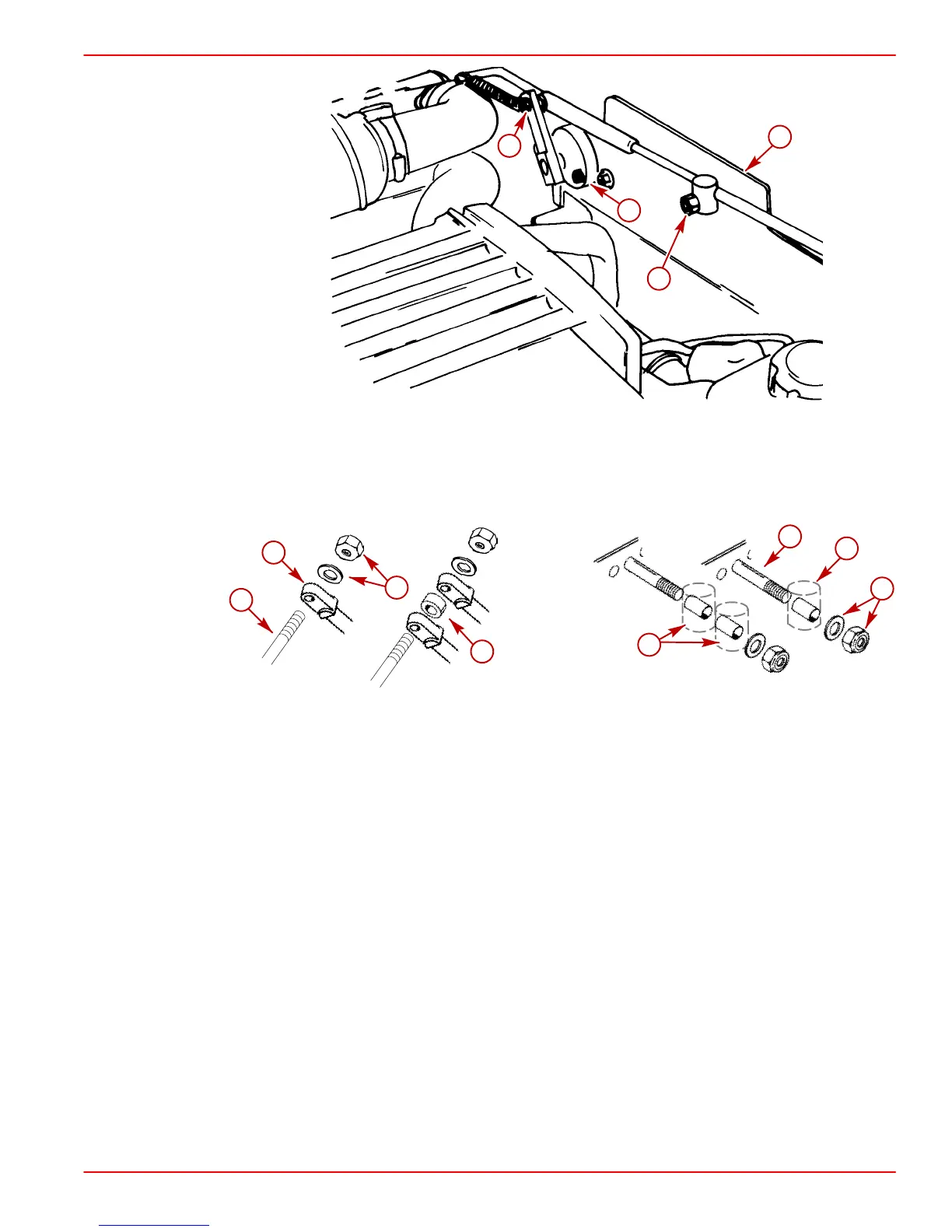

Single Cable Shown (Dual Similar)
a-Accelerator Position Sensor (APS/IVS)
b-APS/IVS Anchor Stud
c-Cable Barrel End Bracket
d-Cable Barrel Anchor Stud
b
c
d
d
a
c
e
e
a-Throttle Cable End Guide
b-Cable Barrel
c-Anchor Stud
d-Flat Washer and Locknut
e-Spacer - With Dual Cables
f-Cable Barrel Locations - With Dual Cables
4. Tighten locknuts until they bottom and back off 1/2 turn.
5. Place remote control lever in full forward wide-open-throttle (W.O.T.) position.
6. Check to ensure Accelerator Position Sensor lever is contacting internal “override”
spring. Be certain that the cable is not causing the Accelerator Position Sensor to be
“over-pulled”. Check to ensure that remote control and cable are providing proper out-
put.
7. Place remote control lever in neutral/idle position and, if necessary, readjust throttle
cable barrel.
8. Recheck that (when operated) Accelerator Position Sensor lever contacts internal over-
ride spring, indicating “W.O.T.” (Wide Open Throttle) or 100% throttle position.
