D7.3L D-TRONIC DIESEL ENGINES - BRAVO MODELS
Page 74 of 90
2. Install propeller with attaching hardware as shown. Tighten nut a minimum of 55 lb-ft (75
Nm), then continue to tighten until 3 tabs on the tab washer align with grooves on spline
washer. Bend the 3 tabs down into grooves.
75492
a
b
c
f
h
e
g
d

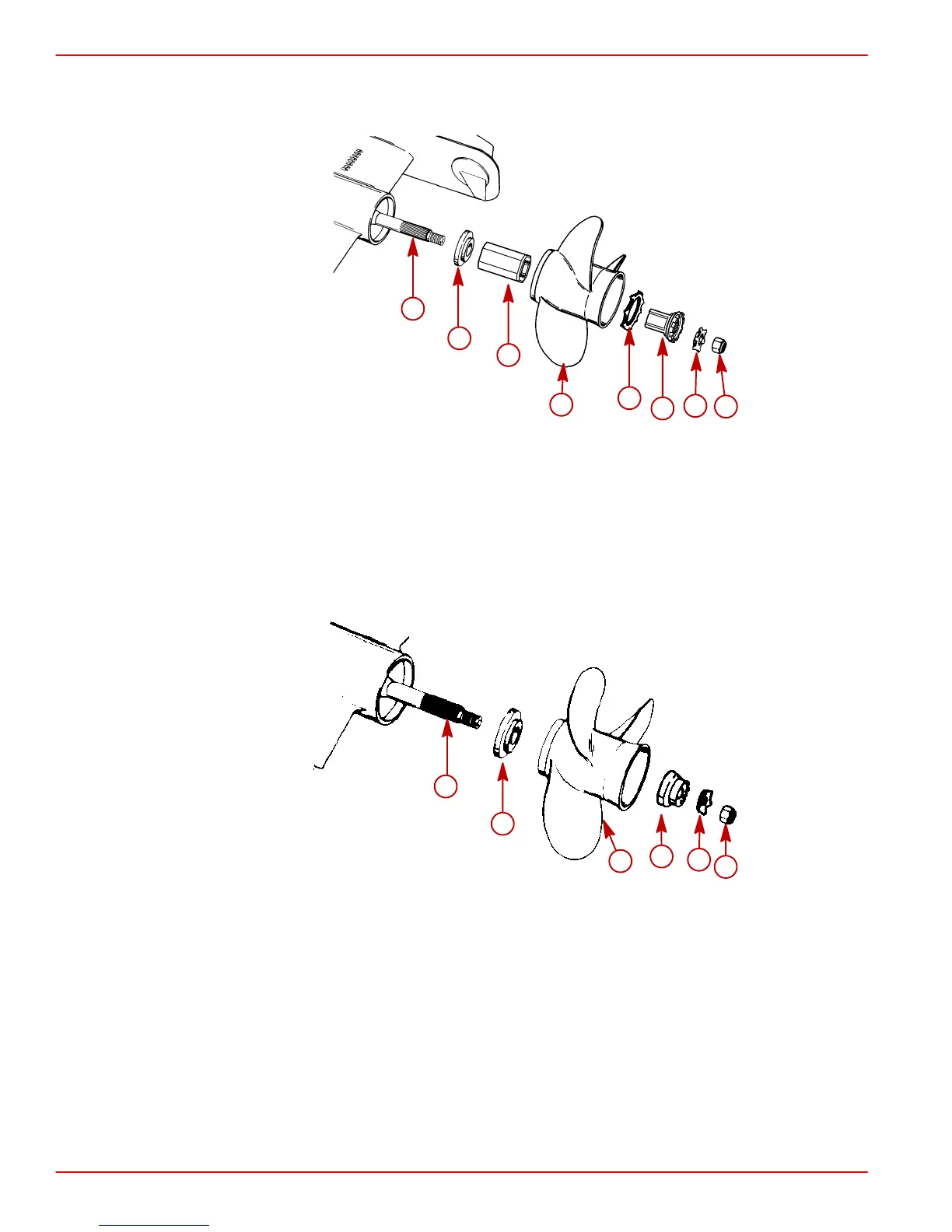

Bravo One
a-Forward Thrust Hub
b-Flo-Torque Drive Hub
c-Propeller
d-Continuity Washer
e-Drive Sleeve Adapter
f-Tab Washer
g-Locknut
70561
a
b
c
d
e
f
Bravo Two
a-Apply Lubricant on Splines of Propeller Shaft
b-Forward Thrust Hub
c-Propeller
d-Continuity/Spline Washer
e-Tab Washer
f-Locknut
