HURTH V-DRIVE TRANSMISSION

SERVICE MANUAL NUMBER 23

90-861326--1 MARCH 1999 Page 8D-15

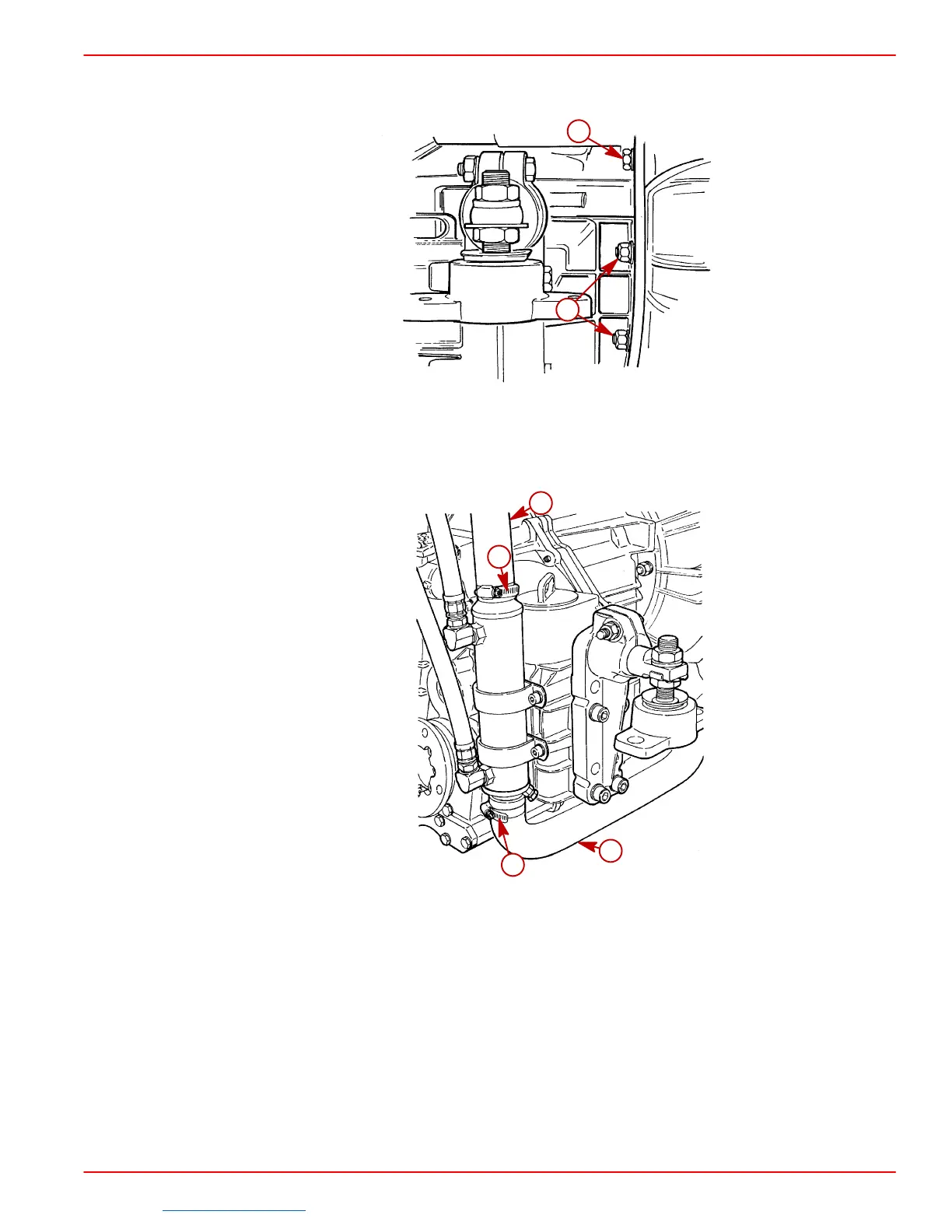

2. Install transmission on flywheel housing and secure with hardware shown. Torque fas-

teners to 50 lb. ft. (68 N·m).

72720

a-Bolts (2), One On Each Side

b-Locknuts (4), Two On Each Side

3. Connect seawater hoses to transmission fluid cooler and tighten hose clamps securely.

72711

a-Seawater Hoses

b-Hose Clamps
