INSTALLATION MANUAL
90-864198020 Page 13 of 77
NOTE: Some installations may have 7/32 in. (5 mm) holes drilled in transom using four 5/16
in. diameter stainless steel lag bolts in place of round head screws. In any case, flat washers
and O-rings are required as outlined.
72641
a
b

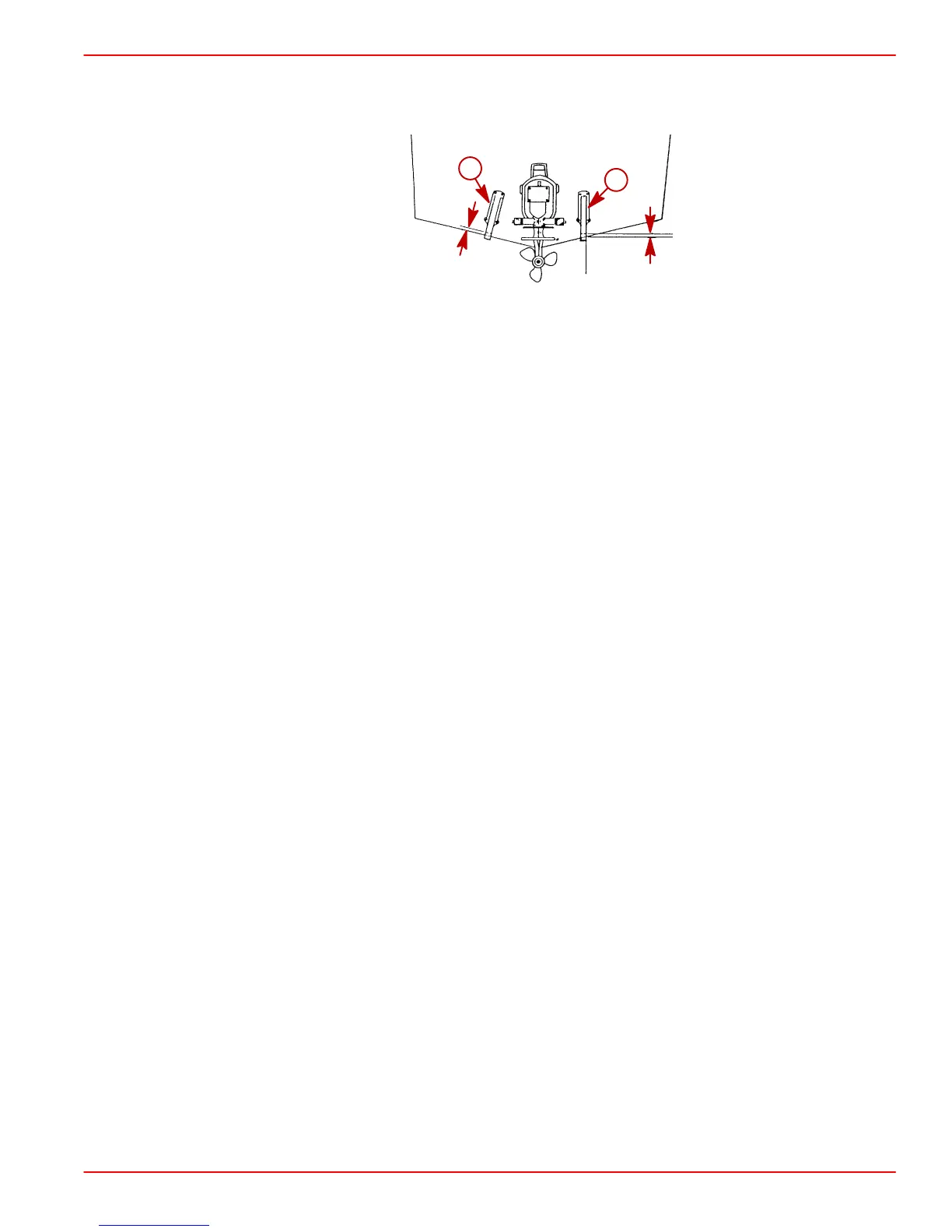

Water Pickup Installed on Transom
a-Diagonal Mount - Leading Edge Of Pickup 1/8 in. (3.2 mm) From Boat Bottom.
b-Vertical Mount - Corner Of Leading Edge Of Pickup 1/8 in. (3.2 mm) From Boat
Bottom
5. Secure water pickup from inside with locknuts and washers (unless using lag bolts).
6. Tighten fasteners securely.
