INSTALLATION MANUAL
90-864198020 Page 43 of 77
11. Reattach nut and washer to cable barrel stud. Tighten until they contact. Tighten
securely, but DO NOT overtighten.
50947
a
b
c
d
e
f
g

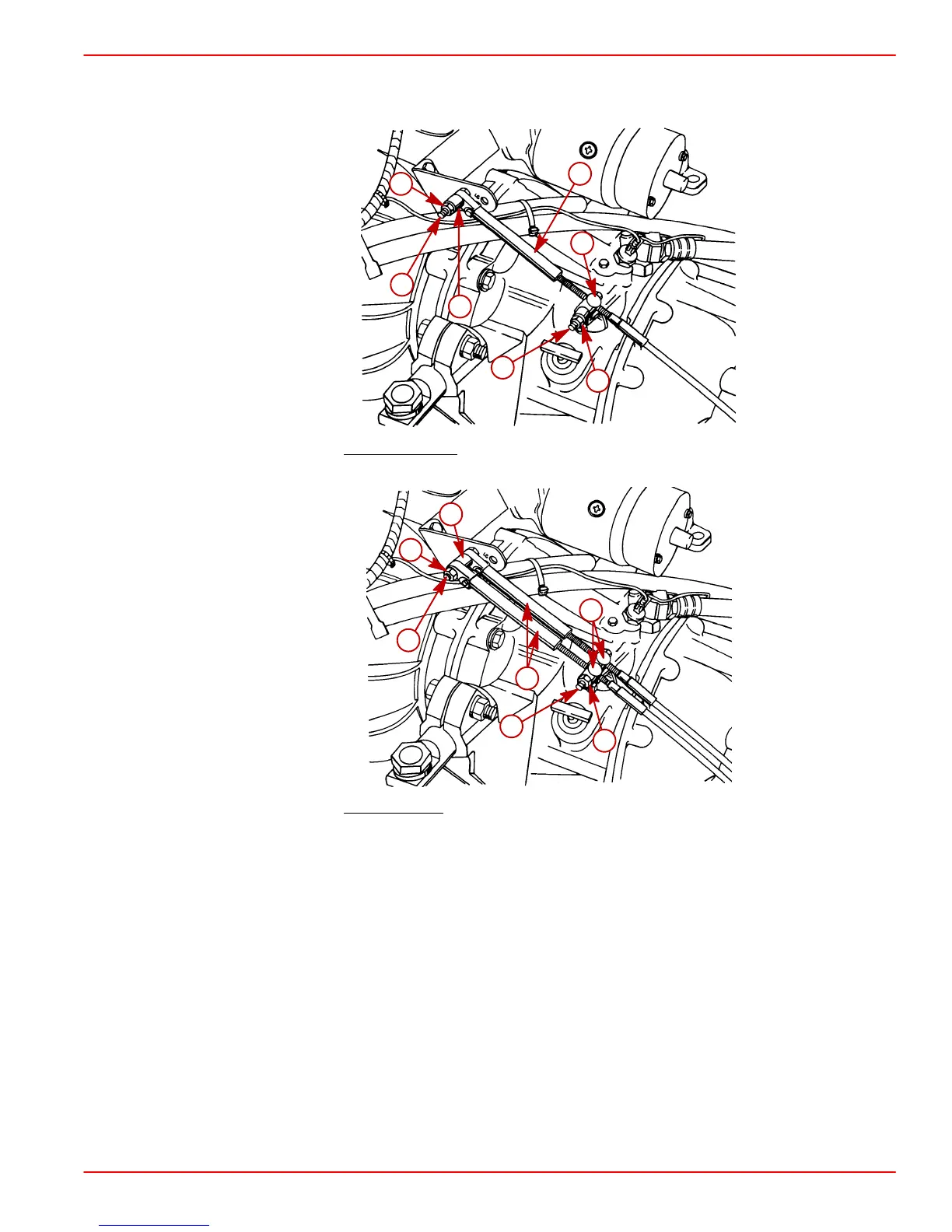

Rear Entry Single Station Installation In-Line And Remote V-Drive
50947
a
b
c
d
e
f
g
Rear Entry Dual Station Installation In-Line And V-Drive
a-Cable End Guide
b-Cable Barrel
c-Cable Barrel Stud
d-Elastic Stop Nut and Washer
e-Spacer
f-Cable End Guide Stud
g-Elastic Stop Nut and Washer
