INSTALLATION MANUAL
Page 44 of 77 90-864198020
50946
a
b
c
d
e
f
g

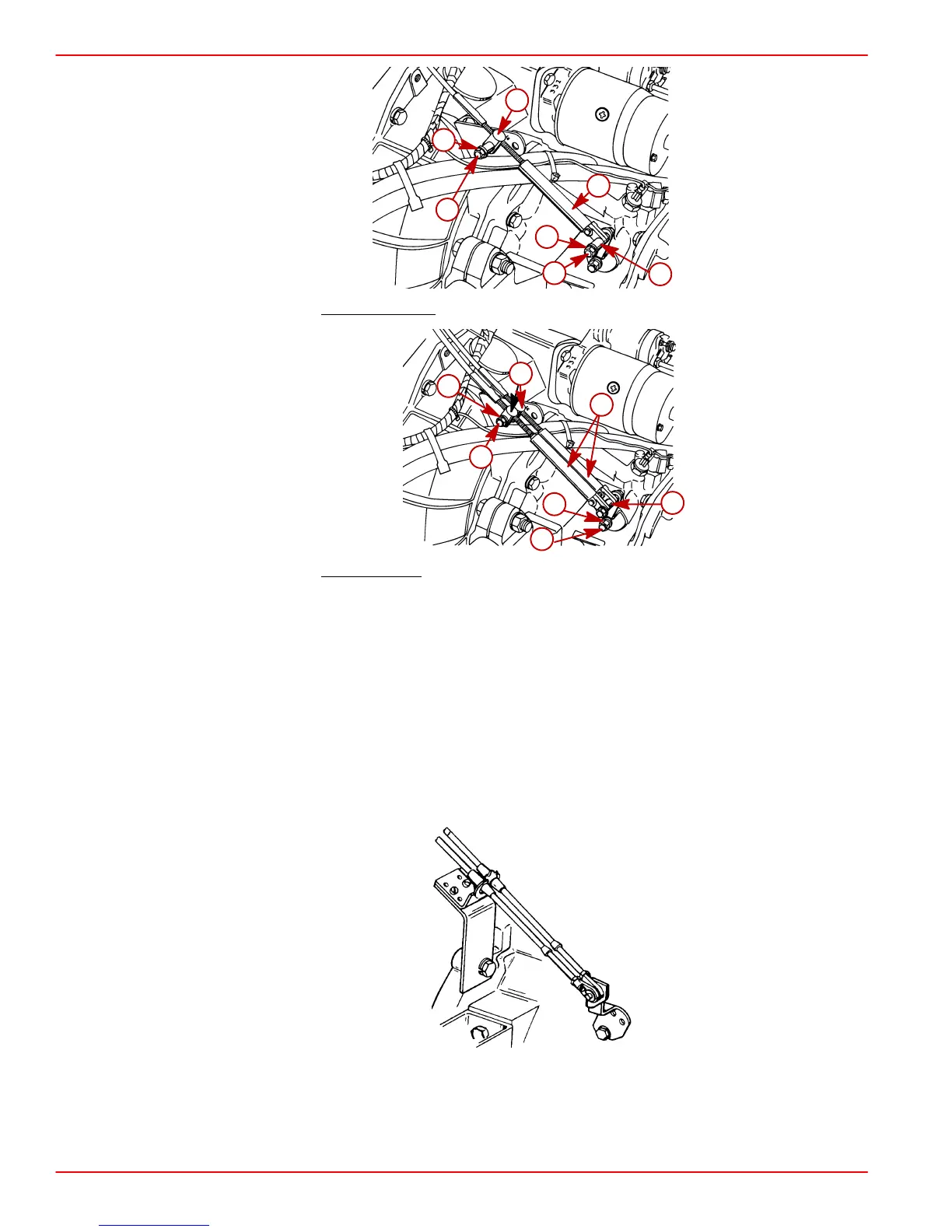

Front Entry Single Station Installation In-Line And V-Drive
50946
a
b
c
d
e
f
g
Front Entry Dual Station Installation In-Line And V-Drive
a-Cable End Guide
b-Cable Barrel
c-Cable Barrel Stud
d-Elastic Stop Nut and Washer
e-Spacer
f-Cable End Guide Stud
g-Elastic Stop Nut and Washer
NOTE: For models equipped with a dual station shift bracket such as the one shown, refer
to shift cable manufacturer’s instructions for adjusting the cable. Shift lever must be posi-
tioned as stated in the preceding steps.
22457
Dual Station Shift Bracket (Not Quicksilver)
To Next Page
