INSTALLATION MANUAL
90-864198020 Page 75 of 77

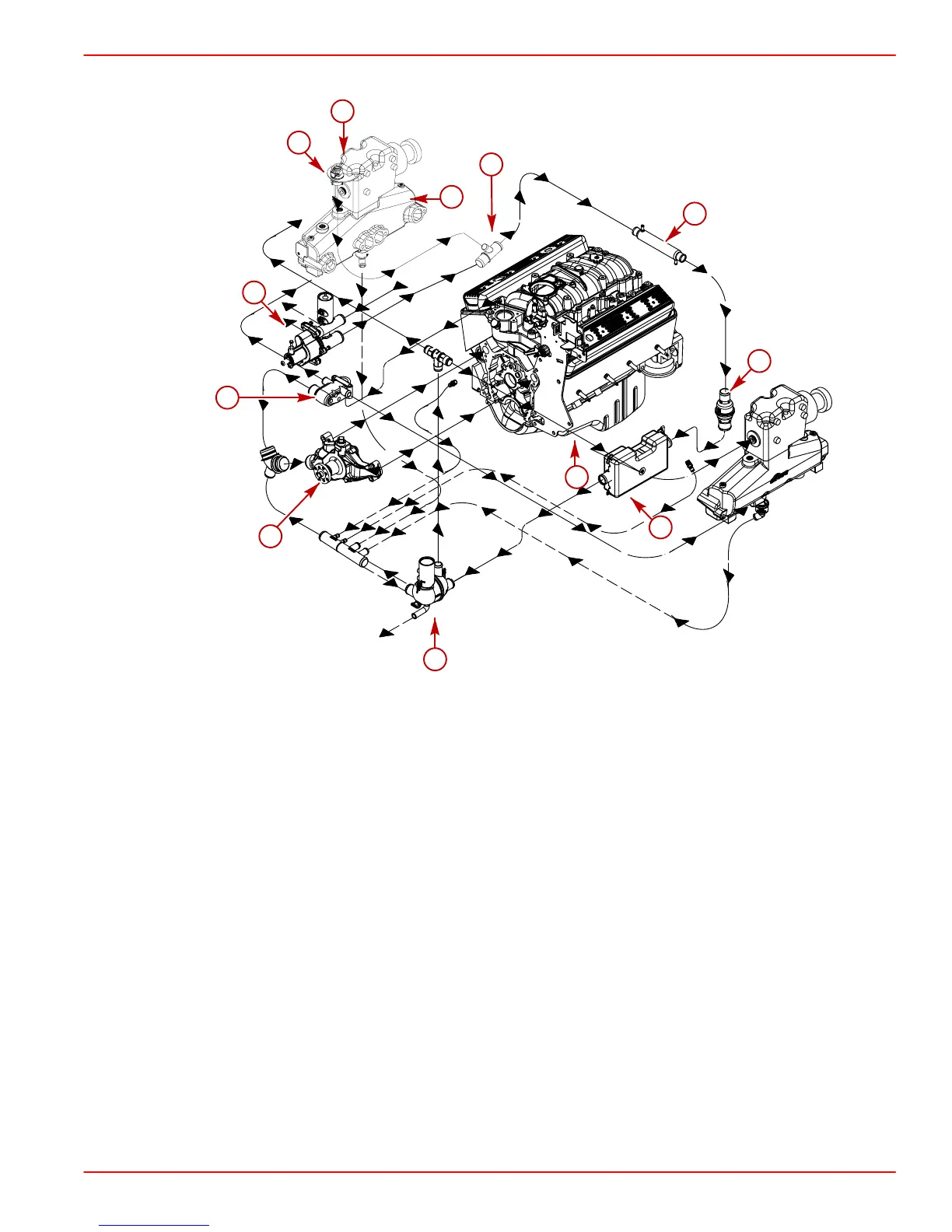

Seawater Cooled Models
78491
a
b
c
f
g
h
i
j
e
m
k
l
a-Exhaust Elbow
b-Exhaust Manifold
c-Seawater Pump (Not On Alpha Seawater Cooled Models)
d-Heat Exchanger (Closed Cooled Models Only)
e-Water Circulating Pump
f-Thermostat Housing
g-Water Distribution Housing
h-Cool Fuel Box
i-Check Valve
j-Transmission Cooler
k-Flush Fitting (Inboard Models)
l-Flush Connection (Inboard Models)
m-Shaft Log Seal Connection Point
To Next Page
